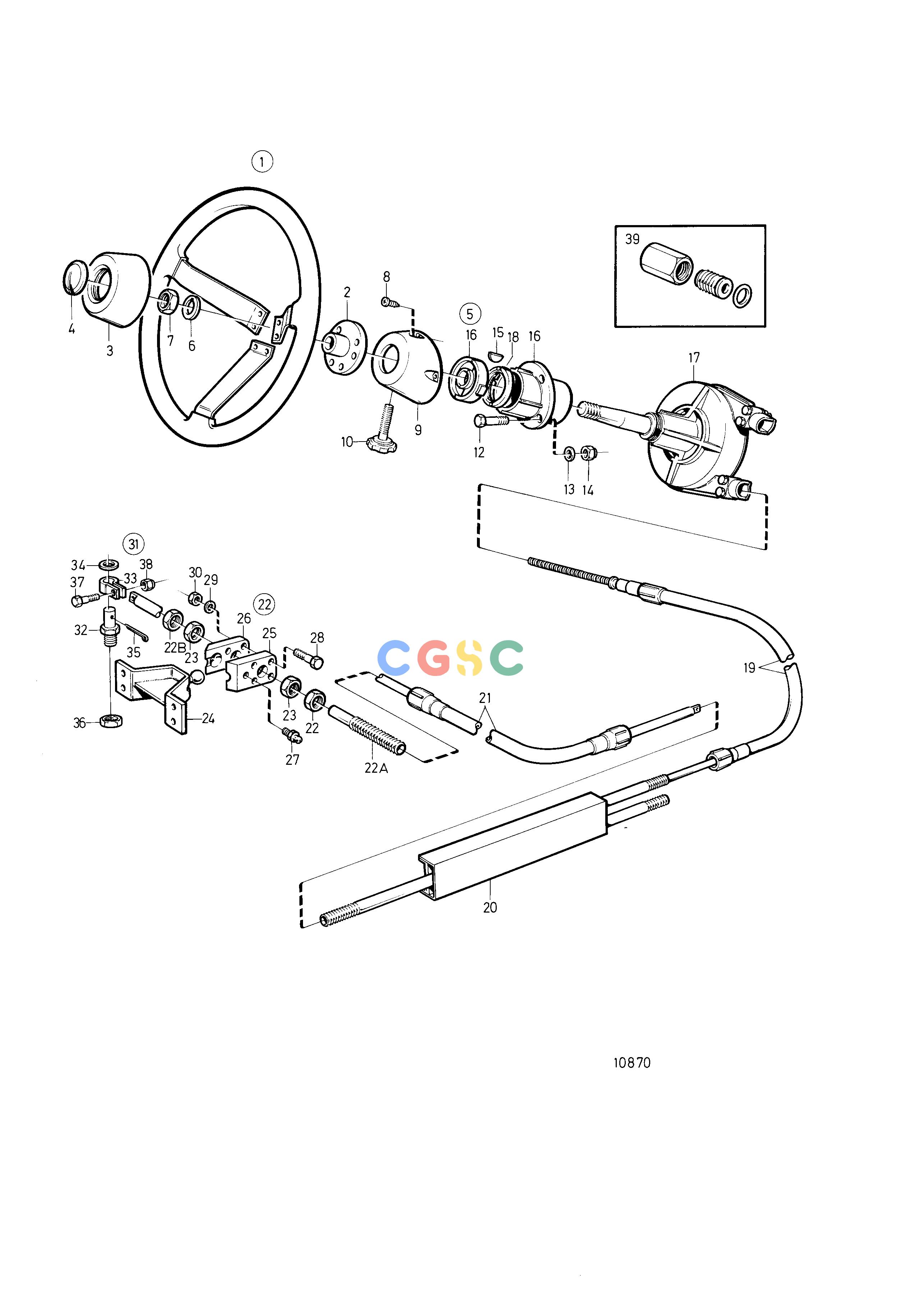

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BSteering SystemSteering System STS 330EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850936
|
[1] |
Steering wheel
|
|
| 2. |
|
|
|
|
| 3. |
828943
|
[1] |
Steering wheel cushi
|
|
| 4. |
850938
|
[1] |
Emblem
|
|
| 5. |
853182
|
[1] |
Mounting kit
|
90° white
|
| 5. |
1140023
|
[1] |
Mounting kit
|
90° black
|
| 5. |
853183
|
[1] |
Mounting kit
|
70° white
|
| 5. |
1140024
|
[1] |
Mounting kit
|
70° black
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
853181
|
[1] |
Steering gear
|
|
| 18. |
|
|
|
|
| 19. |
828886
|
[1] |
Steering cable
|
L=2000mm
|
| 19. |
828887
|
[1] |
Steering cable
|
L=2250mm
|
| 19. |
828888
|
[1] |
Steering cable
|
L=2500mm
|
| 19. |
828889
|
[1] |
Steering cable
|
L=2750mm
|
| 19. |
853185
|
[1] |
Steering cable
|
L=3000mm
|
| 19. |
853186
|
[1] |
Steering cable
|
L=3250mm
|
| 19. |
853187
|
[1] |
Steering cable
|
L=3500mm
|
| 19. |
853188
|
[1] |
Steering cable
|
L=3750mm
|
| 19. |
853189
|
[1] |
Steering cable
|
L=4000mm
|
| 19. |
853190
|
[1] |
Steering cable
|
L=4250mm
|
| 19. |
853191
|
[1] |
Steering cable
|
L=4500mm
|
| 19. |
853192
|
[1] |
Steering cable
|
L=4750mm
|
| 19. |
853193
|
[1] |
Steering cable
|
L=5000mm
|
| 19. |
828863
|
[1] |
Steering cable
|
L=5250mm
|
| 19. |
853194
|
[1] |
Steering cable
|
L=5500mm
|
| 19. |
828864
|
[1] |
Steering cable
|
L=5750mm
|
| 19. |
853195
|
[1] |
Steering cable
|
L=6000mm
|
| 19. |
828865
|
[1] |
Steering cable
|
L=6250mm
|
| 19. |
853196
|
[1] |
Steering cable
|
L=6500mm
|
| 19. |
828866
|
[1] |
Steering cable
|
L=6750mm
|
| 19. |
853197
|
[1] |
Steering cable
|
L=7000mm
|
| 19. |
853286
|
[1] |
Steering cable
|
L=7500mm
|
| 19. |
853287
|
[1] |
Steering cable
|
L=8000mm
|
| 19. |
853288
|
[1] |
Steering cable
|
L=8500mm
|
| 19. |
853289
|
[1] |
Steering cable
|
L=9000mm
|
| 19. |
828867
|
[1] |
Steering cable
|
L=9750mm
|
| 19. |
828868
|
[1] |
Steering cable
|
L=10500mm
|
| 19. |
828869
|
[1] |
Steering cable
|
L=11250mm
|
| 19. |
828874
|
[1] |
Steering cable
|
L=12000mm
|
| 20. |
853291
|
[1] |
Ds unit
|
|
| 21. |
853387
|
[1] |
Anode
|
|
| 22. |
853290
|
[1] |
Stern attachment
|
|
| |
850771
|
[1] |
Anchorage
|
|
| |
850778
|
[2] |
Nut
|
|
| 23. |
853306
|
[2] |
Nut
|
|
| 24. |
851093
|
[1] |
Bracket
|
|
| 25. |
828857
|
[1] |
Anchorage
|
|
| 26. |
828854
|
[1] |
Anchorage
|
|
| 27. |
951739
|
[1] |
Lubricating nipple
|
|
| 28. |
940101
|
[2] |
Hexagon screw
|
|
| 29. |
941906
|
[2] |
Spring washer
|
|
| 30. |
963105
|
[2] |
Lock nut
|
|
| 31. |
828924
|
[1] |
Ball joint kit
|
|
| 32. |
|
|
|
|
| 33. |
851116
|
[1] |
Bracket
|
|
| 34. |
955897
|
[1] |
Washer
|
|
| 35. |
967707
|
[1] |
Split pin
|
|
| 36. |
|
|
|
|
| 37. |
851118
|
[1] |
Shoulder screw
|
|
| 38. |
966171
|
[1] |
Lock nut
|
|
| 39. |
853214
|
[1] |
Adapter
|
For foreign steering cables.
|
