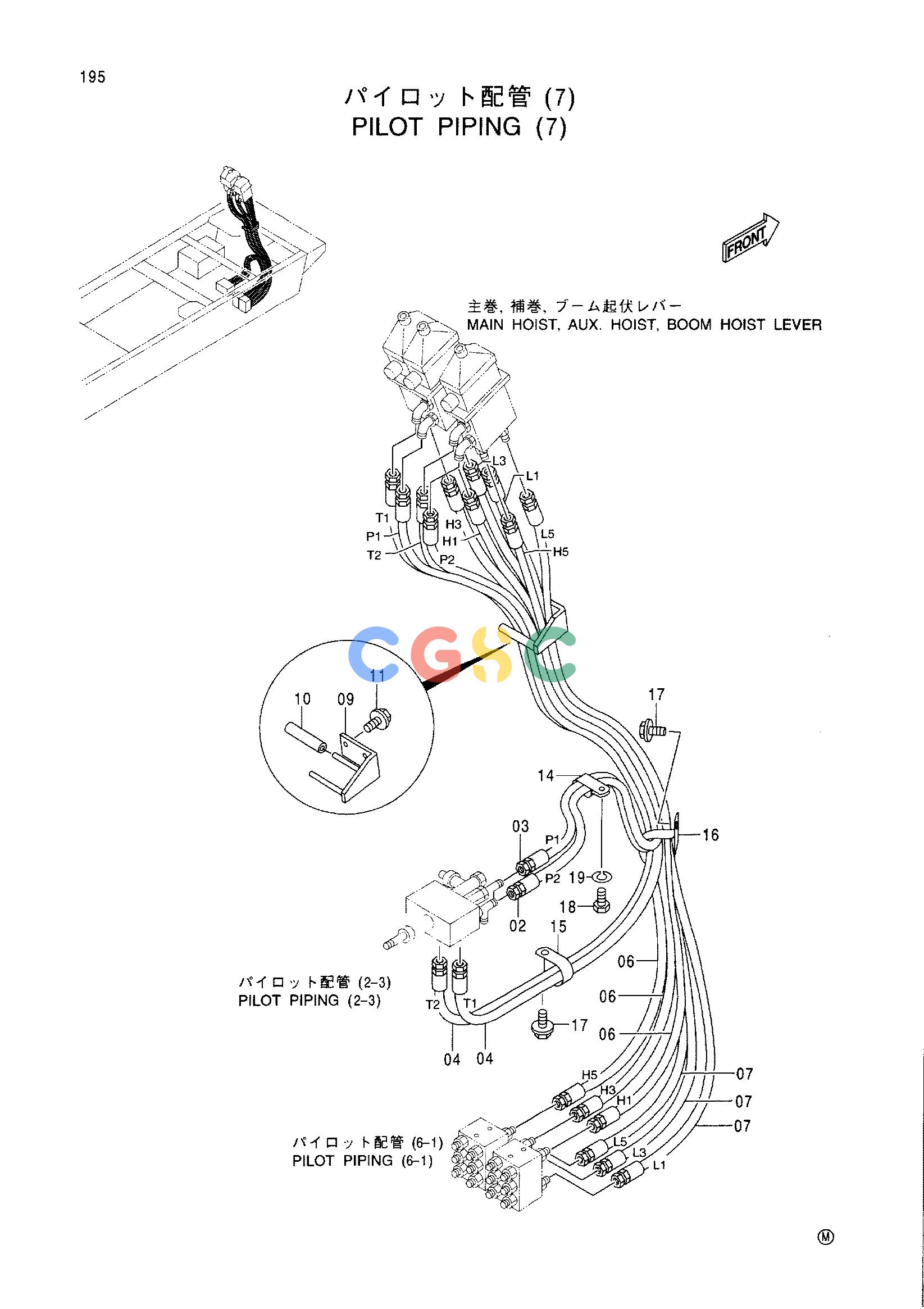

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 02. | 4319152 | [1] | HOSE (P2) | |
| 03. | 4319153 | [1] | HOSE (P1) | |
| 04. | 4319154 | [2] | HOSE (T1,T2) | |
| 06. | 4319150 | [3] | HOSE (H1,H3,H5) | |
| 07. | 4319151 | [3] | HOSE (L1,L3,L5) | |
| 09. | 9742971 | [1] | SUPPORT | |
| 10. | 4317431 | [2] | PIPE | |
| 11. | J010614 | [2] | BOLT;SEMS | |
| 14. | 4190292 | [1] | CLIP | |
| 15. | 4190264 | [1] | CLIP | |
| 16. | 4204136 | [1] | CLIP | |
| 17. | J011020 | [2] | BOLT;SEMS | |
| 18. | J901020 | [1] | BOLT | |
| 19. | A590910 | [1] | WASHER;SPRING |
