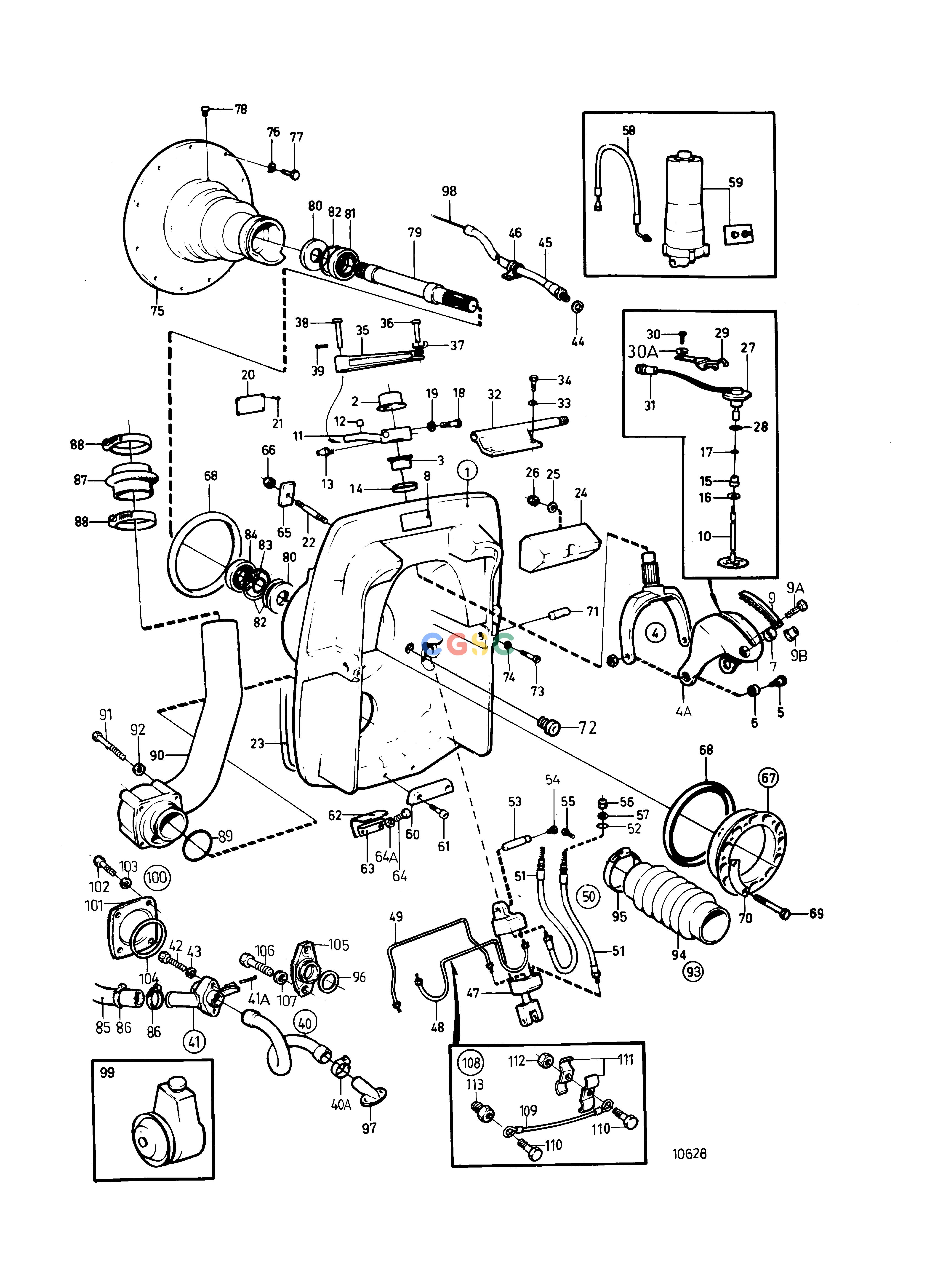

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BTransmissionsConnecting Components Drive Unit SP-A2, DP-A2EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
283 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
876150
|
[1] |
Shield kit
|
|
| 2. |
872363
|
[1] |
Bushing
|
(853864)
|
| 3. |
872362
|
[1] |
Bushing
|
(853863)
|
| 4. |
854066
|
[1] |
Steering yoke
|
|
| 4A. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
853048
|
[1] |
Bushing
|
|
| 8. |
852827
|
[1] |
Sign
|
|
| 9. |
872812
|
[1] |
Ratchet
|
|
| 9A. |
853759
|
[1] |
Screw
|
|
| 9B. |
853760
|
[1] |
Rivet nut
|
|
| 10. |
852984
|
[1] |
Driving wheel
|
|
| 11. |
853017
|
[1] |
Steering arm
|
|
| 12. |
949368
|
[1] |
Bushing
|
|
| 13. |
914169
|
[1] |
Lubricating nipple
|
|
| 14. |
872290
|
[1] |
Sealing kit
|
|
| 15. |
851430
|
[1] |
Bushing
|
|
| 16. |
966207
|
[1] |
Sealing ring
|
|
| 17. |
925050
|
[1] |
O-ring
|
|
| 18. |
959241
|
[1] |
Hex. socket screw
|
|
| 19. |
942336
|
[1] |
Spring washer
|
|
| 20. |
853706
|
[1] |
Type plate
|
|
| 21. |
804269
|
[2] |
Drive screw
|
|
| 22. |
853982
|
[6] |
Stud
|
SN-1101591651
|
| 22. |
853595
|
[6] |
Stud
|
Note, SN 1101591652-
|
| 23. |
852868
|
[1] |
Sealing strip
|
|
| 24. |
854133
|
[1] |
Rubber cushion
|
|
| 25. |
960148
|
[2] |
Washer
|
|
| 26. |
971089
|
[2] |
Lock nut
|
|
| 27. |
828726
|
[1] |
Sensor
|
|
| 28. |
955991
|
[1] |
O-ring
|
|
| 29. |
853039
|
[1] |
Bracket
|
|
| 30. |
940199
|
[1] |
Hexagon screw
|
|
| 30A. |
941907
|
[1] |
Spring washer
|
|
| 31. |
|
|
|
See group 3
|
| 32. |
852775
|
[1] |
Cable attachment
|
|
| 33. |
941908
|
[2] |
Spring washer
|
|
| 34. |
970950
|
[2] |
Hexagon screw
|
|
| 35. |
852786
|
[1] |
Link rod
|
|
| 36. |
913158
|
[1] |
Clevis pin
|
|
| 37. |
853160
|
[1] |
Lock washer
|
|
| 38. |
852788
|
[1] |
Bolt
|
|
| 39. |
907856
|
[1] |
Split pin
|
|
| 40. |
875847
|
[1] |
Hose kit
|
|
| 40A. |
853548
|
[2] |
Hose clamp
|
|
| 41. |
853517
|
[1] |
Anode kit
|
|
| 41A. |
967707
|
[1] |
Split pin
|
|
| 42. |
955515
|
[2] |
Hexagon screw
|
|
| 43. |
941906
|
[2] |
Spring washer
|
|
| 44. |
897745
|
[1] |
Gasket
|
|
| 45. |
839091
|
[1] |
Protecting hose
|
|
| 46. |
952635
|
[1] |
Clamp
|
|
| 47. |
853439
|
[2] |
Hydraulic cylinder
|
Repl by 854610
|
| 47. |
854610
|
[2] |
Hydraulic cylinder
|
|
| 48. |
852830
|
[1] |
Tube
|
|
| 49. |
852832
|
[1] |
Tube
|
|
| 50. |
854752
|
[1] |
Set
|
SN 1101592794-
|
| 51. |
854710
|
[1] |
Hydraulic hose
|
Front
|
| 51. |
854711
|
[1] |
Hydraulic hose
|
Rear
|
| 52. |
925053
|
[4] |
O-ring
|
|
| 53. |
852748
|
[2] |
Pin
|
|
| 54. |
852879
|
[1] |
Plug
|
|
| 55. |
853060
|
[2] |
Flange screw
|
|
| 56. |
853100
|
[2] |
Lock nut
|
|
| 57. |
853059
|
[2] |
Washer
|
|
| 58. |
852839
|
[2] |
Hose
|
|
| 59. |
7745910_063
|
|
hydraulic pump and trim instrument with installation comps
|
|
| 59. |
|
|
|
|
| 60. |
852835
|
[1] |
Zinc electrode
|
|
| 61. |
946541
|
[2] |
Hex. socket screw
|
|
| 62. |
852877
|
[1] |
Non-return valve
|
|
| 63. |
852878
|
[1] |
Attaching plate
|
|
| 64. |
963545
|
[2] |
Hexagon screw
|
|
| 64A. |
941670
|
[2] |
Washer
|
|
| 65. |
852866
|
[6] |
Washer
|
|
| 66. |
963108
|
[6] |
Lock nut
|
|
| 67. |
854317
|
[1] |
Clamping ring kit
|
|
| 68. |
813967
|
[2] |
Rubber ring
|
|
| 69. |
191844
|
[6] |
Hexagon screw
|
|
| 70. |
806624
|
[3] |
Striker plate
|
|
| 71. |
853175
|
[2] |
Pivot pin
|
|
| 72. |
853215
|
[1] |
Plug
|
|
| 73. |
963699
|
[2] |
Hex. socket screw
|
|
| 74. |
941670
|
[2] |
Washer
|
|
| 75. |
844519
|
[1] |
Flywheel housing
|
|
| 76. |
941908
|
[1] |
Spring washer
|
Early type
|
| 77. |
946752
|
[10] |
Flange screw
|
Late type
|
| 78. |
804262
|
[1] |
Plug
|
|
| 79. |
853809
|
[1] |
Spindle
|
|
| 80. |
958860
|
[2] |
Sealing ring
|
|
| 81. |
11013
|
[1] |
Ball bearing
|
|
| 82. |
914533
|
[3] |
Snap ring
|
|
| 83. |
914462
|
[1] |
Snap ring
|
|
| 84. |
181105
|
[1] |
Ball bearing
|
|
| 85. |
|
|
|
See group 2B
|
| 86. |
22274885
|
[2] |
Hose clamp
|
|
| 87. |
858955
|
[1] |
Exhaust hose
|
See group 2B
|
| 88. |
943483
|
[2] |
Hose clamp
|
See group 2B
|
| 89. |
925260
|
[1] |
O-ring
|
|
| 90. |
853718
|
[1] |
Exhaust pipe
|
|
| 91. |
955328
|
[4] |
Hexagon screw
|
|
| 92. |
960148
|
[4] |
Washer
|
|
| 93. |
875848
|
[1] |
Bellows kit
|
|
| 94. |
|
|
|
|
| 95. |
961675
|
[1] |
Hose clamp
|
|
| 96. |
925066
|
[1] |
O-ring
|
|
| 97. |
854031
|
[1] |
Hose connection
|
See group 4C
|
| 98. |
|
|
|
See group 9
|
| 99. |
|
|
|
See group 6
|
| 100. |
1140003
|
[1] |
Cover plate
|
Alt
|
| 101. |
854584
|
[1] |
Seal flange
|
(838934)
|
| 102. |
955315
|
[4] |
Hexagon screw
|
|
| 103. |
941908
|
[4] |
Spring washer
|
|
| 104. |
925260
|
[1] |
O-ring
|
|
| 105. |
858061
|
[1] |
Seal flange
|
Alt
|
| 106. |
955515
|
[2] |
Hexagon screw
|
|
| 107. |
941906
|
[2] |
Spring washer
|
|
| 108. |
854625
|
[1] |
Set
|
|
| 109. |
854627
|
[1] |
Earth cable
|
|
| 110. |
963545
|
[2] |
Hexagon screw
|
|
| 111. |
854628
|
[2] |
Clamp
|
|
| 112. |
944456
|
[1] |
Hexagon nut
|
|
| 113. |
872207
|
[1] |
Nipple
|
|
