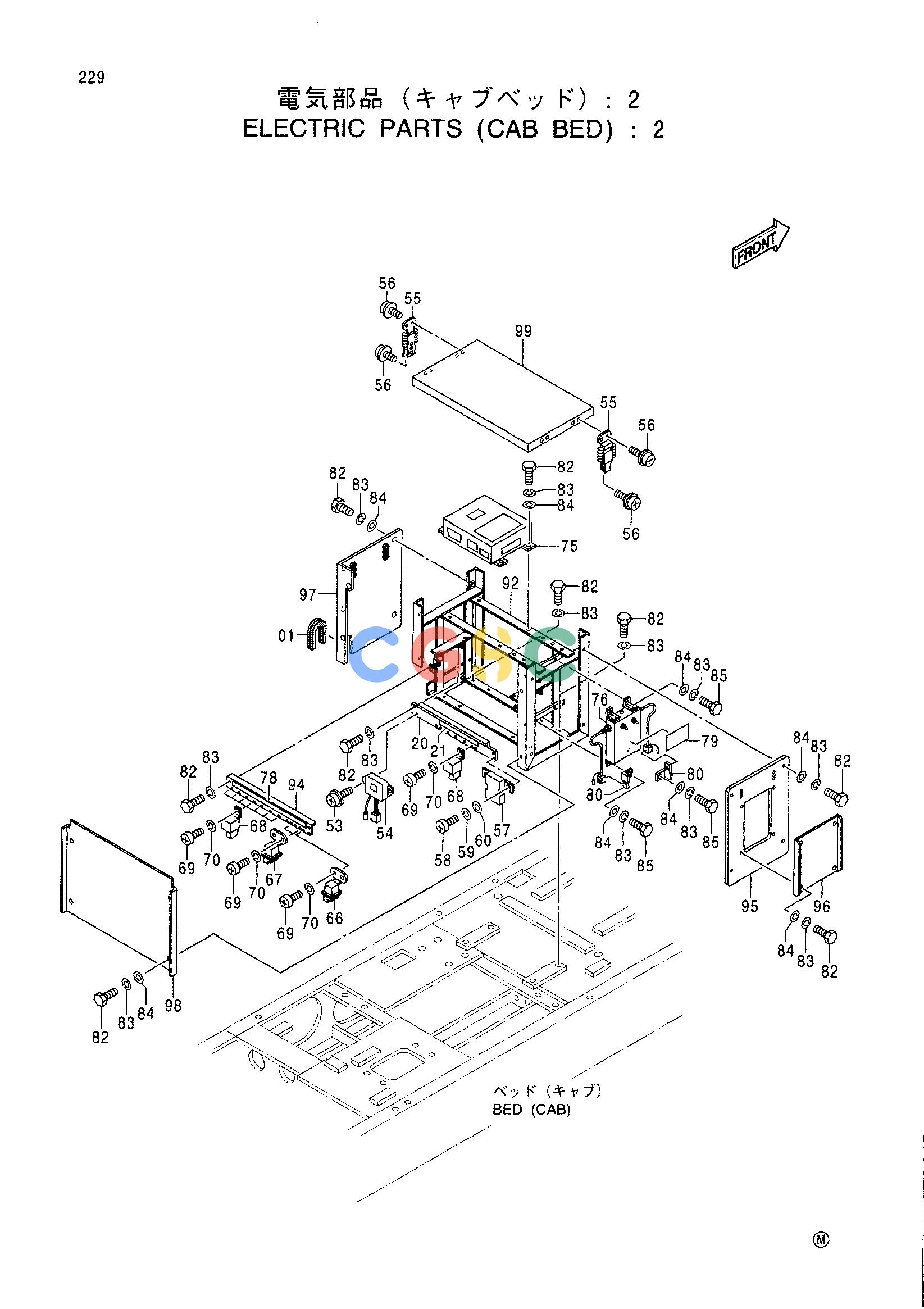

日立零件查询（CX1100）ELECTRIC PARTS (CAB BED):2 Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
525 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 4404976 | [1] | RUBBER | |
| 20. | 9752650 | [1] | BRACKET | |
| 21. | 3085878 | [1] | NAME-PLATE | |
| 53. | J450612 | [2] | SCREW;SEMS | |
| 54. | 4185885 | [1] | RELAY | |
| 55. | 4339649 | [4] | CATCH | |
| 56. | J460412 | [20] | SCREW;SEMS | |
| 57. | 4210118 | [1] | TIMER | |
| 58. | M430610 | [2] | SCREW | |
| 59. | A590906 | [2] | WASHER;SPRING | |
| 60. | A590106 | [2] | WASHER;PLANE | |
| 66. | 4210117 | [1] | RELAY | |
| 67. | 4210117 | [2] | RELAY | |
| 68. | 4251588 | [8] | RELAY | |
| 69. | M430610 | [14] | SCREW | |
| 70. | A590906 | [14] | WASHER;SPRING | |
| 75. | 9163319 | [1] | CONTROLLER;NEGA | |
| 76. | 4400143 | [1] | RESISTOR | |
| 78. | 3085886 | [1] | NAME-PLATE | |
| 79. | 4393748 | [1] | NAME-PLATE | |
| 80. | 4257159 | [2] | BRACKET | |
| 82. | J901020 | [28] | BOLT | |
| 83. | A590910 | [35] | WASHER;SPRING | |
| 84. | A590110 | [24] | WASHER;PLANE | |
| 85. | J901014 | [6] | BOLT | |
| 92. | 7036509 | [1] | BRACKET | |
| 94. | 9752649 | [1] | BRACKET | |
| 95. | 8076256 | [1] | COVER(1) | |
| 96. | 3085904 | [1] | COVER(2) | |
| 97. | 8076257 | [1] | COVER(3) | |
| 98. | 3085905 | [1] | COVER(4) | |
| 99. | 8076258 | [1] | COVER(5) | |
