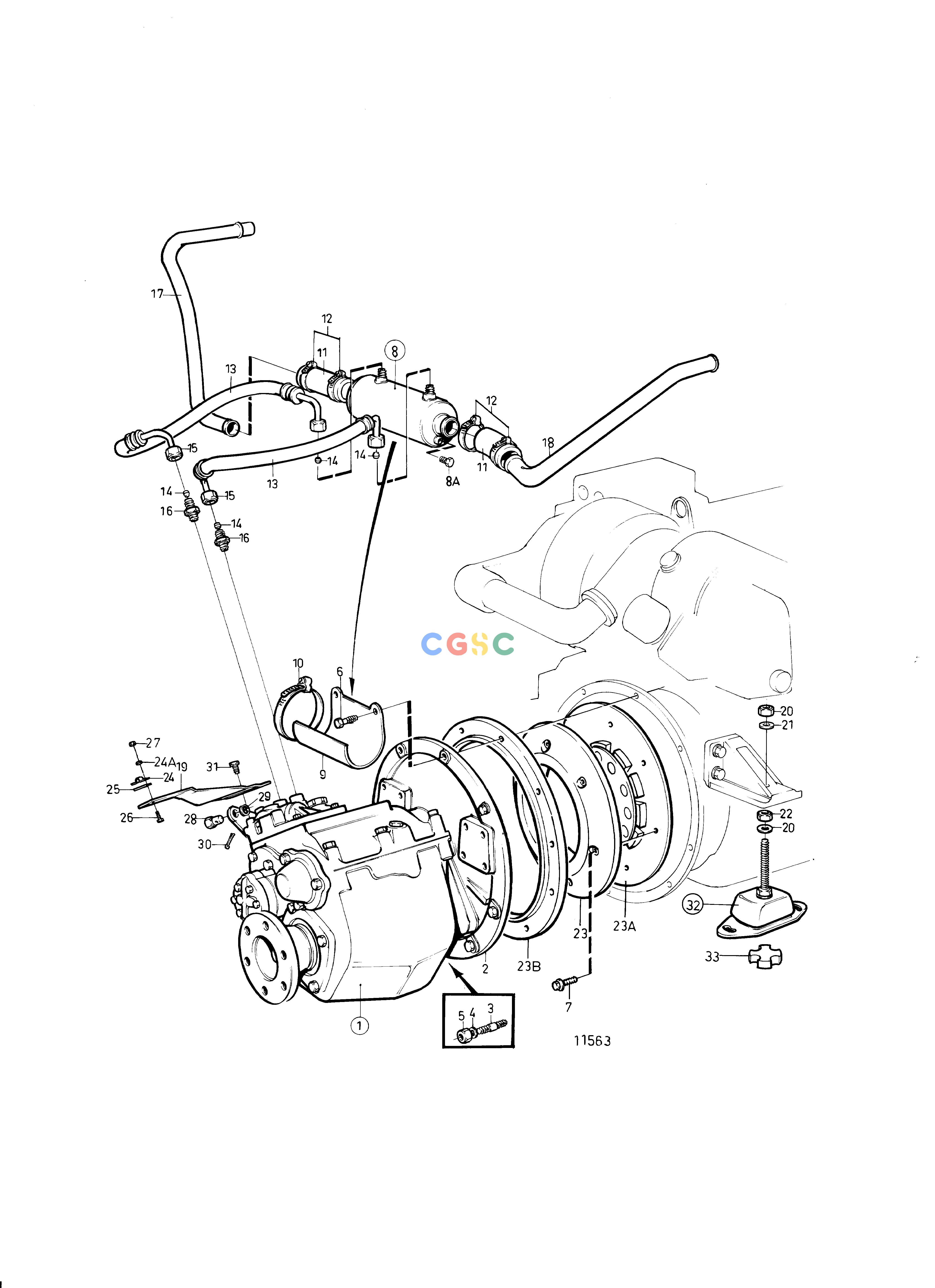

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BTransmissionsConnecting Components, Reverse Gear PRM 302, 402EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
211 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Ratio 4:1
|
| 2. |
|
|
|
PRM
|
| 3. |
924083
|
[5] |
Stud
|
|
| 4. |
960148
|
[5] |
Washer
|
|
| 5. |
971071
|
[5] |
Hexagon nut
|
|
| 6. |
965186
|
[8] |
Flange screw
|
|
| 7. |
941761
|
[6] |
Hex. socket screw
|
|
| 8. |
855756
|
[1] |
Oil cooler
|
|
| 8A. |
180759
|
[1] |
Plug
|
|
| 9. |
858618
|
[1] |
Bracket
|
|
| 10. |
961674
|
[2] |
Hose clamp
|
|
| 11. |
949315
|
[2] |
Rubber hose
|
L=60mm
|
| 12. |
961669
|
[4] |
Hose clamp
|
|
| 13. |
841171
|
[2] |
Hose assembly
|
|
| 14. |
956970
|
[4] |
Ferrule
|
|
| 15. |
956984
|
[4] |
Fitting nut
|
|
| 16. |
941750
|
[2] |
Nipple
|
|
| 17. |
859193
|
[1] |
Coolant pipe
|
|
| 18. |
858616
|
[1] |
Coolant pipe
|
|
| 19. |
858366
|
[1] |
Bracket
|
|
| 20. |
|
|
|
See group 2A
|
| 21. |
|
|
|
See group 2A
|
| 22. |
|
|
|
See group 2A
|
| 23. |
859957
|
[1] |
Ring gear
|
|
| 23A. |
854506
|
[1] |
Vibration damper
|
|
| 23B. |
854492
|
[1] |
Spacer ring
|
|
| 24. |
21471054
|
[1] |
Bracket
|
|
| 24A. |
940090
|
[2] |
Washer
|
|
| 25. |
819068
|
[1] |
Washer
|
|
| 26. |
955246
|
[2] |
Hexagon screw
|
|
| 27. |
946577
|
[2] |
Lock nut
|
|
| 28. |
3841580
|
[1] |
Cube
|
|
| 29. |
955892
|
[2] |
Washer
|
|
| 30. |
17276
|
[1] |
Split pin
|
|
| 31. |
|
|
|
|
| 32. |
|
|
|
See group 2A
|
| 33. |
|
|
|
See group 2A
|
