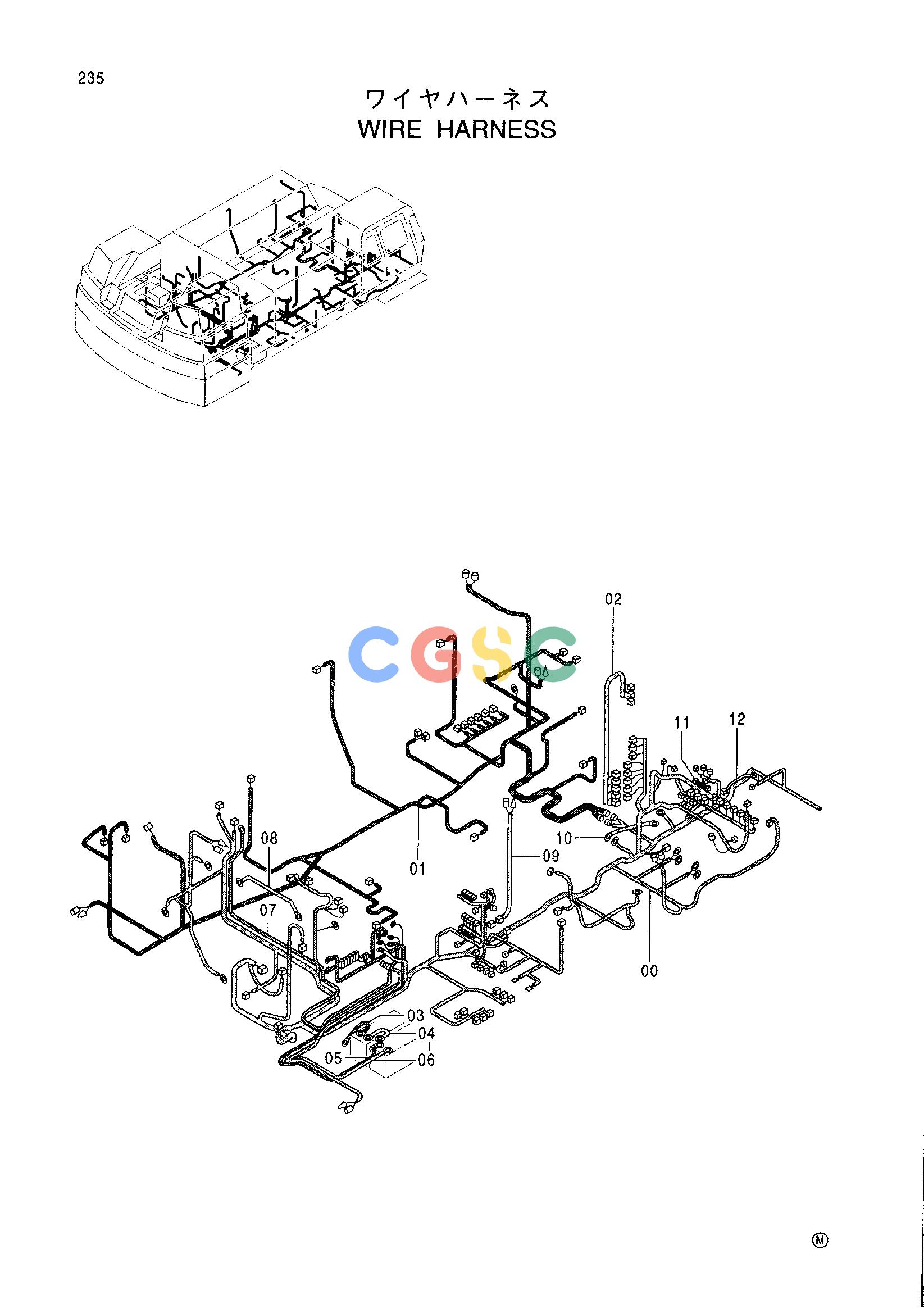

日立零件查询（CX1100）WIRE HARNESS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 0004224 | [1] | HARNESS;WIRE | I0004671 |
| 00. | 0004224 | [1] | HARNESS;WIRE | (RIGHT BED SIDE) |
| 00. | 0004224 | [1] | HARNESS;WIRE | (RIGHT BED SIDE) |
| 00. | 0004224 | [1] | HARNESS;WIRE | |
| 00. | 0004671 | [1] | HARNESS;WIRE | |
| 00. | 0004671 | [1] | HARNESS;WIRE | |
| 00. | 0004671 | [1] | HARNESS;WIRE | (RIGHT BED SIDE) |
| 01. | 1029508 | [1] | HARNESS;WIRE | (LEFT BED SIDE) |
| 02. | 2042615 | [1] | HARNESS;WIRE | I2047942(VOICE ALARM) |
| 02. | 2047942 | [1] | HARNESS;WIRE | (VOICE ALARM) |
| 03. | 4404940 | [1] | HARNESS;WIRE | (BATTERY EARTH) |
| 04. | 4384572 | [1] | HARNESS;WIRE | (BATTERY 〜 BATTERY) |
| 05. | 4404937 | [1] | HARNESS;WIRE | (12V) |
| 06. | 4404939 | [1] | HARNESS;WIRE | (BATTERY 〜 BATTERY RELAY) |
| 07. | 4404938 | [1] | HARNESS;WIRE | (BATTERY RELAY 〜 STARTER) |
| 08. | 4387540 | [1] | HARNESS;WIRE | (IH) |
| 09. | 4375471 | [1] | HARNESS;WIRE | (ARS) |
| 10. | 4343374 | [1] | HARNESS;WIRE | (CAB EARTH) |
| 11. | 4387368 | [1] | HARNESS;WIRE | (BOOM OVERHOIST) |
| 12. | 3087296 | [1] | HARNESS;WIRE | (PENDANT SWITCH) |
