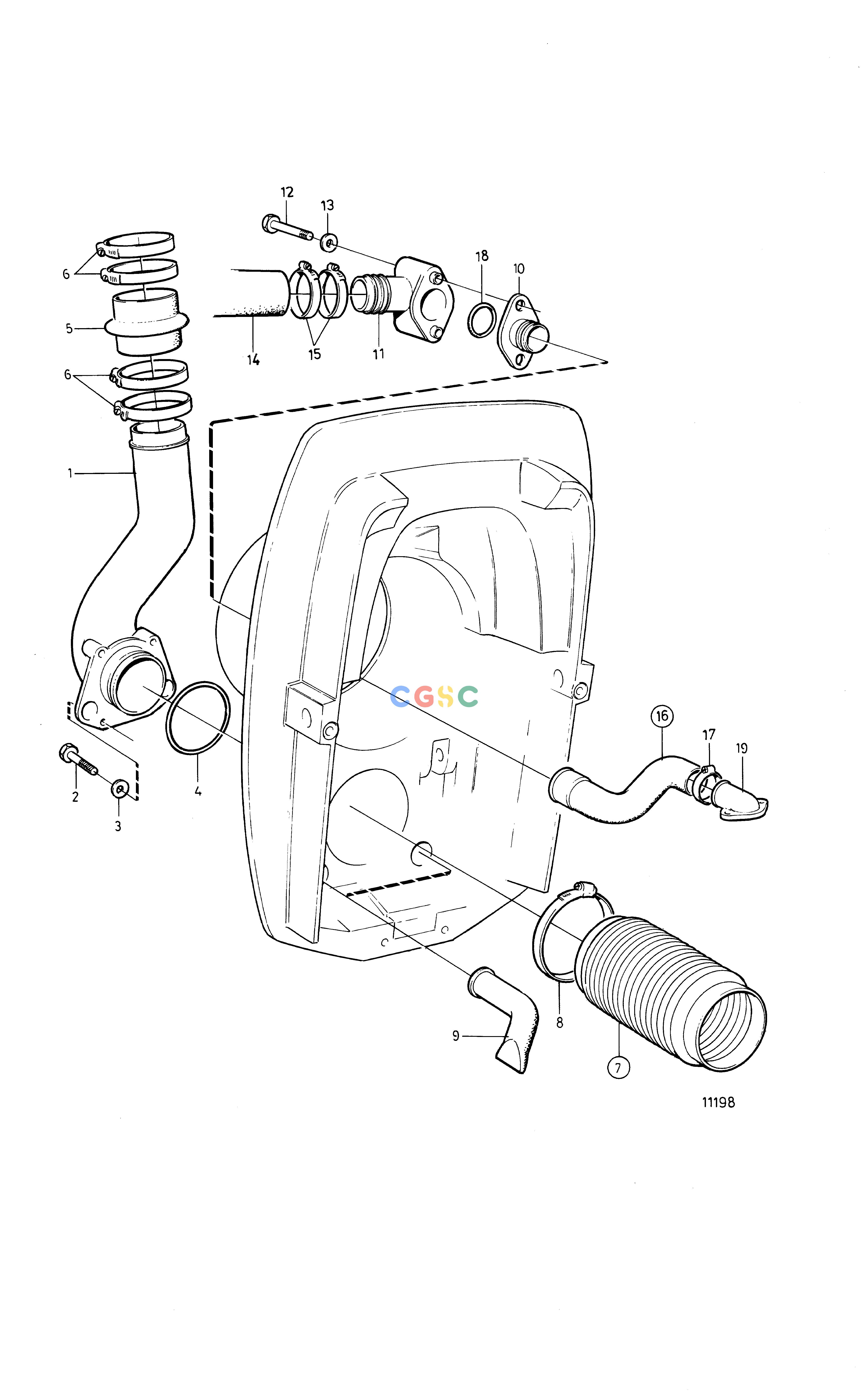

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BTransmissionsExhaust Pipe and Cooling Water PipeEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854692
|
[1] |
Exhaust pipe
|
|
| 1. |
873114
|
[1] |
Exhaust pipe
|
Green, see group 2B
|
| 2. |
970958
|
[4] |
Hexagon screw
|
|
| 3. |
960148
|
[4] |
Washer
|
|
| 4. |
925256
|
[1] |
O-ring
|
|
| 5. |
860396
|
[1] |
Exhaust hose
|
|
| 6. |
853012
|
[4] |
Hose clamp
|
|
| 7. |
875848
|
[1] |
Bellows kit
|
|
| 8. |
872531
|
[2] |
Hose clamp
|
|
| 9. |
843235
|
[2] |
Exhaust pipe
|
|
| 10. |
872334
|
[1] |
Nipple
|
|
| 11. |
872338
|
[1] |
Hose connection
|
|
| 12. |
955516
|
[2] |
Hexagon screw
|
|
| 13. |
955893
|
[2] |
Washer
|
|
| 14. |
|
|
|
Intake-sea water pump, See group 2B
|
| 15. |
961669
|
[2] |
Hose clamp
|
|
| 16. |
875847
|
[1] |
Hose kit
|
|
| 17. |
853548
|
[1] |
Hose clamp
|
|
| 18. |
925064
|
[1] |
O-ring
|
|
| 19. |
|
|
|
See group 4C
|
