700138121
|
[1] |
BOX
|
CAS

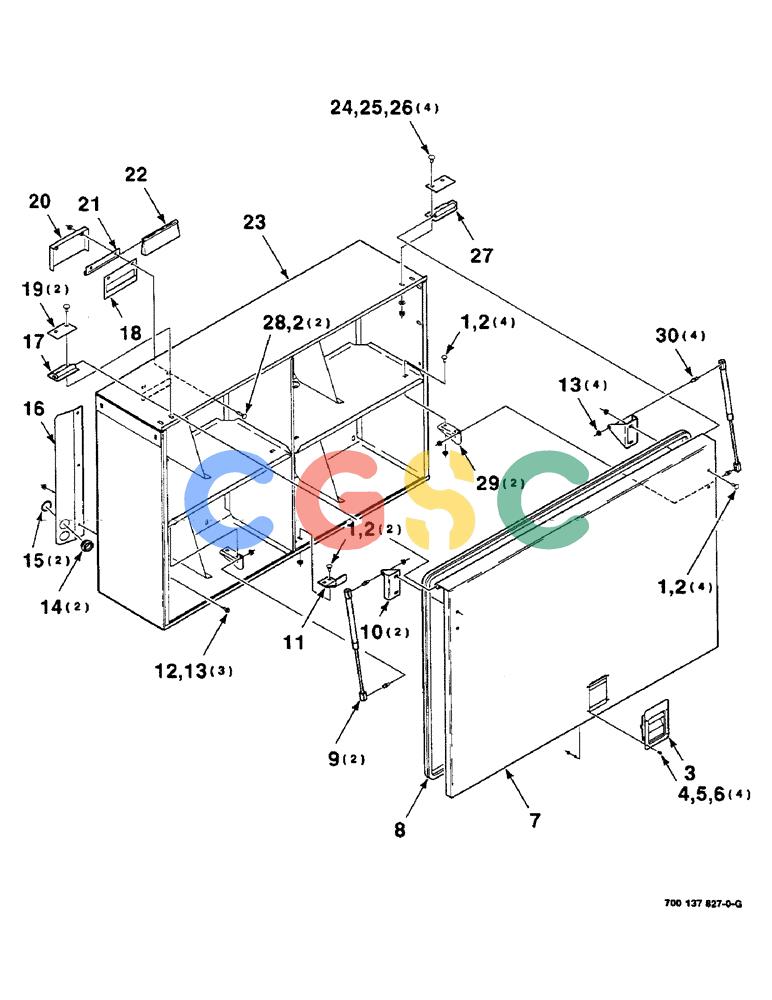

TWINE BOX ASSEMBLY COMPLETE
|
| 1. |
433-512
|
[10] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 2. |
232-5315
|
[12] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 3. |
700720034
|
[1] |
LATCH
|
CAS
- compartment
|
| 4. |
440-1106
|
[4] |
SCREW,Cross Pan Hd, #10-24 x 3/8"
|
CAS
GR60M Cross Pan Hd, #10-24 x 3/8" Superseded by part number: 72181877
|
| 5. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 6. |
225-14110
|
[4] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| 7. |
700138126
|
[1] |
DOOR
|
CAS
WA - rear, left
|
| 8. |
700720047
|
[1] |
SEAL
|
CAS
- door
|
| 9. |
700720032
|
[2] |
SPRING
|
CAS
GAS - spring, 600 N
|
| 10. |
700137887
|
[2] |
SUPPORT
|
CAS
- door
|
| 11. |
700137886
|
[1] |
CATCH
|
CAS
- latch
|
| 12. |
256873
|
[3] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 13. |
231-5145
|
[7] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 14. |
700137816
|
[2] |
GUIDE
|
CAS
- twine
|
| 15. |
100-11137
|
[2] |
SNAP RING,#137, Ext
|
CAS
Ring, Snap, #137, Ext Superseded by part number: 9671424
|
| 16. |
700137866
|
[1] |
SHIELD
|
CAS
- center, left
|
| 17. |
700137881
|
[1] |
PIN
|
CAS
WA - right
|
| 18. |
700137825
|
[1] |
PLATE ASSY.
|
CAS
WEAR PLATE - twine
|
| 19. |
700137824
|
[2] |
PLATE ASSY.
|
CAS
PLATE - upper hinge
|
| 20. |
700137822
|
[1] |
COVER
|
CAS
WA - twine
|
| 21. |
700720018
|
[1] |
SUPPORT
|
CAS
- brush
|
| 22. |
700716314
|
[1] |
BRUSH, COMMUTATOR
|
CAS
BRUSH
|
| 23. |
700138124
|
[1] |
BOX
|
CAS
WA - twine, left Superseded by part number: 700140298
|
| 24. |
433-612
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
Superseded by part number: 280430
|
| 25. |
496-11041
|
[4] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 26. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 27. |
700137880
|
[1] |
PIN
|
CAS
WA - left
|
| 28. |
433-520
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
|
CAS
5/16-18 X 1-1/4 RHSNB Superseded by part number: 280507
|
| 29. |
700137889
|
[2] |
SUPPORT
|
CAS
- mounting
|
| 30. |
700715279
|
[4] |
STUD
|
CAS
- 10 MM ball
|
