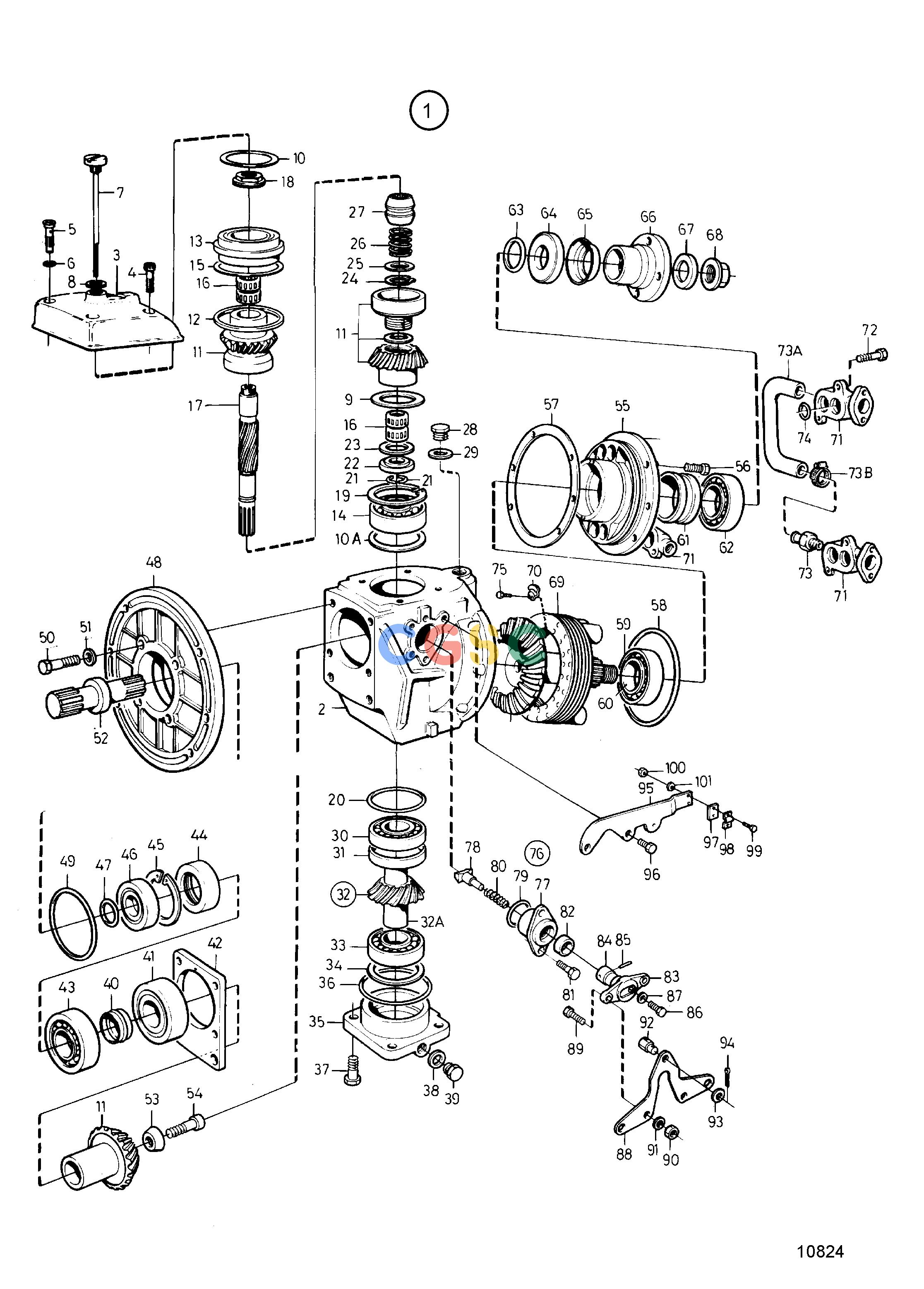

沃尔沃零件查询MD31A; TMD31B; TAMD31B; AD31BTransmissionsReverse Gear MS4B: 872208EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872208
|
[1] |
Transmission
|
Ratio 1,93:1
|
| 2. |
853374
|
[1] |
Gear housing
|
|
| 3. |
854676
|
[1] |
Gear housing cover
|
|
| 4. |
956585
|
[3] |
Hex. socket screw
|
|
| 5. |
814643
|
[1] |
Hollow screw
|
|
| 6. |
955989
|
[1] |
O-ring
|
|
| 7. |
839351
|
[1] |
Oil dipstick
|
|
| 8. |
955974
|
[1] |
O-ring
|
|
| 9. |
949071
|
[1] |
Shim
|
TH=0.1mm
|
| 9. |
949073
|
[1] |
Shim
|
TH=0.35mm
|
| 9. |
949072
|
[1] |
Shim
|
TH=0.15mm
|
| 10. |
941826
|
[1] |
Shim
|
TH=0,05mm
|
| 10. |
941827
|
[1] |
Shim
|
TH=0.2mm
|
| 10. |
948230
|
[1] |
Shim
|
TH=0.35mm
|
| 10A. |
943866
|
[1] |
Shim
|
TH=0.1mm
|
| 10. |
943867
|
[1] |
Shim
|
TH=0.2mm
|
| 10. |
967557
|
[1] |
Shim
|
TH=0.3mm
|
| 10. |
943868
|
[1] |
Shim
|
TH=0.4mm
|
| 11. |
854599
|
[1] |
Gear set
|
|
| 12. |
832669
|
[1] |
Gasket
|
|
| 13. |
854670
|
[1] |
Ball bearing
|
|
| 14. |
853542
|
[1] |
Ball bearing
|
|
| 15. |
943869
|
[1] |
Shim
|
TH=0,05mm
|
| 15. |
946179
|
[1] |
Shim
|
TH=0,10mm
|
| 15. |
943870
|
[1] |
Shim
|
TH=0.2mm
|
| 16. |
853819
|
[2] |
Needle bearing
|
|
| 17. |
853523
|
[1] |
Shaft
|
|
| 18. |
839332
|
[1] |
Nut
|
Alt TH=2,00mm
|
| 18. |
839333
|
[1] |
Nut
|
Alt TH=2,37mm
|
| 18. |
839334
|
[1] |
Nut
|
Alt TH=2,65mm
|
| 19. |
850433
|
[1] |
Retaining ring
|
|
| 20. |
944522
|
[1] |
Shim
|
TH=0,05mm
|
| 20. |
42981
|
[1] |
Shim
|
TH=0.1mm
|
| 20. |
42980
|
[1] |
Shim
|
TH=0.2mm
|
| 21. |
897312
|
[2] |
Lock ring
|
|
| 22. |
853528
|
[1] |
Spacer ring
|
|
| 23. |
852433
|
[1] |
Wear washer
|
|
| 24. |
951077
|
[1] |
Snap ring
|
|
| 25. |
26411
|
[1] |
Shim
|
|
| 26. |
813970
|
[1] |
Spring
|
|
| 27. |
854370
|
[1] |
Sliding sleeve
|
|
| 28. |
814179
|
[1] |
Plug
|
|
| 29. |
897682
|
[1] |
Gasket
|
|
| 30. |
181301
|
[1] |
Inner ring
|
|
| 31. |
181302
|
[1] |
Cup
|
|
| 32. |
853376
|
[1] |
Drive gear set
|
|
| 32A. |
|
|
|
|
| 33. |
184649
|
[1] |
Roller bearing
|
|
| 34. |
967352
|
[1] |
Shim
|
TH=0,05mm
|
| 34. |
941823
|
[1] |
Shim
|
TH=0,10mm
|
| 34. |
967351
|
[1] |
Shim
|
TH=0.15mm
|
| 34. |
941824
|
[1] |
Shim
|
TH=0.20mm
|
| 34. |
941825
|
[1] |
Shim
|
TH=0.40mm
|
| 35. |
854097
|
[1] |
Bearing cover
|
|
| 36. |
925257
|
[1] |
O-ring
|
|
| 37. |
946472
|
[4] |
Flange screw
|
|
| 38. |
947084
|
[1] |
Gasket
|
|
| 39. |
960629
|
[1] |
Plug
|
|
| 40. |
853484
|
[1] |
Pretensioning sleeve
|
|
| 41. |
853949
|
[1] |
Roller bearing
|
|
| 42. |
853063
|
[1] |
Adjusting washer
|
TH=0,10mm
|
| 42. |
853064
|
[1] |
Adjusting washer
|
TH=0.15mm
|
| 42. |
853065
|
[1] |
Adjusting washer
|
TH=0.35mm
|
| 43. |
183247
|
[1] |
Roller bearing
|
|
| 44. |
853670
|
[1] |
Sealing ring
|
|
| 45. |
914538
|
[1] |
Snap ring
|
|
| 46. |
832675
|
[1] |
Washer
|
|
| 47. |
956000
|
[1] |
O-ring
|
|
| 48. |
853161
|
[1] |
Bearing housing
|
|
| 49. |
925095
|
[1] |
O-ring
|
|
| 50. |
967636
|
[6] |
Hex. socket screw
|
|
| 51. |
949523
|
[6] |
Washer
|
|
| 52. |
850275
|
[1] |
Axle shaft
|
|
| 53. |
853026
|
[1] |
Washer
|
|
| 54. |
854201
|
[1] |
Screw
|
|
| 55. |
853366
|
[1] |
Bearing housing
|
|
| 56. |
946671
|
[6] |
Flange screw
|
|
| 57. |
853370
|
[1] |
Anode
|
TH=0.1mm
|
| 57. |
853369
|
[1] |
Shim
|
TH=0.15mm
|
| 57. |
853368
|
[1] |
Anode
|
TH=0.35mm
|
| 58. |
943244
|
[1] |
O-ring
|
|
| 59. |
183328
|
[1] |
Cup
|
|
| 60. |
183327
|
[1] |
Inner ring
|
|
| 61. |
852696
|
[1] |
Pretensioning sleeve
|
|
| 62. |
853949
|
[1] |
Roller bearing
|
|
| 63. |
925063
|
[1] |
O-ring
|
|
| 64. |
853757
|
[1] |
Sealing ring
|
|
| 65. |
944530
|
[1] |
Sealing ring
|
|
| 66. |
853481
|
[1] |
Propeller shaft flan
|
|
| 67. |
850471
|
[1] |
Washer
|
|
| 68. |
947855
|
[1] |
Flange lock nut
|
|
| 69. |
853394
|
[1] |
Oil cooler
|
|
| 70. |
853361
|
[2] |
Retainer
|
|
| 71. |
854268
|
[2] |
Connector
|
|
| 72. |
965213
|
[4] |
Flange screw
|
|
| 73. |
969497
|
[2] |
Hose nipple
|
|
| 73A. |
854116
|
[1] |
Hose
|
|
| 73B. |
961665
|
[2] |
Hose clamp
|
|
| 74. |
960169
|
[4] |
O-ring
|
|
| 75. |
959187
|
[4] |
Hex. socket screw
|
|
| 76. |
853198
|
[1] |
Shift mechanism
|
|
| 77. |
851662
|
[1] |
Bearing housing
|
|
| 78. |
839646
|
[1] |
Dog
|
|
| 79. |
925065
|
[1] |
O-ring
|
|
| 80. |
814184
|
[1] |
Spring
|
|
| 81. |
965215
|
[2] |
Flange screw
|
|
| 82. |
958838
|
[1] |
Sealing ring
|
|
| 83. |
897816
|
[1] |
Eccentric piston
|
|
| 84. |
951924
|
[1] |
Spring pin
|
|
| 85. |
942871
|
[1] |
Clevis pin
|
|
| 86. |
897711
|
[1] |
Hexagon screw
|
|
| 87. |
897871
|
[1] |
Shim
|
|
| 88. |
853225
|
[1] |
Intermediate lever
|
|
| 89. |
955270
|
[2] |
Hexagon screw
|
|
| 90. |
955781
|
[2] |
Hexagon nut
|
|
| 91. |
955948
|
[2] |
Toothed washer
|
|
| 92. |
804312
|
[1] |
Cube
|
|
| 93. |
955892
|
[1] |
Washer
|
|
| 94. |
17276
|
[1] |
Split pin
|
|
| 95. |
853180
|
[1] |
Bracket
|
|
| 96. |
955294
|
[2] |
Hexagon screw
|
|
| 97. |
819068
|
[1] |
Washer
|
|
| 98. |
21471054
|
[1] |
Bracket
|
|
| 99. |
955246
|
[2] |
Hexagon screw
|
|
| 100. |
946577
|
[2] |
Lock nut
|
|
| 101. |
940090
|
[2] |
Washer
|
|
| 101. |
876073
|
[1] |
Gasket kit
|
|
