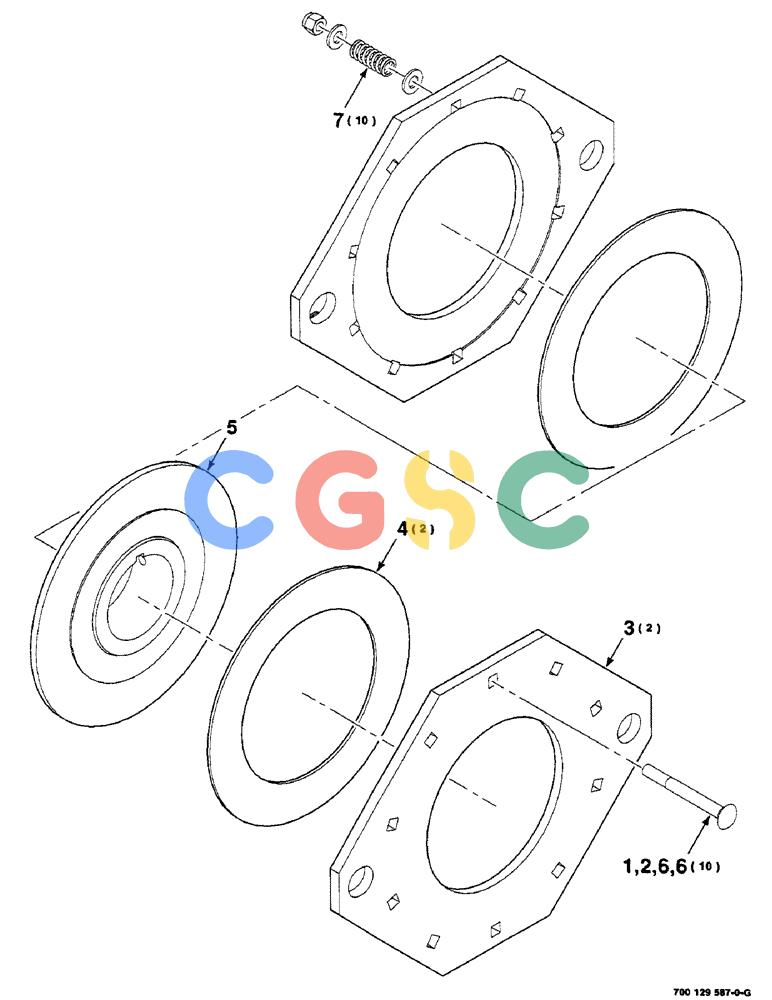

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (5-08) - BRAKE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
339 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-656
|
[10] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
231-1406
|
[10] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 3. |
6818561
|
[2] |
PLATE
|
CAS
- pressure
|
| 4. |
700710946
|
[2] |
CLUTCH PLATE
|
CAS
DISC - clutch
|
| 5. |
700129588
|
[1] |
HUB
|
CAS
- wa
|
| 6. |
496-11041
|
[20] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 7. |
758011
|
[10] |
SPRING
|
CAS
- compression
|
