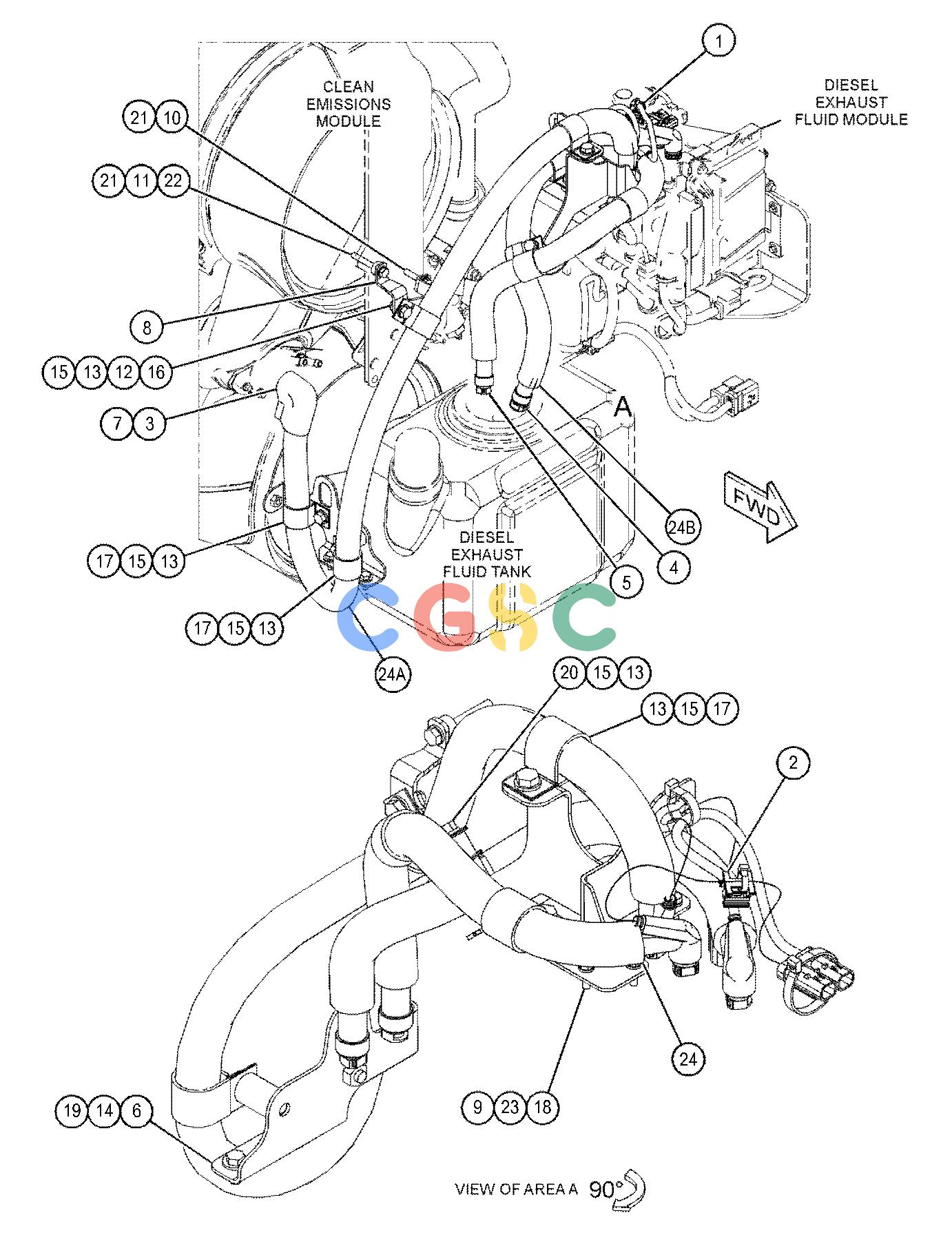

卡特零件查询（730） 515-2793: LINES GP-DIESEL EXHAUST FLUID
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [4] | STRAP-CABLE | |
| 2. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 3. | 389-9441 | [1] | INSULATION | |
| 4. | 398-9452 | [1] | HOSE AS | |
| 5. | 398-9453 | [1] | HOSE AS | |
| 6. | 416-2468 | [1] | BRACKET AS | |
| | 4Y-8939M | [1] | BOSS(M10X1.5X40-MM) | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 7. | 425-7363 | [1] | HOSE AS | |
| 8. | 431-6600 | [1] | PLATE | |
| 9. | 515-0442 | [1] | BRACKET AS | |
| 10. | 099-3649M | [1] | BOLT(M8X1.25X40-MM) | |
| 11. | 198-4776 | [1] | WASHER-HARD(8.8X20X8-MM THK) | |
| 12. | 344-5675M | [1] | NUT(M10X1.5-THD) | |
| 13. | 4D-7388 | [8] | CLIP(LOOP) | |
| 14. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 15. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4137M | [3] | BOLT(M10X1.5X20-MM) | |
| 18. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 19. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 20. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 21. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 22. | 8T-6869M | [1] | BOLT(M8X1.25X60-MM) | |
| 23. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 24. | 389-9423E | | INSULATION(56-CM) | |
| 24A. | 389-9423E | | INSULATION(138-CM) | |
| 24B. | 389-9423E | | INSULATION(58-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
