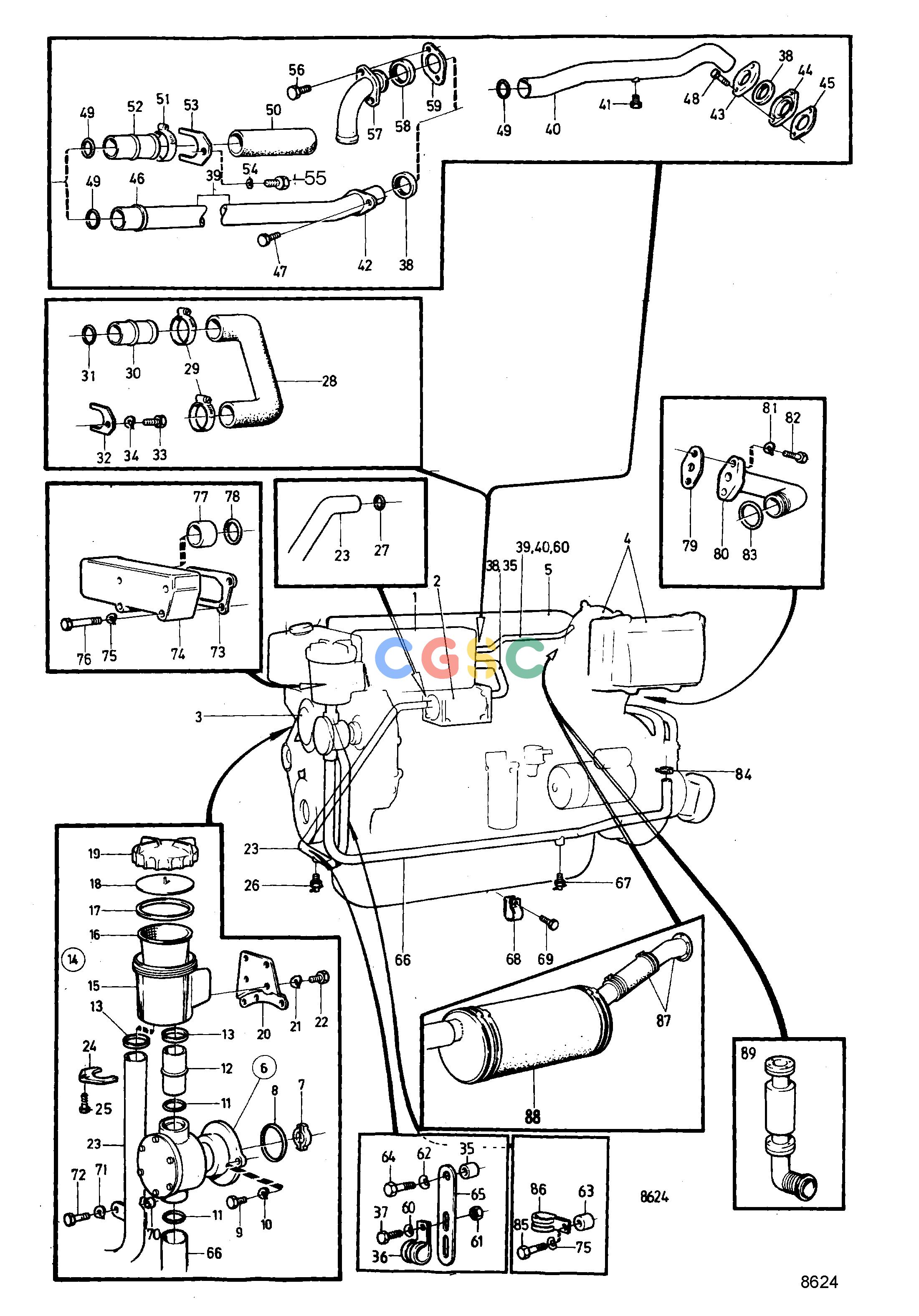

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemCooling System, Induction and Exhaust Manifold: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
994 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7744060_037
|
|
heat exchanger and thermostat with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
838968
|
[1] |
Oil cooler
|
(842589)
|
| 3. |
7744060_040
|
|
circulation pump with installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7744060_045
|
|
air filter with installation comps
|
|
| 4. |
|
|
|
|
| 5. |
7744060_051
|
|
induction- and exhaust manifold with installation comps
|
|
| 5. |
|
|
|
|
| 6. |
842843
|
[1] |
Sea water pump, water pump
|
|
| 7. |
829433
|
[1] |
Dog
|
|
| 8. |
947314
|
[1] |
O-ring
|
|
| 9. |
955295
|
[2] |
Hexagon screw
|
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
949658
|
[2] |
O-ring
|
(925061)
|
| 12. |
842743
|
[1] |
Tube
|
|
| 13. |
858986
|
[2] |
Sealing ring
|
(842744)
|
| 14. |
842924
|
[1] |
Strainer
|
|
| 15. |
|
|
|
|
| 16. |
842723
|
[1] |
Strainer
|
|
| 17. |
842724
|
[1] |
Seal
|
|
| 18. |
842982
|
[1] |
Pressure plate
|
|
| 19. |
842722
|
[1] |
Cover
|
|
| 20. |
842742
|
[1] |
Bracket
|
|
| 21. |
941907
|
[4] |
Spring washer
|
|
| 22. |
955293
|
[4] |
Hexagon screw
|
|
| 23. |
842906
|
[1] |
Coolant pipe
|
|
| 24. |
842911
|
[1] |
Brace
|
MO 26359-
|
| 25. |
955269
|
[1] |
Hexagon screw
|
MO 26359-, L=12mm
|
| 26. |
82745
|
[1] |
Shut-off cock
|
|
| 27. |
949658
|
[1] |
O-ring
|
(925061)
|
| 28. |
842907
|
[1] |
Hose
|
|
| 29. |
994560
|
[2] |
Hose clamp
|
|
| 30. |
843062
|
[1] |
Pipe connection
|
|
| 31. |
949658
|
[1] |
O-ring
|
(925061)
|
| 32. |
842911
|
[1] |
Brace
|
|
| 33. |
955270
|
[1] |
Hexagon screw
|
|
| 34. |
941906
|
[1] |
Spring washer
|
|
| 35. |
843075
|
[1] |
Spacer sleeve
|
MO24790-
|
| 36. |
952635
|
[1] |
Clamp
|
MO24790-
|
| 37. |
955271
|
[1] |
Hexagon screw
|
MO24790-
|
| 49. |
949658
|
[1] |
O-ring
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 50. |
944386
|
[1] |
Rubber hose
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 51. |
994560
|
[2] |
Hose clamp
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 52. |
843062
|
[1] |
Pipe connection
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 53. |
842911
|
[1] |
Brace
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 54. |
941906
|
[1] |
Spring washer
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 55. |
955270
|
[1] |
Hexagon screw
|
For alternative use on TMD40A spec 867393, 867394., For alternative use on MD40A spec 867449, 867450
|
| 60. |
955892
|
[1] |
Washer
|
MO24790-
|
| 61. |
955781
|
[1] |
Hexagon nut
|
MO24790-
|
| 62. |
941907
|
[1] |
Spring washer
|
See group 2A
|
| 63. |
846339
|
[1] |
Spacer sleeve
|
MO24790-
|
| 64. |
955306
|
[1] |
Hexagon screw
|
See group 2A
|
| 65. |
965534
|
[1] |
Bracket
|
MO24790-
|
| 66. |
842905
|
[1] |
Suction line
|
MO-1507
|
| 66. |
843877
|
[1] |
Suction line
|
MO 1508-
|
| 66. |
843267
|
[1] |
Coolant pipe
|
|
| 70. |
842350
|
[1] |
Spacer sleeve
|
|
| 71. |
941907
|
[1] |
Spring washer
|
|
| 72. |
955300
|
[1] |
Hexagon screw
|
See group 2A
|
| 73. |
1542187
|
[1] |
Gasket
|
|
| 74. |
842697
|
[1] |
Pipe elbow
|
|
| 75. |
941907
|
[4] |
Spring washer
|
See group 3
|
| 76. |
955305
|
[4] |
Hexagon screw
|
See group 3
|
| 77. |
842965
|
[1] |
Pipe
|
|
| 78. |
925067
|
[2] |
O-ring
|
|
| 79. |
843042
|
[1] |
Gasket
|
|
| 85. |
955302
|
[1] |
Hexagon screw
|
See group 2A
|
| 86. |
947827
|
[1] |
Clamp
|
MO 24790-
|
| 87. |
|
|
|
|
| 88. |
|
|
|
|
| 89. |
|
|
|
See group 9
|
