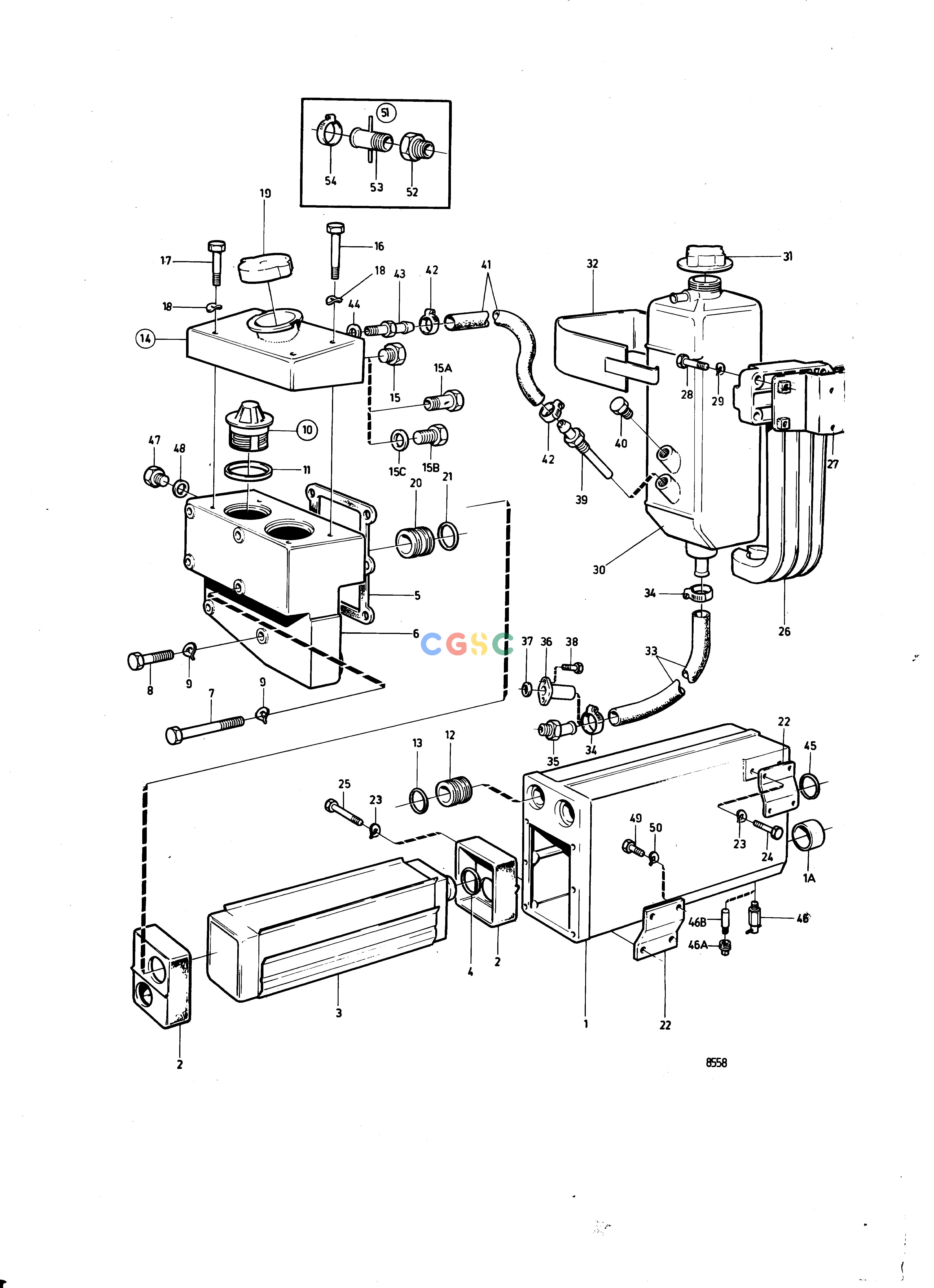

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemHeat Exchanger and Thermostat with Installation Components: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
Replaced by 1pc 844271, 1pc 844132, 1pc 955324, 1pc 955333., Early type
|
| 1. |
844271
|
[1] |
Housing
|
Repl by 846573
|
| 1. |
846573
|
[1] |
Housing
|
MO 25800-
|
| 1A. |
846584
|
[2] |
Bushing
|
MO 25800-
|
| 2. |
842695
|
[2] |
Gaiter
|
|
| 3. |
842693
|
[1] |
Insert
|
|
| 4. |
925062
|
[2] |
O-ring
|
|
| 5. |
842669
|
[1] |
Gasket
|
|
| 6. |
842683
|
[1] |
Thermostat housing
|
|
| 7. |
955309
|
[4] |
Hexagon screw
|
|
| 8. |
955306
|
[2] |
Hexagon screw
|
|
| 9. |
941907
|
[6] |
Spring washer
|
|
| 10. |
875788
|
[1] |
Thermostat kit
|
70C
|
| 10. |
875787
|
[1] |
Thermostat kit
|
76C
|
| 11. |
416033
|
[2] |
Sealing ring
|
(418361)
|
| 12. |
842966
|
[2] |
Pipe seal
|
|
| 13. |
925063
|
[4] |
O-ring
|
|
| 14. |
842687
|
[1] |
Upper section
|
|
| 15. |
192154
|
[1] |
Plug
|
Early type
|
| 15B. |
940148
|
[1] |
Hexagon screw
|
Late type
|
| 15C. |
957173
|
[1] |
Gasket
|
Late type
|
| 16. |
955304
|
[2] |
Hexagon screw
|
|
| 17. |
955302
|
[2] |
Hexagon screw
|
|
| 18. |
941907
|
[4] |
Spring washer
|
|
| 19. |
845587
|
[1] |
Filler cap
|
(843390)
|
| 20. |
842965
|
[2] |
Pipe
|
|
| 21. |
925067
|
[4] |
O-ring
|
|
| 22. |
842608
|
[1] |
Bracket
|
Late type
|
| 22. |
844132
|
[1] |
Bracket
|
Late type
|
| 23. |
941908
|
[4] |
Spring washer
|
|
| 24. |
955317
|
[2] |
Hexagon screw
|
Late type, L=25mm
|
| 25. |
955324
|
[2] |
Hexagon screw
|
MO-6918 L=60mm
|
| 25. |
955326
|
[2] |
Hexagon screw
|
MO6919- L=70mm
|
| 26. |
843260
|
[1] |
Bracket
|
|
| 27. |
844122
|
[1] |
Bracket
|
Used when expansion tank is mounted on thermostat housing
|
| 28. |
955318
|
[4] |
Hexagon screw
|
Used when expansion tank is mounted on thermostat housing
|
| 29. |
941908
|
[4] |
Spring washer
|
Used when expansion tank is mounted on thermostat housing
|
| 30. |
|
|
|
Replaced by 1pc 843759, 1pc 844624., MO-4256
|
| 30. |
843759
|
[1] |
Expansion tank
|
MO4257-
|
| 31. |
829205
|
[1] |
Cap
|
MO-4256
|
| 31. |
844624
|
[1] |
Pressure cap
|
MO4257-
|
| 32. |
843266
|
[1] |
Clamp
|
|
| 33. |
952969
|
[1] |
Hose
|
(943368)
|
| 34. |
943472
|
[2] |
Hose clamp
|
|
| 35. |
941534
|
[1] |
Elbow nipple, angle nipple
|
Early type
|
| 36. |
844416
|
[1] |
Coolant pipe
|
Late type
|
| 37. |
418445
|
[1] |
Sealing ring, gasket
|
Late type
|
| 38. |
955271
|
[2] |
Hexagon screw
|
Late type
|
| 39. |
843247
|
[1] |
Connecting pipe
|
MO-4256
|
| 40. |
836268
|
[2] |
Plug
|
|
| 41. |
943366
|
[1] |
Rubber hose
|
|
| 42. |
945652
|
[2] |
Hose clamp
|
|
| 43. |
844419
|
[1] |
Hose coupling
|
|
| 44. |
957173
|
[1] |
Gasket
|
|
| 45. |
949658
|
[2] |
O-ring
|
(925061)
|
| 46. |
82745
|
[1] |
Shut-off cock
|
MO-13005
|
| 46A. |
800475
|
[1] |
Plug
|
Replaced by 1pc plug-838928 and 1pc zincelectrode-838929., MO13006-
|
| 46. |
838928
|
[1] |
Plug
|
|
| 46B. |
838929
|
[1] |
Anode
|
|
| 47. |
944507
|
[1] |
Plug
|
MO7054-
|
| 48. |
957184
|
[1] |
Gasket
|
MO7054-
|
| 49. |
955317
|
[2] |
Hexagon screw
|
|
| 49. |
955322
|
[1] |
Hexagon screw
|
L=120mm
|
| 49. |
955332
|
[1] |
Hexagon screw
|
L=120mm
|
| 49. |
955333
|
[1] |
Hexagon screw
|
L=130mm
|
| 50. |
941908
|
[4] |
Spring washer
|
|
| 51. |
845277
|
[1] |
Thermal outlet
|
|
| 52. |
16291
|
[2] |
Reduction nipple
|
|
| 53. |
365287
|
[2] |
Faucet
|
|
| 54. |
961666
|
[2] |
Hose clamp
|
|
