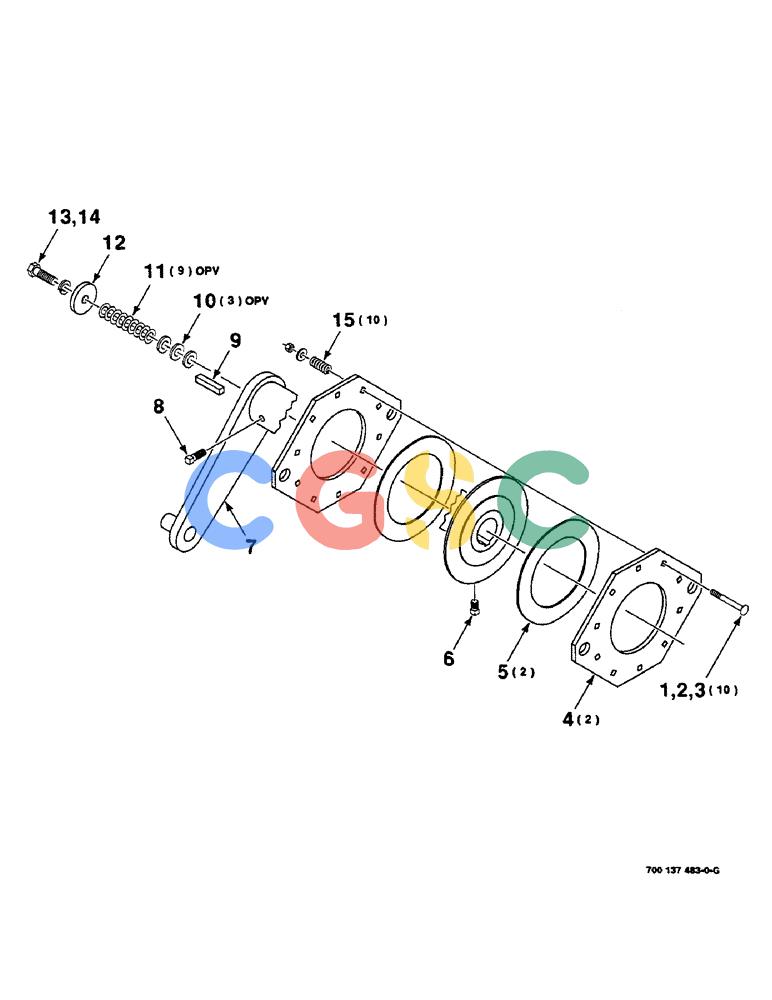

凯斯零件查询(8585) - CASE IH LARGE (3 X 4) RECTANGLER BALER (1/98-12/00) (6-22) - KNOTTER BRAKE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-656
|
[10] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
495-21044
|
[10] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[10] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 4. |
6818561
|
[2] |
PLATE
|
CAS
- pressure
|
| 5. |
700710946
|
[2] |
CLUTCH PLATE
|
CAS
DISC - friction
|
| 6. |
85-15012
|
[1] |
SET SCREW,Sq Hd, 1/2"-13 x 3/4"
|
CAS
1/2-13 X 3/4 CPSQHSS Superseded by part number: 86624113
|
| 7. |
700137484
|
[1] |
ARM
|
CAS
WA - right
|
| 8. |
708081
|
[1] |
SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"
|
CAS
1/2-13 X 1-1/4 CPSQHSS
|
| 9. |
61879
|
[1] |
KEY
|
CAS
1/2 X 1/2 X 2-1/2 STR KEY
|
| 10. |
396-21066
|
[3] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 11. |
6553275
|
[9] |
SHIM
|
CAS
|
| 12. |
6561351
|
[1] |
CAP WASHER
|
CAS
- knotter
|
| 13. |
413-1032
|
[1] |
BOLT,Hex, 5/8" - 11 x 2", Gr 5
|
CAS
C Hex, 5/8"-11 x 2", G5 Superseded by part number: 86505999
|
| 14. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 15. |
58644
|
[10] |
SPRING
|
CAS
- compression
|
