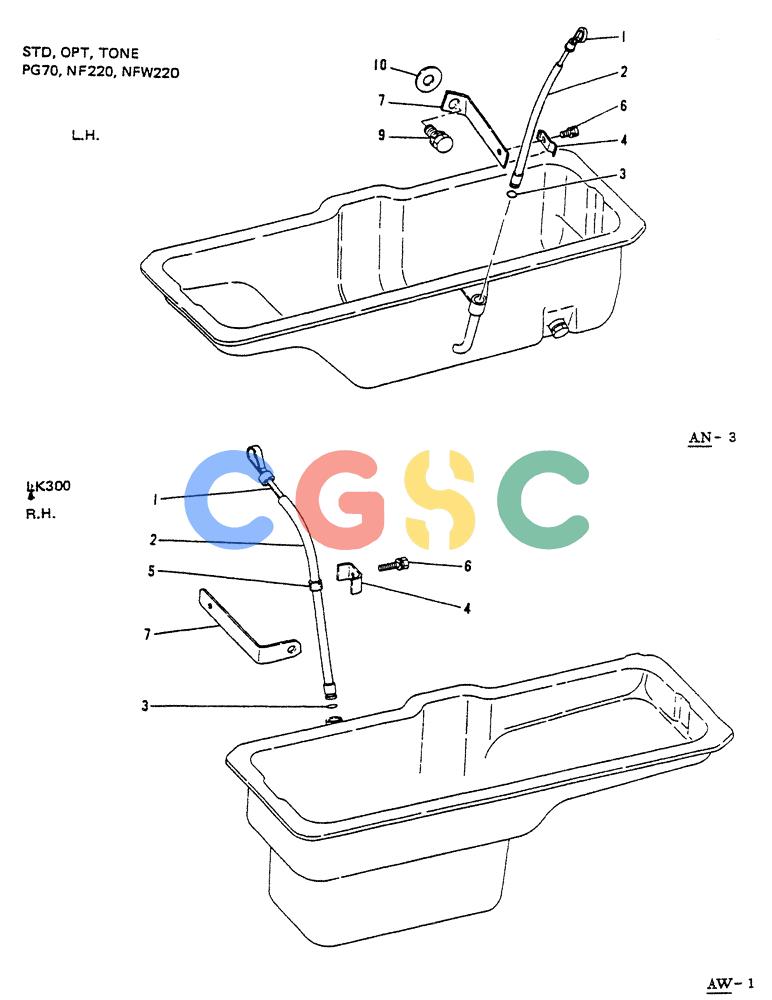

神钢零件查询(65R5C) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (05-007) - OIL LEVEL GAUGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
722 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME940024 | [1] | GAUGE | KOBGAUGE, OIL LEVEL l=350 |
| 1. | VAME940004 | [1] | DIPSTICK GAUGE, OIL LEVEL l=351, Start Serial: 8002- | DIPSTICK GAUGE, OIL LEVEL l=351, Start Serial: 8002- |
| 2. | VA3174211300 | [1] | GUIDE, OIL LEVEL GAUGE | |
| 3. | VAMF520007 | [1] | O-RING | KOBO-RING 11 |
| 4. | VAMH021200 | [1] | CLAMP (FOR M0 ONLY) | |
| 4. | VA3006146700 | [1] | CLAMP (FOR M1 ONLY) | |
| 5. | VAMH022152 | [1] | OIL SEAL | KOBPROTECTOR, RUBBER (FOR M1 ONLY) |
| 6. | VAMF240029 | [1] | SCREW | KOBBOLT W/WASHER 6X25 (FOR M0 ONLY) |
| 7. | VAMH021202 | [1] | STAY (FOR M0 ONLY) | |
| 7. | VA3174281100 | [1] | STAY (FOR M1 ONLY),(SERVICE PARTS ARE EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES ) | |
| 9. | VAMF300868 | [1] | BOLT | KOBBOLT W/WASHER 12X30 (FOR M1 ONLY), Start Serial: 7909- |
| 10. | VAMC422001 | [1] | SPACER 2=3.2 (FOR M1 ONLY), Start Serial: 7909- | |
