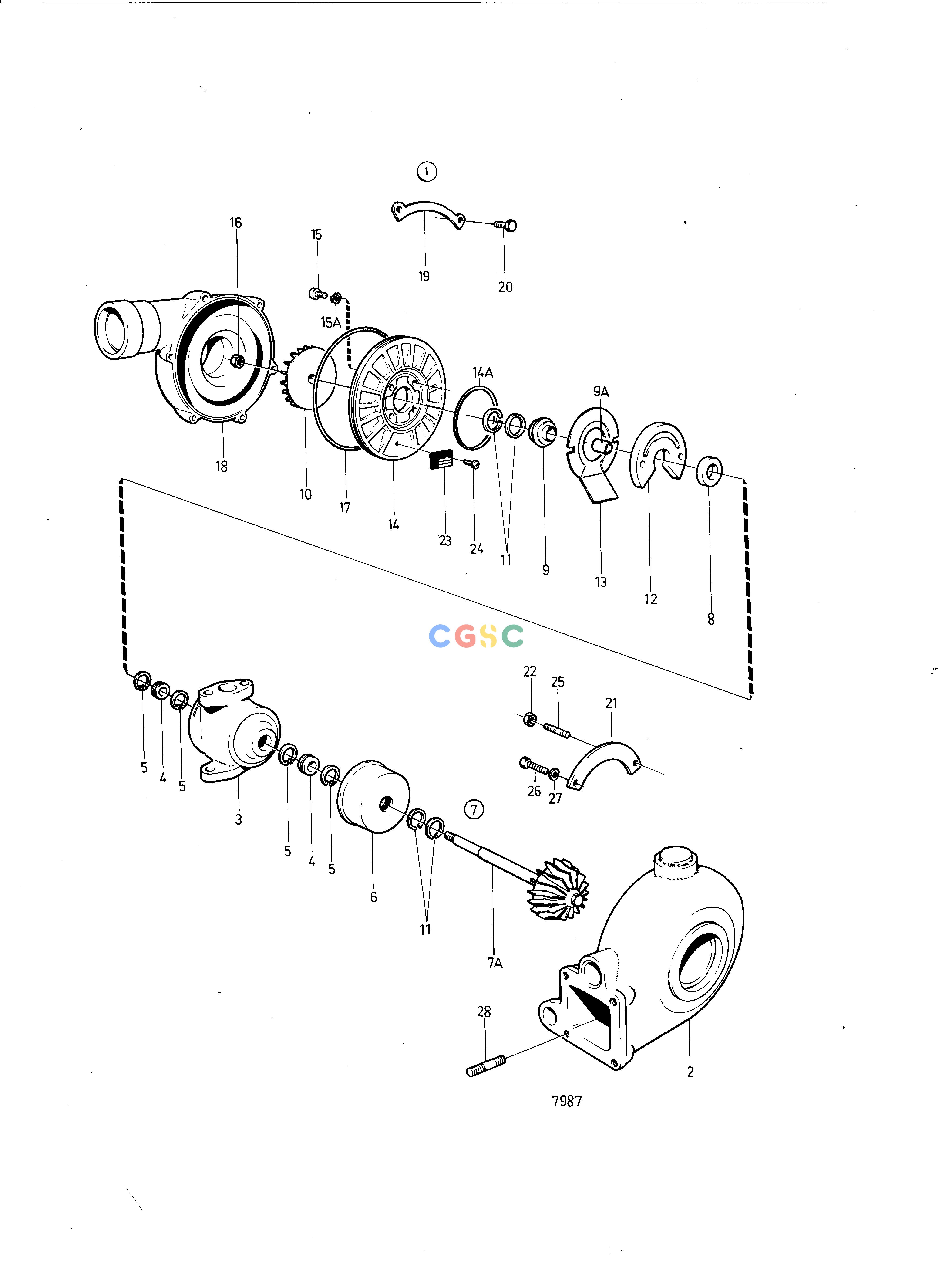

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BCooling SystemTurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829368
|
[1] |
Turbocharger
|
|
| 1. |
3802003
|
[1] |
Turbocharger
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
838562
|
[2] |
Bushing
|
|
| 5. |
845042
|
[4] |
Lock ring
|
|
| 6. |
843997
|
[1] |
Heat shield
|
|
| 7. |
843998
|
[1] |
Rotor
|
|
| 7A. |
845831
|
[1] |
Rotor
|
|
| 8. |
844000
|
[1] |
Thrust ring
|
|
| 9. |
845049
|
[1] |
Gasket
|
|
| 9A. |
845050
|
[1] |
Sleeve
|
|
| 10. |
844010
|
[1] |
Compressor wheel
|
|
| 11. |
845045
|
[4] |
Piston ring
|
|
| 12. |
838565
|
[1] |
Axial bearing
|
|
| 13. |
845047
|
[1] |
Oil deflector
|
|
| 14. |
|
|
|
|
| 14A. |
838426
|
[1] |
O-ring
|
|
| 15. |
845829
|
[4] |
Screw
|
(844002)
|
| 15A. |
838568
|
[4] |
Washer
|
|
| 16. |
848711
|
[1] |
Lock nut
|
|
| 17. |
845824
|
[1] |
O-ring
|
|
| 18. |
|
|
|
|
| 19. |
845825
|
[3] |
Clamping segment
|
|
| 20. |
838570
|
[6] |
Screw
|
|
| 21. |
845826
|
[3] |
Clamping segment
|
|
| 22. |
844006
|
[6] |
Nut
|
|
| 23. |
|
|
|
|
| 24. |
|
|
|
|
| 25. |
|
|
|
|
| 26. |
844007
|
[6] |
Screw
|
|
| 27. |
844008
|
[6] |
Spring washer
|
|
| 28. |
953063
|
[4] |
Stud
|
|
| 28. |
875632
|
[1] |
Repair kit
|
|
