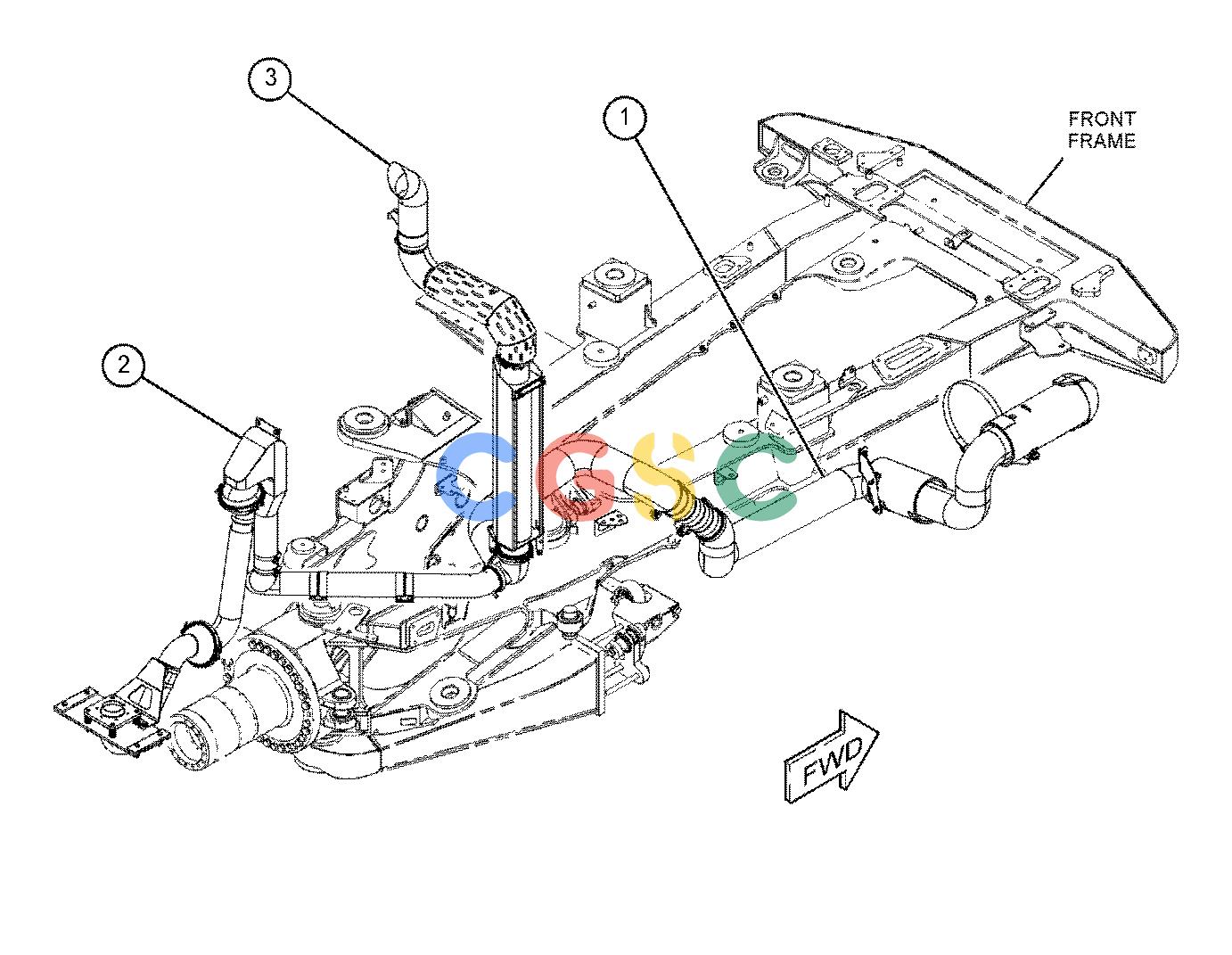

卡特零件查询（730） 379-3754: EXHAUST GP
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-5219 | [2] | U-CLAMP AS | |
| | | | (EACH INCLUDES) |
| | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 2. | 176-8234 | [1] | CLAMP | |
| 3. | 190-5341 | [2] | CLAMP | |
| 4. | 202-1838 | [1] | CLAMP-V BAND | |
| 5. | 343-0596 | [1] | CLAMP-BAND | |
| 6. | 383-8652 | [1] | PIPE AS-EXHAUST | |
| 7. | 383-8654 | [1] | PIPE AS | |
| 8. | 383-8658 | [1] | PIPE AS | |
| 9. | 383-8665 | [1] | BRACKET AS | |
| 10. | 416-1828 | [1] | INSULATION | |
| 11. | 418-1974 | [1] | CLAMP | |
| 12. | 420-2317 | [1] | PIPE AS | |
| 13. | 425-7047 | [1] | INSULATION | |
| 14. | 442-8402 | [1] | BRACKET | |
| 15. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| 16. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 17. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 18. | 7W-2033 | [2] | CLIP(TAB) | |
| 19. | 7W-2034 | [2] | CLIP(SLOT) | |
| 20. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 21. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| 23. | 418-1976BD | | STRAP(1.2-M) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
