久保田零件查询U83400 HST PEDAL SPRING KIT [OPTION] ## S.No.<=54387 S.No.;<=54387 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
347 次

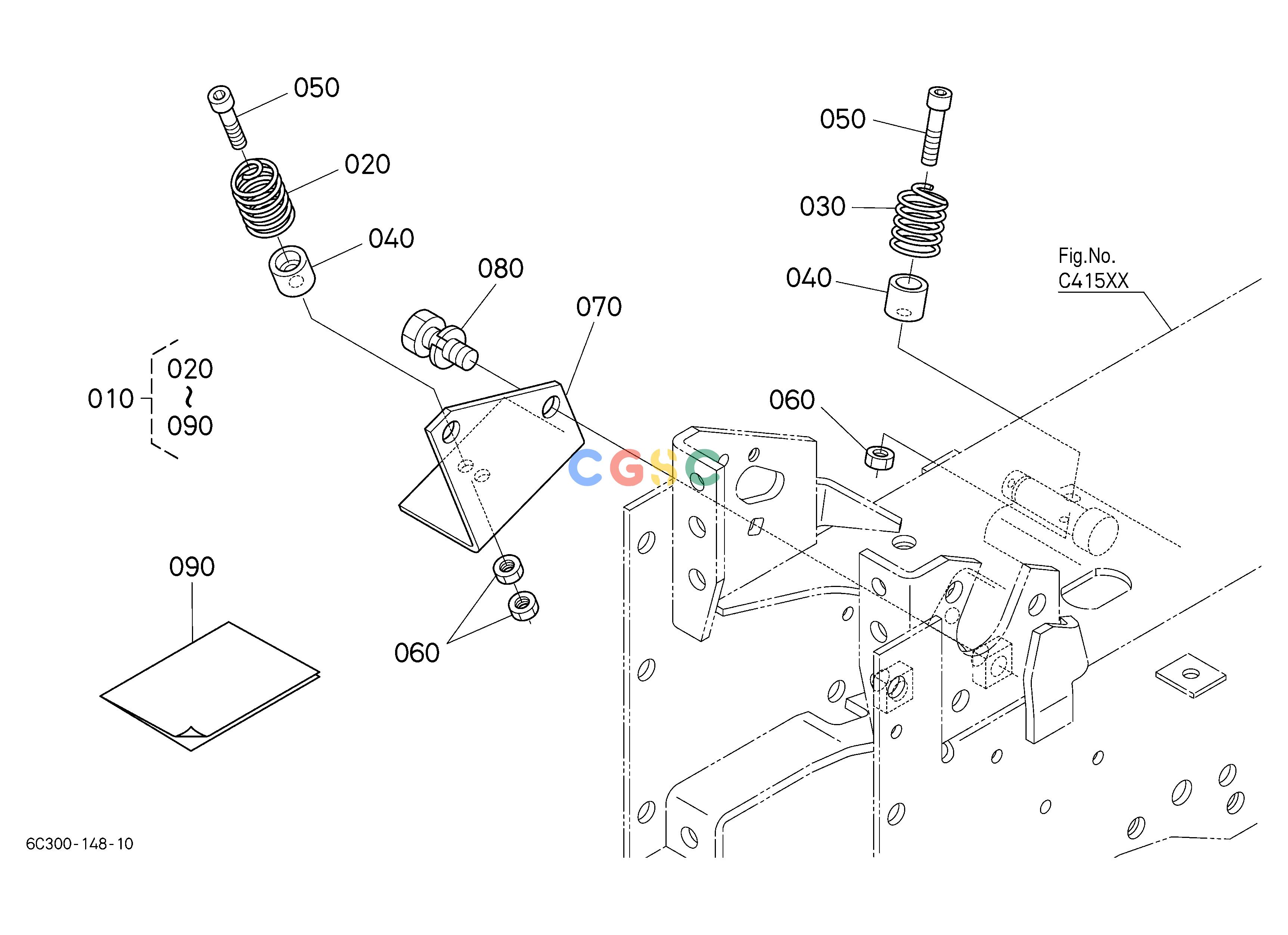

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C30092100
|
[1] |
KIT SPRING
|
1.7248(lbs); 0.784
|
| 020. |
6C30092110
|
[1] |
SPRING,FRONT PEDAL
|
0.0660(lbs); 0.030
|
| 030. |
6C30092120
|
[1] |
SPRING,REAR PEDAL
|
0.0462(lbs); 0.021
|
| 040. |
6C30092130
|
[2] |
GUIDE,SPRING
|
0.0704(lbs); 0.032
|
| 050. |
0131110835
|
[2] |
BOLT,SOCKET HEAD
|
0.0374(lbs); 0.017
|
| 060. |
0211450080
|
[3] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 070. |
6C30092180
|
[1] |
SUPPORT,SPRING
|
0.9196(lbs); 0.418
|
| 080. |
0113351230
|
[2] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
| 080. |
0113351240
|
[2] |
BOLT,SEMS
|
0.0990(lbs); 0.045
|
| 090. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0264(lbs); 0.012
|
