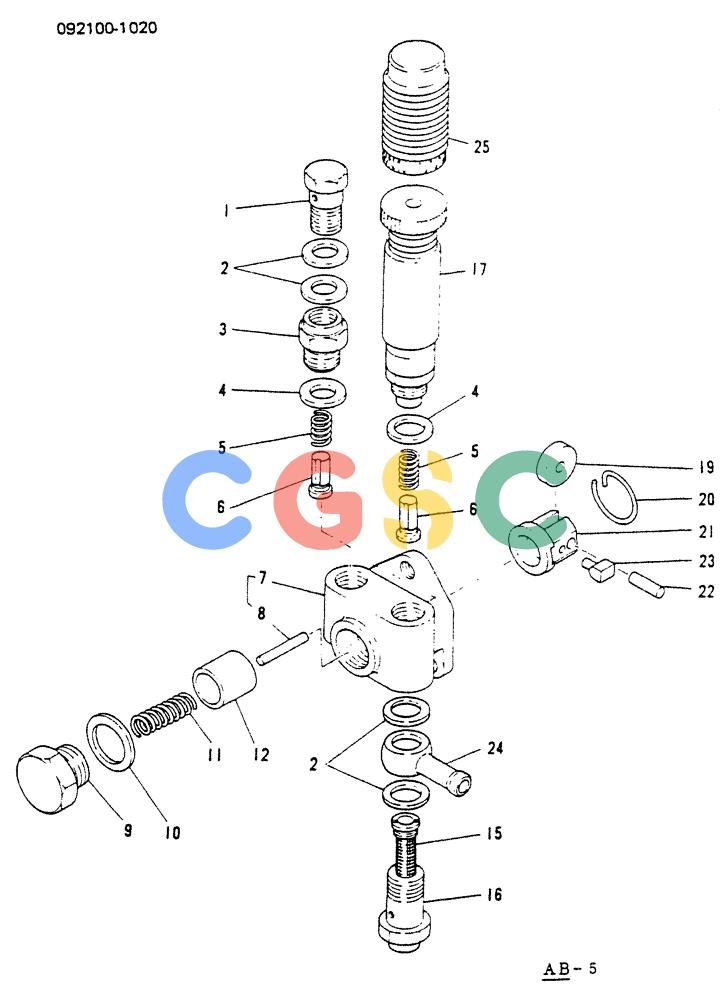

神钢零件查询(65R5C) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (07-004) - FUEL FEED PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-24. | VA3176133030 | [1] | FUEL FEED PUMP ASSY | |
| 1. | VA9491800310 | [1] | JACK SCREW | KOBSCREW(N.D.K NO.) (092100-1020), FF: SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINES |
| 2. | VA0902220070 | [4] | WASHER | KOBWASHER, SEAL Superseded by part number: VA0594601401 |
| 3. | VA0921270010 | [1] | VALVE, SUPPORT | |
| 4. | VA0921250010 | [2] | GASKET | KOBRING |
| 5. | VA0921240010 | [2] | SPRING | KOBSPRING, CHECK VALVE |
| 6. | VA0921210011 | [2] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE, CHECK |
| 7-8. | VA0921200161 | [1] | HOUSING ASSY | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING, FEED PUMP |
| 3. | VA0921680010 | [1] | PUSH ROD SMALL DIA. L | |
| 3. | VA0921680030 | [1] | PUSH ROD SMALL DIA. R | |
| 3. | VA0921680040 | [1] | PUSH ROD SMALL DIA.Y | |
| 3. | VA0921680050 | [1] | PUSH ROD SMALL DIA.G | |
| 3. | VA0921680060 | [1] | PUSH ROD SMALL DIA.W | |
| 3. | VA0921680070 | [1] | PUSH ROD BIG DIA. BR | |
| 9. | VA0921840021 | [1] | PLUG, PISTON CHAMBER | |
| 10. | VA9490181240 | [1] | WASHER WASHER | WASHER WASHER |
| 11. | VA0921820020 | [1] | SPRING, PISTON | |
| 12. | VA0921710010 | [1] | MANIFOLD PISTON SMALL DIA. L | MANIFOLD PISTON SMALL DIA. L |
| 12. | VA0921710020 | [1] | PISTON SMALL DIA.R | |
| 12. | VA0921710030 | [1] | PISTON SMALL DIA.Y | |
| 12. | VA0921710040 | [1] | PISTON SMALL DIA.G | |
| 12. | VA0921710050 | [1] | PISTON BIG DIA.W | |
| 15. | VA0922200040 | [1] | ELEMENT | KOBFILTER, FUEL |
| 16. | VA0922230070 | [1] | SCREW | KOBSCREW |
| 17. | VA0921300050 | [1] | PRIMING PUMP PUMP PRIMING | PRIMING PUMP PUMP PRIMING |
| 19. | VA0921760010 | [1] | ROLLER, TAPPET | |
| 20. | VA9490720940 | [1] | RING, SNAP | |
| 21. | VA0921740030 | [1] | TAPPET | |
| 22. | VA0921780010 | [1] | PIN, ROLLER | |
| 23. | VA0921790050 | [2] | BLOCK, SLIDING | |
| 24. | VA9491810160 | [1] | NIPPLE, SWIVELING 8 | |
| 25. | VA0900610011 | [1] | COVER | KOBCOVER, PRIMING PUMP |
