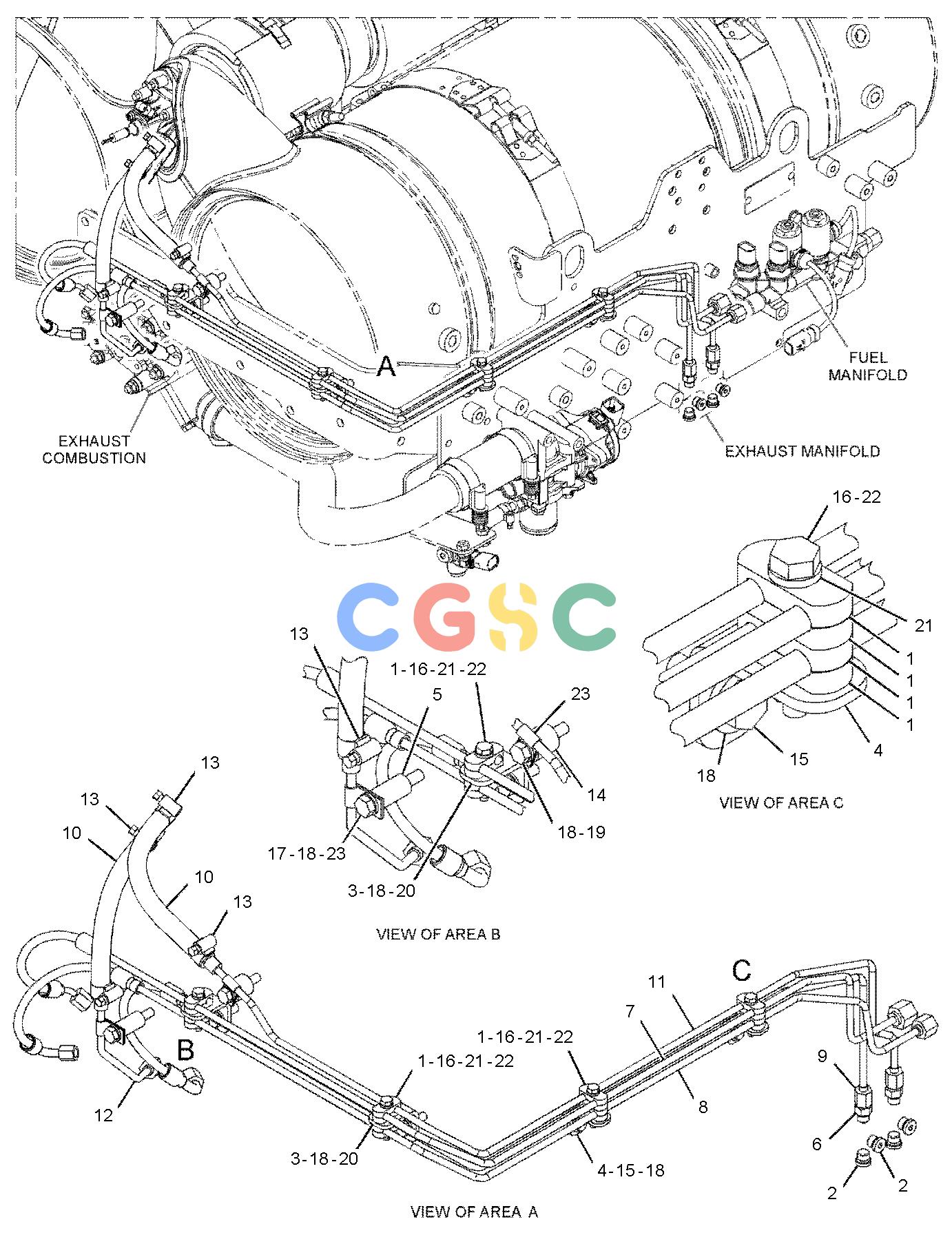

卡特零件查询（730） 418-4028: LINES GP-EXHAUST COMBUSTION
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 288-8580 | [16] | CLAMP-FUEL LINE | |
| 2. | 304-8008 | [4] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 3. | 333-7558 | [2] | BRACKET | |
| 4. | 333-7564 | [2] | BRACKET | |
| 5. | 346-9086 | [1] | SPACER(8.8X21X30-MM THK) | |
| 6. | 366-4681 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7352 | [1] | CONNECTOR | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| 7. | 377-0186 | [1] | HOSE & TUBE AS | |
| 8. | 377-0187 | [1] | HOSE & TUBE AS | |
| 9. | 377-0189 | [1] | HOSE & TUBE AS | |
| 10. | 418-2057 | [2] | HOSE | |
| 11. | 418-9839 | [1] | TUBE AS | |
| 12. | 419-6177 | [1] | TUBE AS | |
| 13. | 428-8808 | [4] | CLAMP-HOSE | |
| 14. | 164-0150 | [1] | SPACER(9X20X20-MM THK) | |
| 15. | 186-0815M | [2] | BOLT(M6X1X20-MM) | |
| 16. | 204-0813 | [4] | BOLT(M6X1X40-MM) | |
| 17. | 305-5385M | [1] | BOLT(M8X1.25X50-MM) | |
| 18. | 311-8366 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 338-8453M | [1] | BOLT(M8X1.25X40-MM) | |
| 20. | 344-1193M | [2] | BOLT(M8X1.25X25-MM) | |
| 21. | 344-1200 | [4] | WASHER-HARD(6.6X12X2-MM THK) | |
| 22. | 344-5673M | [4] | NUT(M6X1-THD) | |
| 23. | 351-9211 | [2] | CLIP | |
| | M | | METRIC PART |
