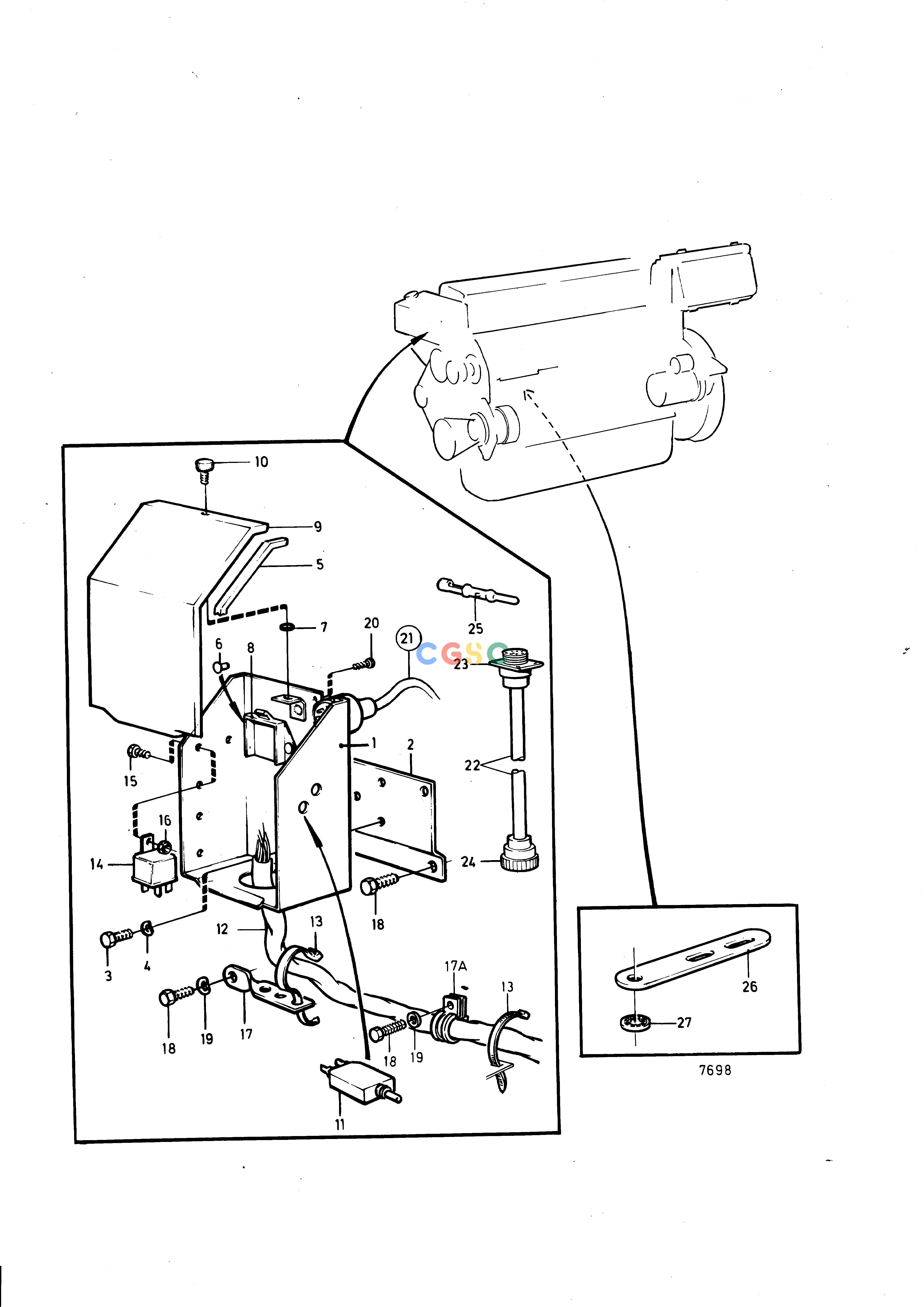

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BElectrical SystemConnection BoxEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
388 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846791
|
[1] |
Box
|
|
| 2. |
846763
|
[1] |
Bracket
|
Repl by 838539
|
| 2. |
838539
|
[1] |
Bracket
|
|
| 3. |
955268
|
[3] |
Hexagon screw
|
|
| 4. |
941907
|
[3] |
Spring washer
|
(955894)
|
| 5. |
1214306
|
[1] |
Stop dog
|
|
| 6. |
942670
|
[2] |
Blind rivet
|
|
| 7. |
925051
|
[1] |
O-ring
|
|
| 8. |
1234048
|
[1] |
Bottom section
|
|
| 9. |
846662
|
[1] |
Cap
|
|
| 10. |
846736
|
[1] |
Lock screw
|
|
| 11. |
966689
|
[1] |
Fuse
|
|
| 12. |
846060
|
[1] |
Cable block
|
|
| 13. |
948210
|
[1] |
Cable tie
|
|
| 14. |
846762
|
[2] |
Relay
|
|
| 14. |
838955
|
[2] |
Relay
|
Spec 867948.
|
| 15. |
955268
|
[2] |
Hexagon screw
|
|
| 16. |
955781
|
[2] |
Hexagon nut
|
|
| 17. |
354842
|
[1] |
Bracket
|
Early type
|
| 17A. |
947827
|
[1] |
Clamp
|
Late type
|
| 18. |
|
|
|
See group 2B
|
| 19. |
955894
|
[1] |
Washer
|
|
| 20. |
955119
|
[4] |
Cross recessed screw
|
|
| 21. |
846648
|
[1] |
Extension cable
|
Alt, L=3000mm
|
| 21. |
846649
|
[1] |
Extension cable
|
Alt, L=5000mm
|
| 21. |
846650
|
[1] |
Extension cable
|
Alt, L=7000mm
|
| 22. |
846639
|
[1] |
Electric cable
|
|
| 23. |
846647
|
[1] |
Block
|
|
| 24. |
846612
|
[1] |
Housing
|
|
| 25. |
849958
|
[16] |
Cable terminal
|
(847040)
|
| 26. |
965534
|
[1] |
Bracket
|
|
| 27. |
955949
|
[1] |
Toothed washer
|
|
