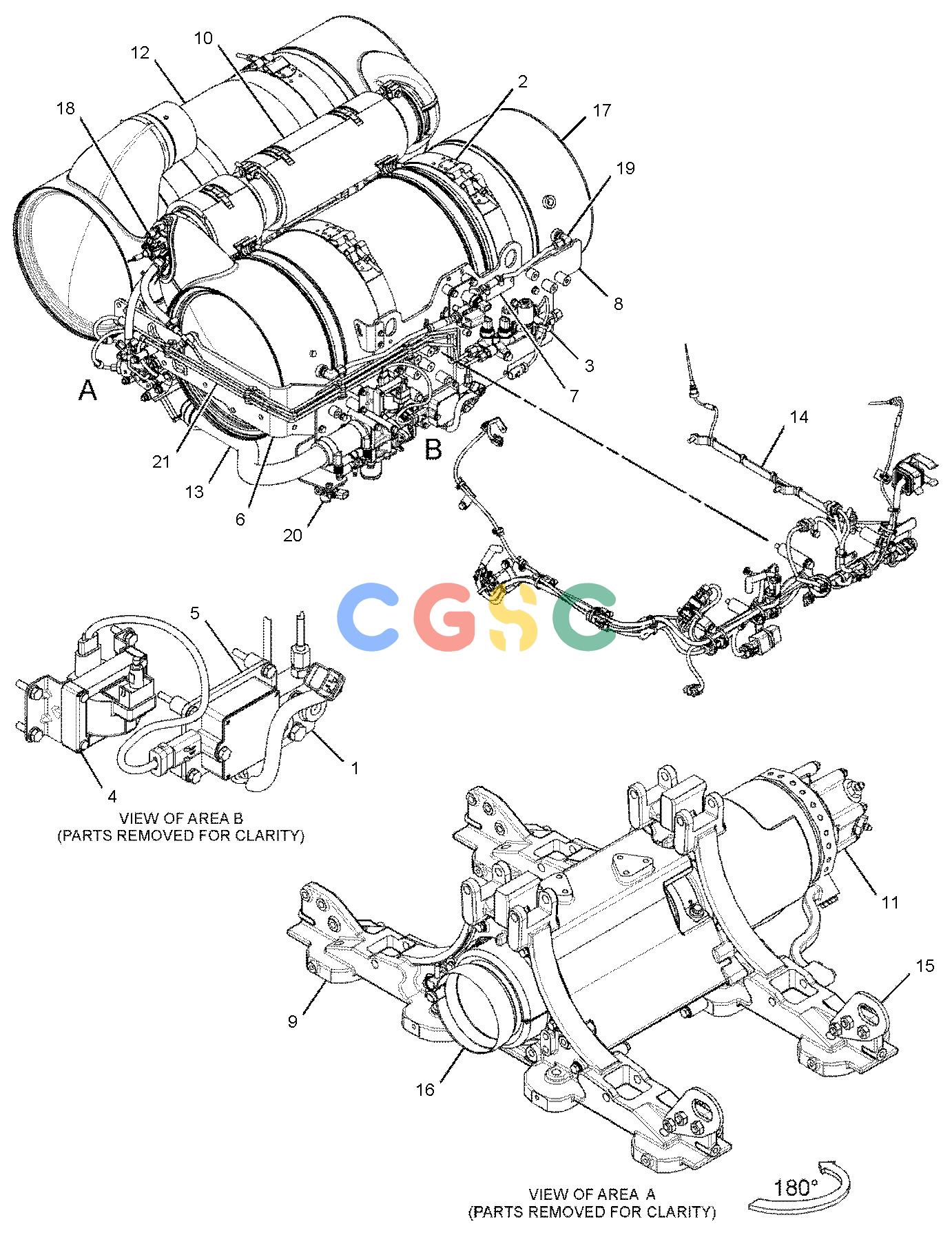

卡特零件查询（730） 394-5330: MODULE AR-CLEAN EMISSIONS
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 336-5043Y | [1] | MANIFOLD GP-EXHAUST COMBUSTION(AFTERTREATMENT REGEN DEVICE) | |
| 2. | 342-6381Y | [1] | STRAP GP-MOUNTING(DPF, MUFFLER) | |
| 3. | 343-3850Y | [1] | MANIFOLD GP-FUEL(AFTERTREATMENT REGEN DEVICE) | |
| 4. | 343-3868Y | [1] | COIL GP-IGNITION(AFTERTREATMENT REGEN DEVICE) | |
| 5. | 343-3875Y | [1] | RELAY GP(ARD NOZZLE HEATER) | |
| 6. | 419-6183Y | [1] | BRACKET GP-SUPPORT | |
| 8. | 363-3266Y | [1] | MOUNTING GP-CEM | |
| 9. | 368-6895Y | [1] | SUPPORT GP-EXHAUST(CLEAN EMISSIONS MODULE) | |
| 10. | 370-9172Y | [1] | LINES GP-EXHAUST(DPF OUTLET) | |
| 11. | 372-3930Y | [1] | COMBUSTION & MTG GP-EXHAUST | |
| 12. | | [1] | CATALYST AS |
| | 447-8151 | [1] | CATALYST AS | |
| 13. | 377-0179Y | [1] | LINES GP-AIR | |
| 14. | 434-1907Y | [1] | WIRING GP-ELECTRONIC CONTROL | |
| 15. | 378-3206Y | [1] | LIFTING GP-CEM | |
| 16. | 381-5706Y | [1] | LINES GP-EXHAUST | |
| 17. | 390-0670Y | [1] | FILTER GP-DIESEL PARTICULATE | |
| 18. | 399-6078Y | [1] | INJECTOR & MTG GP-DEF | |
| 19. | 415-8022Y | [1] | SENSOR & MTG GP-PRESSURE | |
| 20. | 415-8032Y | [1] | VALVE GP-AIR CONTROL | |
| 21. | 418-4028Y | [1] | LINES GP-EXHAUST COMBUSTION | |
| | Y | | SEPARATE ILLUSTRATION |
