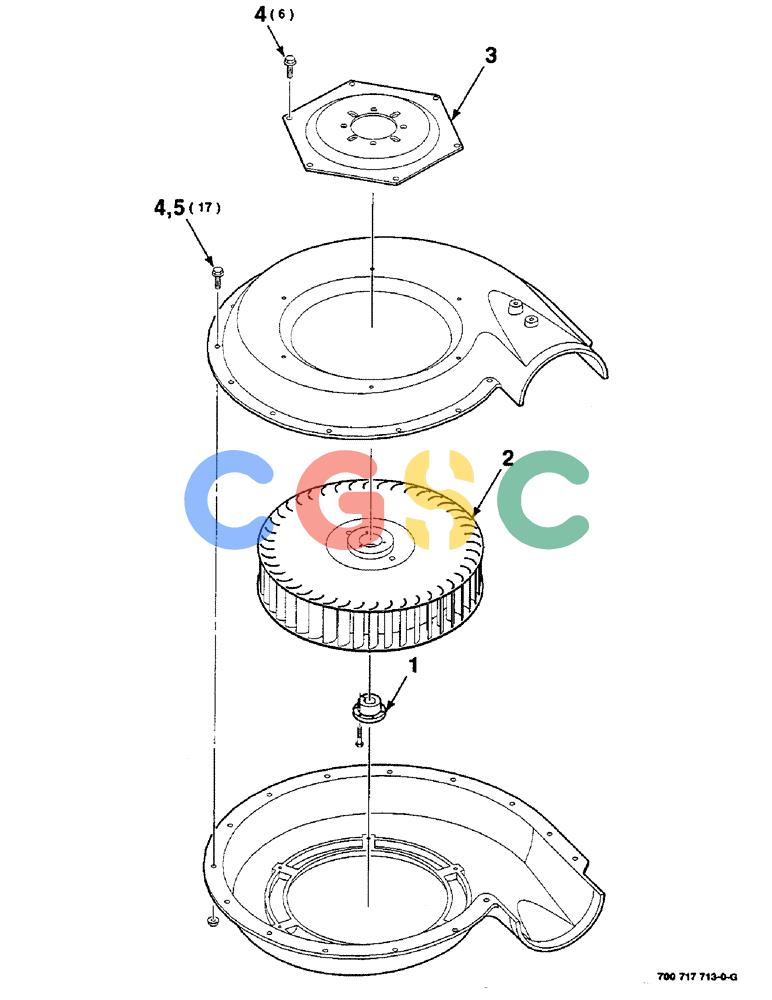

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (09-26) - BLOWER ASSEMBLY, 700717713 BLOWER ASSEMBLY COMPLETE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
501 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700717713
|
[1] |
BLOWER
|
CAS
ASSEMBLY COMPLETE
|
| 1. |
700718704
|
[1] |
BUSHING
|
CAS
- taper lock
|
| 2. |
700718702
|
[1] |
FAN
|
CAS
ROTOR Superseded by part number: 447243A1
|
| 3. |
700718703
|
[1] |
PLATE
|
CAS
- mount
|
| 4. |
409-7416
|
[23] |
BOLT,Hex Flg, 1/4" - 20 x 1", Spcl
|
CAS
Superseded by part number: 86511443
|
| 5. |
231-5144
|
[17] |
SERRATED NUT,Flg, USR, 1/4"-20
|
CAS
Superseded by part number: 523282, 72187066
|
