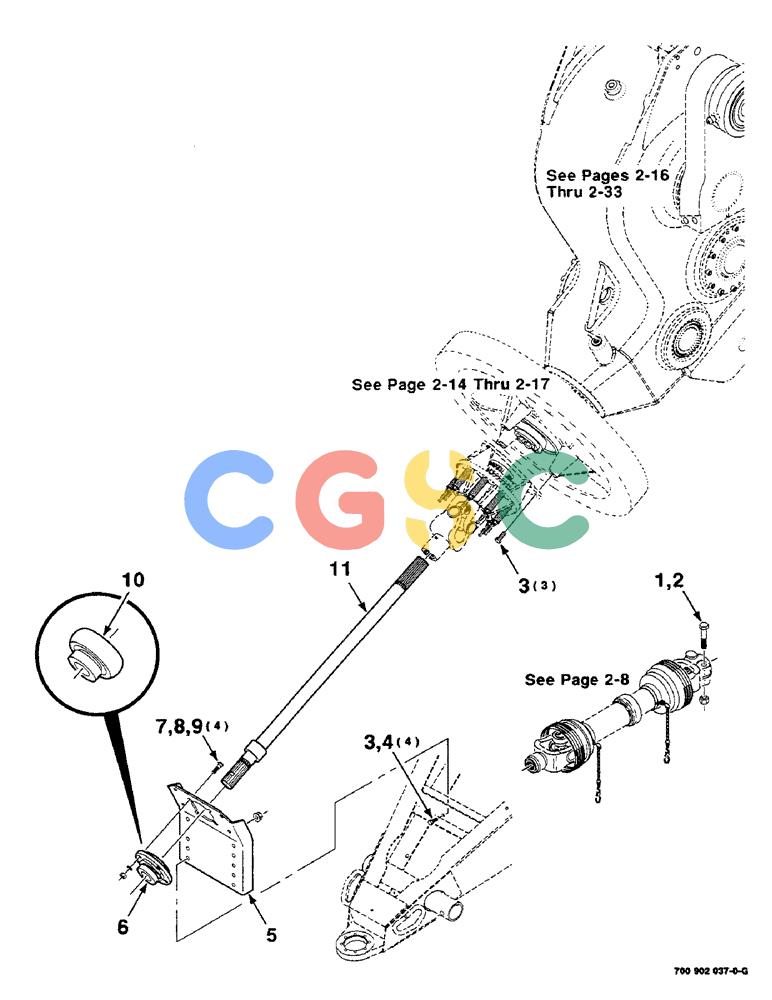

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (02-04) - FLYWHEEL DRIVE SHAFT MOUNTING ASSEMBLY, TYPE 2 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
326-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 8
|
CAS
|
| 2. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G ZP&O Superseded by part number: 84180923
|
| 3. |
700710984
|
[7] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
1/2-13 X 1-1/4 HFS GR8
|
| 4. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 5. |
700113022
|
[1] |
SUPPORT
|
CAS
- bearing
|
| 6. |
700110467
|
[1] |
BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm
|
L
BEARING ASSEMBLY (Includes Item 10)
|
| 7. |
433-820
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 8. |
80679
|
[4] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 9. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 10. |
51318
|
[1] |
BEARING
|
IH
- spherical Superseded by part number: 668718R92, 47577169
|
| 11. |
700113039
|
[1] |
SHAFT
|
CAS
ASSEMBLY
|
