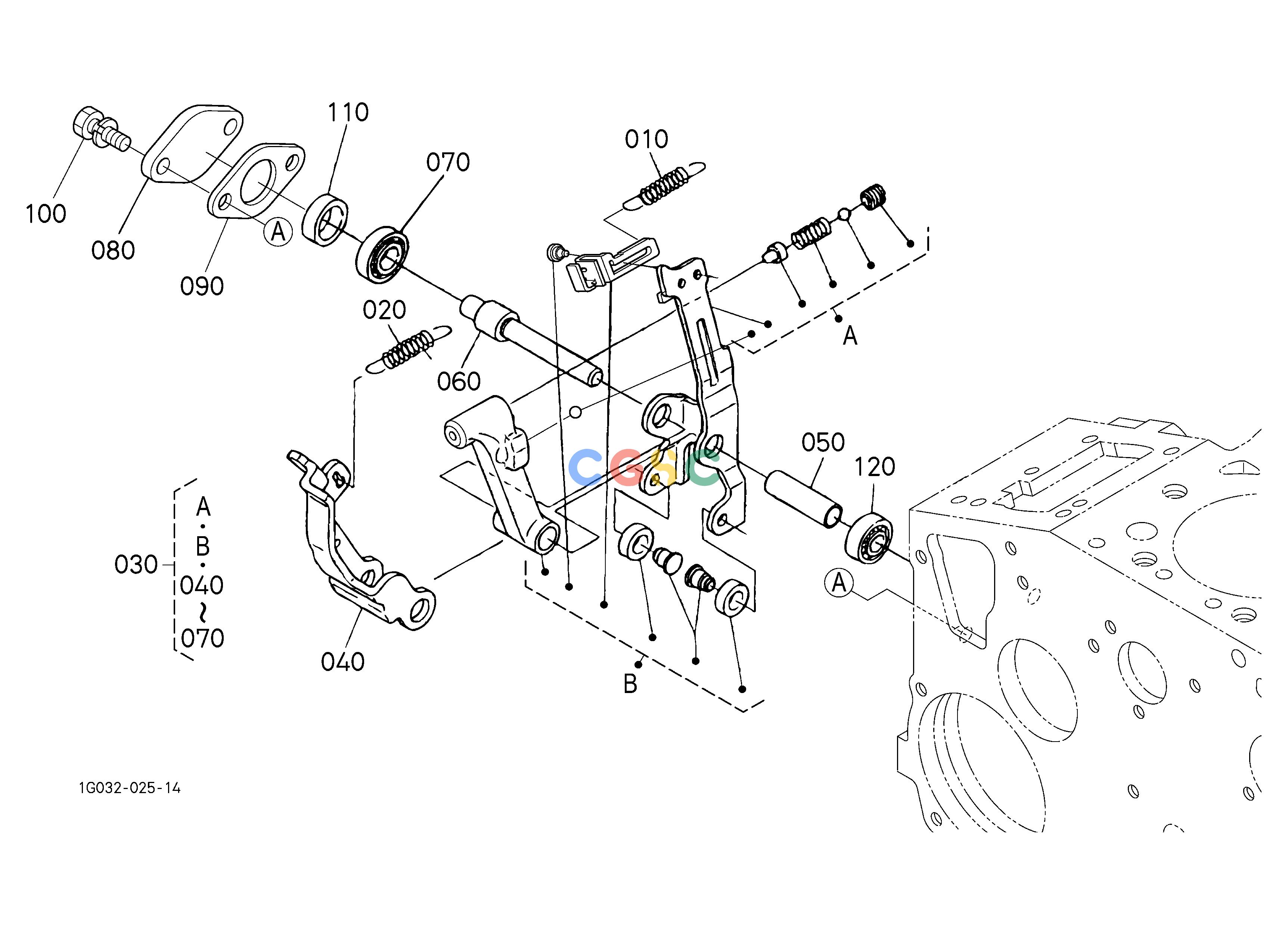

久保田零件查询020400 GOVERNOR ## NOTE:ORDER BY REF.No.080,100 NEW PARTS. ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1745556480
|
[1] |
SPRING,START
|
0.0022(lbs); 0.001
|
| 020. |
1628556412
|
[1] |
SPRING,GOVERNOR
|
0.0484(lbs); 0.022
|
| 030. |
1G06256010
|
[1] |
ASSY LEVER,FORK
|
0.5500(lbs); 0.250
|
| 040. |
1G03256130
|
[1] |
LEVER,FORK
|
0.1760(lbs); 0.080
|
| 050. |
1G03256150
|
[1] |
SHAFT,FORK LEVER
|
0.0154(lbs); 0.007
|
| 060. |
1G03256470
|
[1] |
SHAFT,FORK LEVER
|
0.0880(lbs); 0.040
|
| 070. |
1624156330
|
[1] |
BEARING,MINIATURIZE
|
0.0154(lbs); 0.007
|
| 080. |
1624156250
|
[1] |
COVER,FORK LEV.SHAFT
|
0.0286(lbs); 0.013
|
| 080. |
1624156253
|
[1] |
COVER,FORK LEV.SHAFT
|
0.0550(lbs); 0.025
|
| 090. |
1629956260
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 100. |
0102350614
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 100. |
0102350612
|
[2] |
BOLT,SEMS
|
0.0110(lbs); 0.005
|
| 110. |
1624156210
|
[1] |
COLLAR
|
0.0176(lbs); 0.008
|
| 120. |
1624156340
|
[1] |
BEARING,MINIATURIZE
|
0.0154(lbs); 0.007
|
