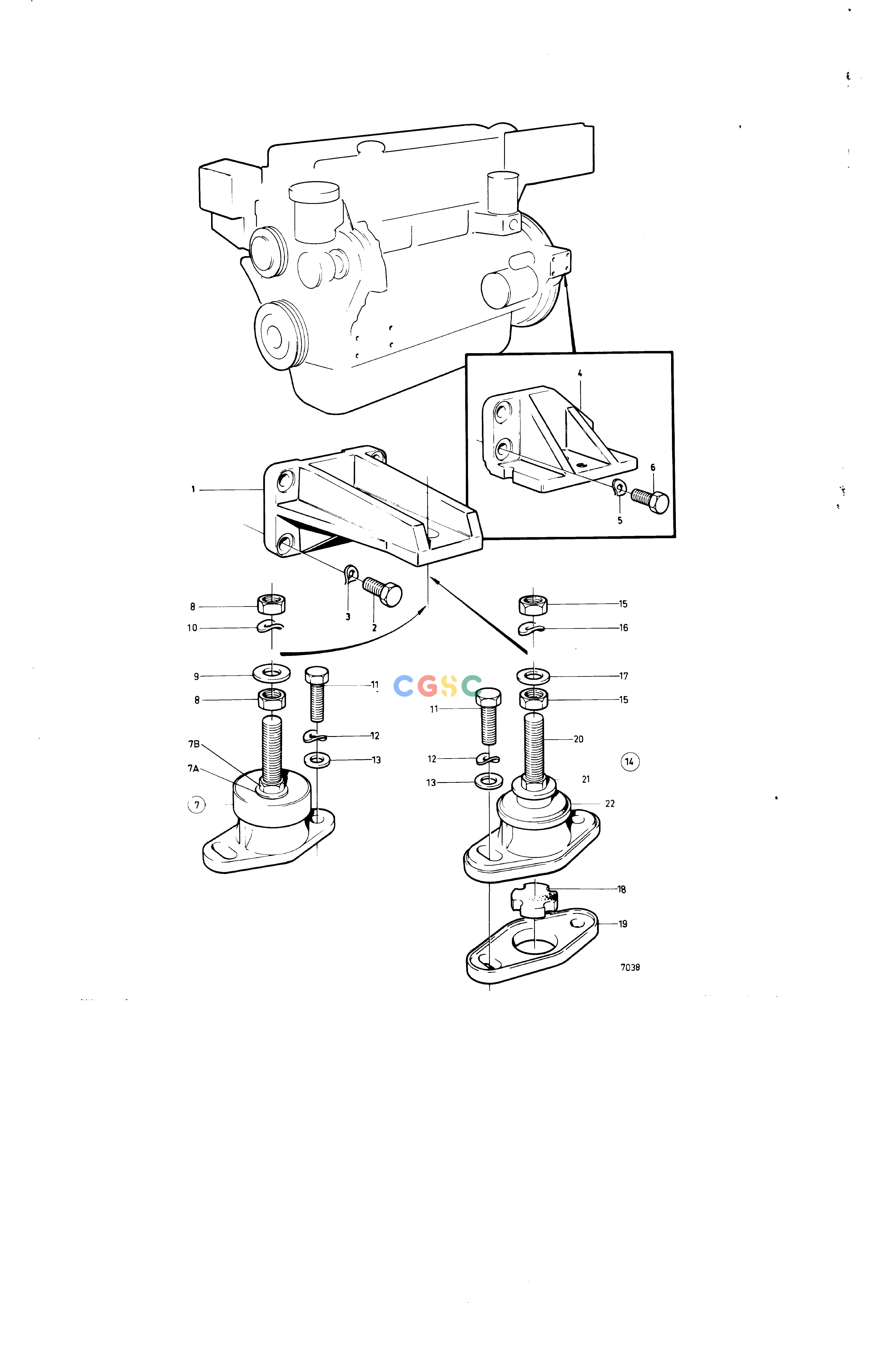

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineEngine Suspension: CEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829517
|
[2] |
Engine bracket
|
|
| 2. |
955342
|
[8] |
Hexagon screw
|
|
| 3. |
940280
|
[8] |
Spring washer
|
|
| 11. |
955321
|
[4] |
Hexagon screw
|
|
| 12. |
941908
|
[4] |
Spring washer
|
|
| 13. |
960148
|
[4] |
Washer
|
|
| 14. |
843297
|
[2] |
Rubber element
|
MO 33151-
|
| 15. |
955805
|
[4] |
Hexagon nut
|
|
| 16. |
941912
|
[2] |
Spring washer
|
|
| 17. |
191940
|
[2] |
Washer
|
|
| 18. |
843299
|
[2] |
Rubber disc
|
|
| 19. |
843286
|
[2] |
Pad
|
|
| 20. |
829567
|
[2] |
Adjusting bolt
|
|
| 21. |
843298
|
[2] |
Washer
|
|
| 22. |
843323
|
[2] |
Rubber element
|
|
