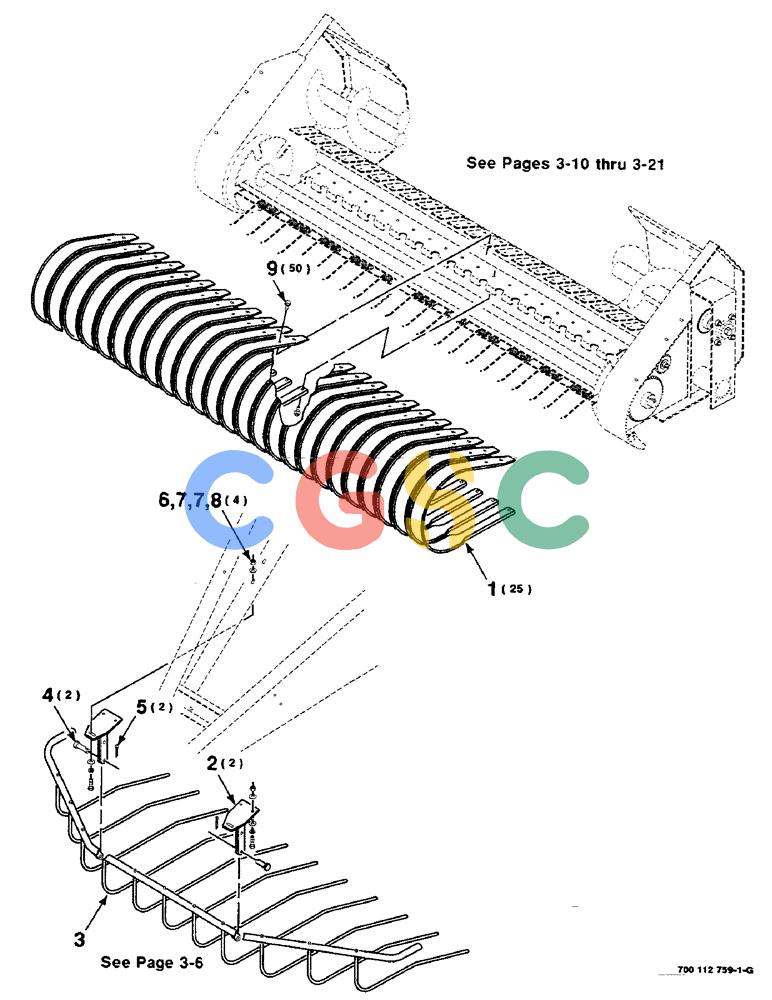

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (03-04) - WINDGUARD AND PICKUP WRAPPERS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700113244
|
[25] |
GUARD
|
CAS
WRAPPER
|
| 2. |
700113625
|
[2] |
HANGER
|
CAS
WA
|
| 3. |
700113617
|
[1] |
WINDGUARD
|
CAS
WA
|
| 4. |
427-8136
|
[2] |
CLEVIS PIN,1/2" x 1.360"
|
CAS
1/2 X 1-1/4 CLEVIS PIN Superseded by part number: 86636813
|
| 5. |
432-816
|
[2] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 6. |
413-620
|
[4] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 7. |
496-11041
|
[8] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 8. |
232-5316
|
[4] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 9. |
121-115
|
[50] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 10. |
232-5315
|
[50] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
Nut
|
