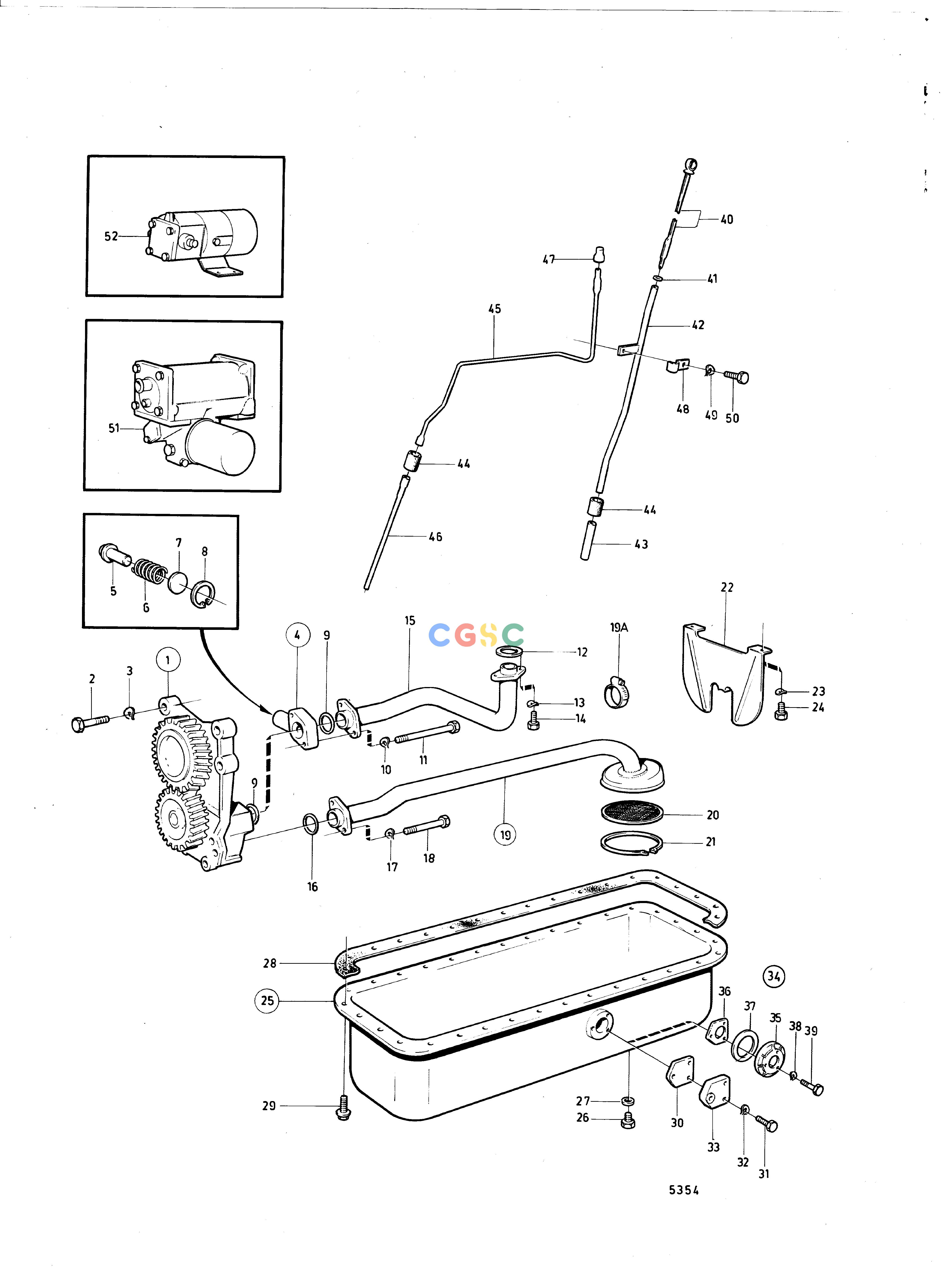

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1542210
|
[1] |
Oil pump
|
|
| 2. |
955299
|
[4] |
Hexagon screw
|
|
| 3. |
941907
|
[4] |
Spring washer
|
|
| 4. |
1542255
|
[1] |
Reduction valve
|
|
| 5. |
471115
|
[1] |
Reduction valve
|
|
| 6. |
1542257
|
[1] |
Spring
|
|
| 7. |
948343
|
[1] |
Disc
|
|
| 8. |
914506
|
[1] |
Snap ring
|
|
| 9. |
469482
|
[2] |
Sealing ring
|
(424346)
|
| 10. |
941907
|
[2] |
Spring washer
|
|
| 11. |
940129
|
[2] |
Hexagon screw
|
|
| 12. |
1542385
|
[2] |
Sealing ring
|
|
| 13. |
941907
|
[2] |
Spring washer
|
|
| 14. |
955295
|
[2] |
Hexagon screw
|
|
| 15. |
1542383
|
[1] |
Pressure pipe
|
|
| 16. |
925060
|
[1] |
O-ring
|
|
| 17. |
941907
|
[2] |
Spring washer
|
|
| 18. |
955303
|
[2] |
Hexagon screw
|
|
| 19. |
829491
|
[1] |
Suction pipe
|
|
| 19A. |
943473
|
[1] |
Hose clamp
|
|
| 20. |
403483
|
[1] |
Wire gauze
|
|
| 21. |
118123
|
[1] |
Snap ring
|
|
| 22. |
829492
|
[1] |
Baffle plate
|
|
| 23. |
942385
|
[2] |
Disc spring
|
|
| 24. |
955293
|
[2] |
Hexagon screw
|
|
| 25. |
844909
|
[1] |
Oil sump
|
(829465)
|
| 26. |
948187
|
[1] |
Plug
|
|
| 27. |
18818
|
[1] |
Gasket
|
|
| 28. |
859032
|
[1] |
Gasket
|
(1542247)
|
| 29. |
946440
|
[32] |
Flange screw
|
|
| 30. |
842928
|
[1] |
Gasket
|
MO-6246. MO6276-. MO-7826.
|
| 31. |
955294
|
[3] |
Hexagon screw
|
MO-6246. MO6276-. MO-7826.
|
| 32. |
941907
|
[3] |
Spring washer
|
MO-6246. MO6276-. MO-7826.
|
| 33. |
|
|
|
Repl by 845256
|
| 34. |
845256
|
[1] |
Cover flange
|
Excl spec 867560 867561 867562 867563 867564 867565.
|
| 35. |
845103
|
[1] |
Cover flange
|
|
| 36. |
842928
|
[2] |
Gasket
|
|
| 37. |
845104
|
[1] |
Sealing ring
|
|
| 38. |
941907
|
[3] |
Spring washer
|
|
| 39. |
955297
|
[3] |
Hexagon screw
|
|
| 40. |
829577
|
[1] |
Oil dipstick
|
|
| 41. |
949187
|
[1] |
O-ring
|
(955972)
|
| 42. |
829580
|
[1] |
Tube
|
Excl spec 867560 867561 867562 867563 867564 867565., MO-29495, Repl by 847038
|
| 42. |
847038
|
[1] |
Tube
|
MO 29496-
|
| 42. |
845347
|
[1] |
Tube
|
Spec 867560 867561 867562 867563 867564 867565
|
| 43. |
843692
|
[1] |
Tube
|
|
| 44. |
843533
|
[2] |
Rubber hose
|
|
| 45. |
829572
|
[1] |
Oil return pipe
|
|
| 46. |
829579
|
[1] |
Tube
|
|
| 47. |
943835
|
[1] |
Plug
|
|
| 48. |
121565
|
[2] |
Clamp
|
|
| 49. |
941906
|
[2] |
Spring washer
|
|
| 50. |
955269
|
[1] |
Hexagon screw
|
L=12mm
|
| 50. |
955268
|
[1] |
Hexagon screw
|
L=10mm
|
| 51. |
7744060_016
|
|
oil filter and installation comps
|
|
| 51. |
|
|
|
|
| 52. |
|
|
|
See group 9
|
