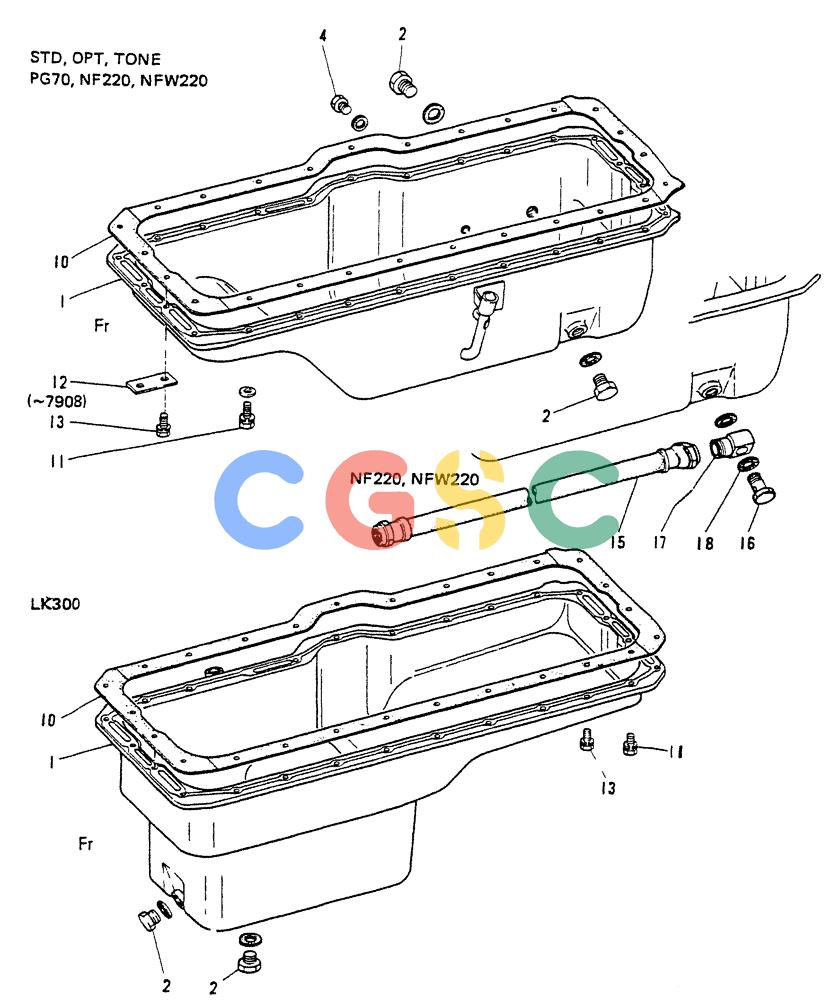

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (01-009) - OIL PAN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONOIL PAN |
| 1-4. | VA3171380031 | [1] | OIL PAN ASSY (FOR M0, M1 ONLY) (FF : SERVICE PARTS EXCLUSIVELY USED FOR MACHINERY EINGINES) | |
| 1-4. | VA3171319011 | [1] | OIL PAN ASSY (FOR M2 ONLY) (FF : SERVICE PARTS EXCLUSIVELY USED FOR MACHINERY EINGINES) | |
| 1. | VA3171380301 | [1] | PAN, OIL (FOR M0, M1 ONLY) (FF : SERVICE PARTS EXCLUSIVELY USED FOR MACHINERY EINGINES) | |
| 1. | VA3171390203 | [1] | PAN, OIL (FOR M2 ONLY) (FF : SERVICE PARTS EXCLUSIVELY USED FOR MACHINERY EINGINES) | |
| 2. | VAMH037126 | [3] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, DRAIN |
| . . | VAMH035018 | [2] | GASKET | KOBGASKET 18 |
| 4. | VAMF665005 | [1] | PLUG | KOBPLUG 16 (FOR M0, M1 ONLY), Start Year: 01-DEC-78 |
| 4. | VAMH037065 | [1] | PLUG 16 | |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 (FOR M0, M1 ONLY) Superseded by part number: VAF420216000 |
| 10. | VA3171320200 | [2] | GASKET | KOBGASKET, OIL PAN |
| 11. | VAMF241253 | [11] | SCREW | KOBBOLT, W/WASHER 8X20 |
| 12. | VA3161381400 | [1] | STAY (FOR M0, M1 ONLY), Years: -01-AUG-79 | |
| 13. | VAMF241255 | [4] | BOLT | KOBBOLT, W/WASHER 8X25 |
| 15. | VA3003622203 | [1] | HOSE, RUBBER (FOR M2 ONLY) | |
| 16. | VA3171381200 | [1] | BOLT, EYE (FOR M2 ONLY), INST. OF KN. 2 | |
| 17. | VA3171381100 | [1] | JOINT, EYE (FOR M2 ONLY) | |
| 18. | VAMF660067 | [2] | GASKET | KOBGASKET 18 (FOR M2 ONLY) Superseded by part number: F420218000 |
