神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (02-002) - CONNECTING ROD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1025 次

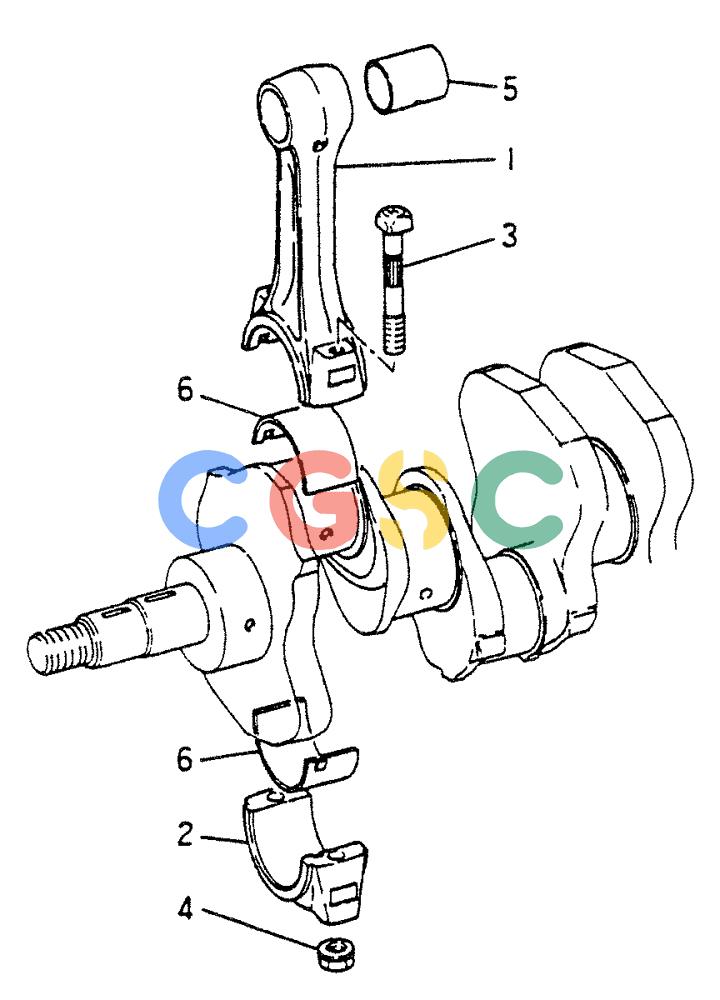

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME002028 | [6] | LINK CONROD | KOBCONNECTING ROD ASSY, Start Year: 01-JUN-80 |
| 1-5. | VAME003300 | [6] | CONNECTING ROD ASSY, Start Year: 01-JUN-79 | |
| 1-5. | VA3161900021 | [6] | CONNECTING ROD ASSY | |
| 1. | NSS | [6] | NOT SOLD SEPARAT | CONROD, CONNECTING (31619-01101) |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONCAP CONNECTING-ROD (31619-00201) |
| 3. | VAME002027 | [12] | BOLT BOLT, Start Year: 01-JUN-80 | BOLT BOLT, Start Year: 01-JUN-80 |
| 3. | VAME003301 | [12] | , Start Year: 01-JUN-79 | |
| 3. | VA3161900301 | [12] | BOLT | BOLT |
| 4. | VA3131900401 | [12] | NUT | KOBNUT |
| 5. | VA3161900700 | [6] | BUSHING | KOBBUSHING, CON-ROD |
| 6. | VAME002023 | [1] | CONN. ROD SHELL | KOBCONNECTING ROD BEARING SET STD., Start Year: 01-APR-80 |
| . . | VAME002005 | [1] | CONNECTING ROD BEARING SET STD. | |
| . . | VAME002024 | [1] | SET OF STD MAIN BRGS | KOBCONNECTING ROD BEARING SET U.S. 0.25, Start Year: 01-APR-80 |
| . . | VAME002006 | [1] | CONNECTING ROD BEARING SET U.S. 0.26 | |
| . . | VAME002025 | [1] | SET OF THRUST WASHER | KOBCONNECTING ROD BEARING SET US. 0.50, Start Year: 01-APR-80 |
| . . | VAME002007 | [1] | CONNECTING ROD BEARING SET US. 0.51 | |
| . . | VAME002026 | [1] | SET OF THRUST WASHER | KOBCONNECTING ROD BEARING SET U.S. 0.75, Start Year: 01-APR-80 |
| . . | VAME002008 | [1] | CONNECTING ROD BEARING SET U.S. 0.75 | |
| . . | NSS | [12] | NOT SOLD SEPARAT | CONBEARING, CON-ROD (ME002015), Start Year: 01-APR-80 |
