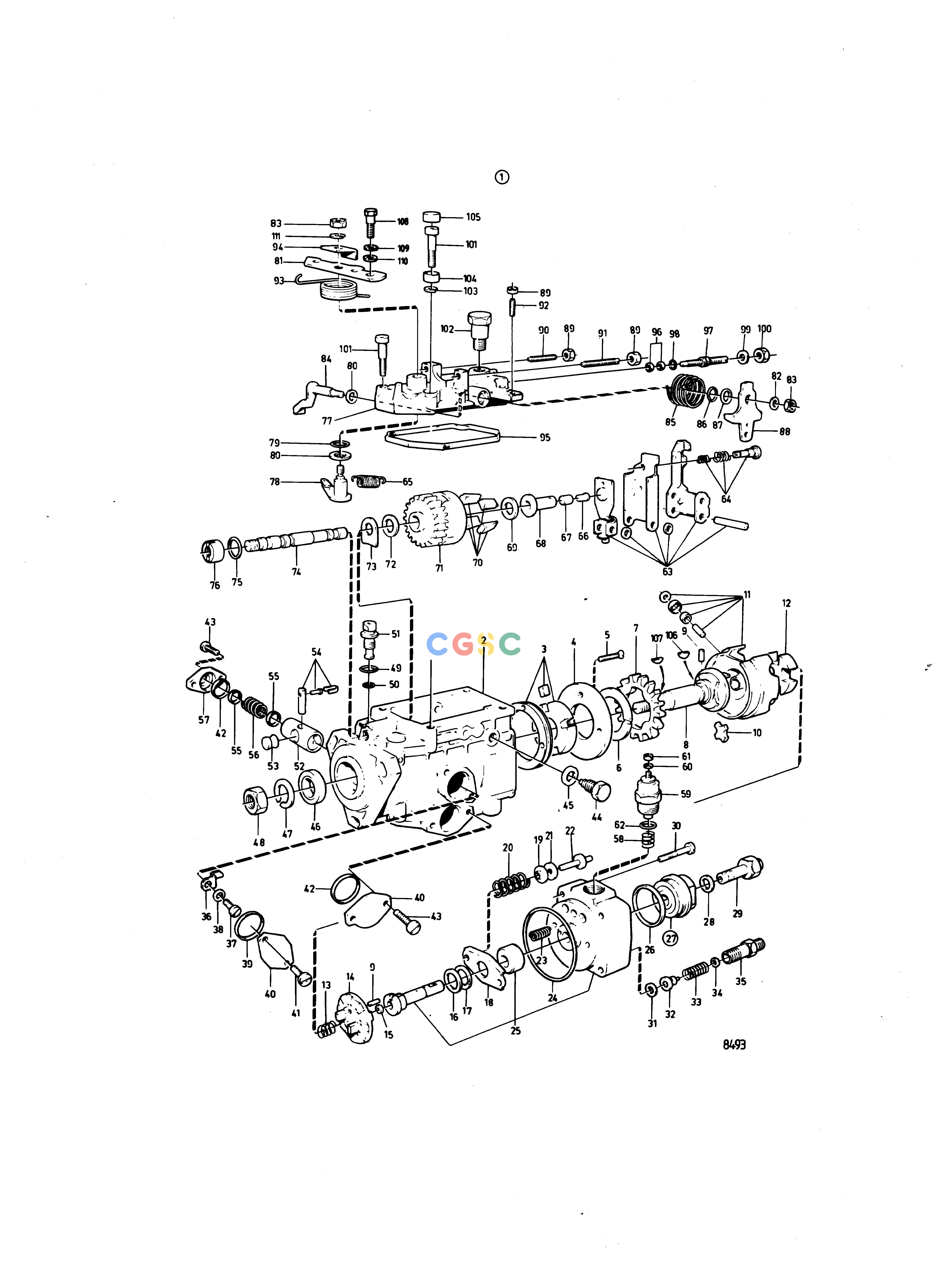

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BFuel SystemFuel Injection Pump: 829583EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
829583
|
[1] |
Injection pump
|
|
| 2. |
|
|
|
|
| 3. |
844144
|
[1] |
Rotor kit
|
|
| 4. |
844145
|
[1] |
Back-up ring
|
|
| 5. |
956169
|
[2] |
Cross recessed screw
|
|
| 6. |
844146
|
[1] |
Washer
|
|
| 7. |
844147
|
[1] |
Gear
|
|
| 8. |
844148
|
[1] |
Axle shaft
|
|
| 9. |
844651
|
[1] |
Clamping pin
|
(844149)
|
| 10. |
838453
|
[2] |
Absorber
|
|
| 11. |
844151
|
[1] |
Rotor
|
|
| 12. |
844152
|
[1] |
Washer
|
|
| 13. |
244691
|
[1] |
Spring
|
(844153)
|
| 14. |
844154
|
[1] |
Companion disc
|
|
| 15. |
243531
|
[1] |
Adjusting washer
|
TH=1,80mm
|
| 15. |
243534
|
[1] |
Adjusting washer
|
TH=1,95mm
|
| 15. |
845726
|
[1] |
Shim
|
TH=2,00mm
|
| 15. |
844155
|
[1] |
Adjusting washer
|
TH=2,12mm
|
| 15. |
844156
|
[1] |
Adjusting washer
|
TH=2,20mm
|
| 15. |
845729
|
[1] |
Shim
|
TH=2,32mm
|
| 15. |
845730
|
[1] |
Shim
|
TH=2,40mm (243543)
|
| 15. |
243545
|
[1] |
Adjusting washer
|
TH=2,50mm
|
| 15. |
844158
|
[1] |
Adjusting washer
|
TH=2,52mm
|
| 15. |
844159
|
[1] |
Adjusting washer
|
TH=2,60mm
|
| 15. |
844160
|
[1] |
Adjusting washer
|
TH=2,72mm
|
| 15. |
844161
|
[1] |
Adjusting washer
|
TH=2,80mm
|
| 16. |
243527
|
[1] |
Gasket
|
|
| 17. |
243530
|
[1] |
Gasket
|
|
| 18. |
844162
|
[1] |
Washer
|
|
| 19. |
844163
|
[1] |
Spring disc
|
|
| 20. |
844164
|
[1] |
Spring kit
|
|
| 21. |
844165
|
[2] |
Washer
|
|
| 22. |
844166
|
[2] |
Pin
|
|
| 23. |
844167
|
[1] |
Spring
|
|
| 24. |
243555
|
[1] |
Sealing ring
|
(844168)
|
| 25. |
838414
|
[1] |
Housing
|
(844169)
|
| 26. |
838402
|
[1] |
O-ring
|
(844170)
|
| 27. |
844171
|
[1] |
Fitting
|
|
| 28. |
947620
|
[1] |
Gasket
|
(233321)
|
| 29. |
845737
|
[1] |
Screw
|
Repl by 844171
|
| 30. |
244931
|
[4] |
Hex. socket screw
|
(844173)
|
| 31. |
845738
|
[6] |
Washer
|
(243562)
|
| 32. |
838442
|
[6] |
Delivery valve
|
|
| 33. |
243559
|
[6] |
Spring
|
|
| 34. |
243560
|
[6] |
Gasket
|
|
| 35. |
244688
|
[6] |
Nipple
|
(243558)
|
| 36. |
243506
|
[1] |
Direction indicator
|
|
| 37. |
956057
|
[1] |
Cross recessed screw
|
|
| 38. |
941904
|
[1] |
Spring washer
|
|
| 39. |
844176
|
[1] |
O-ring
|
|
| 40. |
844175
|
[2] |
Cover
|
|
| 41. |
956092
|
[2] |
Cross recessed screw
|
|
| 42. |
844176
|
[2] |
O-ring
|
|
| 43. |
6638096
|
[4] |
Screw
|
|
| 44. |
838345
|
[2] |
Screw
|
|
| 45. |
947620
|
[2] |
Gasket
|
|
| 46. |
844178
|
[1] |
Sealing ring
|
|
| 47. |
940280
|
[1] |
Spring washer
|
|
| 48. |
955784
|
[1] |
Hexagon nut
|
|
| 49. |
243520
|
[1] |
Sealing ring
|
|
| 50. |
243521
|
[1] |
Sealing ring
|
|
| 51. |
844179
|
[1] |
Valve
|
|
| 52. |
844180
|
[1] |
Piston
|
|
| 53. |
844181
|
[1] |
Roller
|
|
| 54. |
844182
|
[1] |
Piston bolt kit
|
|
| 55. |
244425
|
[2] |
Adjusting washer
|
|
| 56. |
844184
|
[1] |
Spring
|
|
| 57. |
844185
|
[1] |
Flange
|
|
| 58. |
844186
|
[1] |
Spring
|
|
| 59. |
|
|
|
|
| 60. |
25261
|
[1] |
Washer
|
|
| 61. |
838406
|
[1] |
Nut
|
|
| 62. |
243572
|
[1] |
O-ring
|
|
| 63. |
844188
|
[1] |
Lever
|
|
| 64. |
844189
|
[1] |
Screw
|
|
| 65. |
844190
|
[1] |
Tension spring
|
|
| 66. |
844191
|
[1] |
Pin
|
L=7,2mm alt
|
| 66. |
844192
|
[1] |
Pin
|
L=7,4mm alt
|
| 66. |
844193
|
[1] |
Pin
|
L=7,6mm alt
|
| 66. |
844194
|
[1] |
Pin
|
L=7,8mm alt
|
| 66. |
844195
|
[1] |
Pin
|
L=8,0mm alt
|
| 66. |
844196
|
[1] |
Pin
|
L=8,2mm alt
|
| 66. |
844197
|
[1] |
Pin
|
L=8,4mm alt
|
| 66. |
844198
|
[1] |
Pin
|
L=8,6mm alt
|
| 66. |
844199
|
[1] |
Shim
|
L=8,8mm alt
|
| 66. |
844200
|
[1] |
Plug
|
L=9,0mm alt
|
| 66. |
844201
|
[1] |
Pin
|
L=9,2mm alt
|
| 66. |
844202
|
[1] |
Pin
|
L=9,4mm alt
|
| 66. |
844203
|
[1] |
Pin
|
L=9,6mm alt
|
| 66. |
844204
|
[1] |
Pin
|
L=9,8mm alt
|
| 66. |
844205
|
[1] |
Plug
|
L=10,0mm alt
|
| 66. |
844206
|
[1] |
Pin
|
L=10,2mm alt
|
| 66. |
844207
|
[1] |
Pin
|
L=10,4mm alt
|
| 66. |
844208
|
[1] |
Pin
|
L=10,6mm alt
|
| 67. |
844209
|
[1] |
Pin
|
|
| 68. |
844210
|
[1] |
Sleeve
|
|
| 69. |
844211
|
[1] |
Spacer washer
|
|
| 70. |
844212
|
[1] |
Set of weights
|
|
| 71. |
844213
|
[1] |
Control wheel
|
|
| 72. |
844214
|
[1] |
Washer
|
|
| 72. |
845750
|
[1] |
Washer
|
TH=1,30mm
|
| 72. |
845751
|
[1] |
Washer
|
TH=1,35mm
|
| 73. |
838451
|
[1] |
Washer
|
|
| 74. |
844216
|
[1] |
Shaft
|
|
| 75. |
844235
|
[1] |
O-ring
|
|
| 76. |
844217
|
[1] |
Nut
|
|
| 77. |
838454
|
[1] |
Cover
|
|
| 78. |
838341
|
[1] |
Shaft
|
|
| 79. |
243567
|
[1] |
Sealing ring
|
|
| 80. |
844220
|
[2] |
Washer
|
|
| 81. |
838342
|
[1] |
Fork kit
|
|
| 82. |
941906
|
[2] |
Spring washer
|
|
| 83. |
955781
|
[1] |
Hexagon nut
|
|
| 84. |
844222
|
[1] |
Shaft
|
|
| 85. |
844223
|
[1] |
Spring
|
|
| 86. |
844224
|
[1] |
O-ring
|
|
| 87. |
844225
|
[1] |
Washer
|
|
| 88. |
844226
|
[1] |
Lever
|
|
| 89. |
955781
|
[4] |
Hexagon nut
|
|
| 90. |
1277235
|
[1] |
Stud
|
|
| 91. |
844228
|
[1] |
Stud
|
|
| 92. |
844229
|
[1] |
Stud
|
|
| 93. |
844230
|
[1] |
Spring
|
|
| 94. |
838407
|
[1] |
Lever
|
|
| 95. |
845785
|
[1] |
Gasket
|
(844232)
|
| 96. |
|
|
|
|
| 97. |
1257677
|
[1] |
Screw
|
L=26mm
|
| 97. |
1257679
|
[1] |
Screw
|
L=28mm
|
| 98. |
844235
|
[1] |
O-ring
|
|
| 99. |
25703
|
[1] |
Washer
|
|
| 100. |
845784
|
[1] |
Nut
|
|
| 101. |
243851
|
[4] |
Screw
|
|
| 102. |
844237
|
[1] |
Hollow screw
|
|
| 103. |
843166
|
[1] |
Washer
|
|
| 104. |
844238
|
[1] |
Protecting sleeve
|
|
| 105. |
844239
|
[1] |
Protective cap
|
|
| 106. |
844293
|
[1] |
Key
|
|
| 107. |
25464
|
[1] |
Key
|
|
| 108. |
838408
|
[1] |
Screw
|
|
| 109. |
941906
|
[1] |
Spring washer
|
|
| 110. |
955892
|
[1] |
Washer
|
|
| 111. |
941906
|
[1] |
Spring washer
|
|
| 111. |
844240
|
[1] |
Gasket kit
|
|
