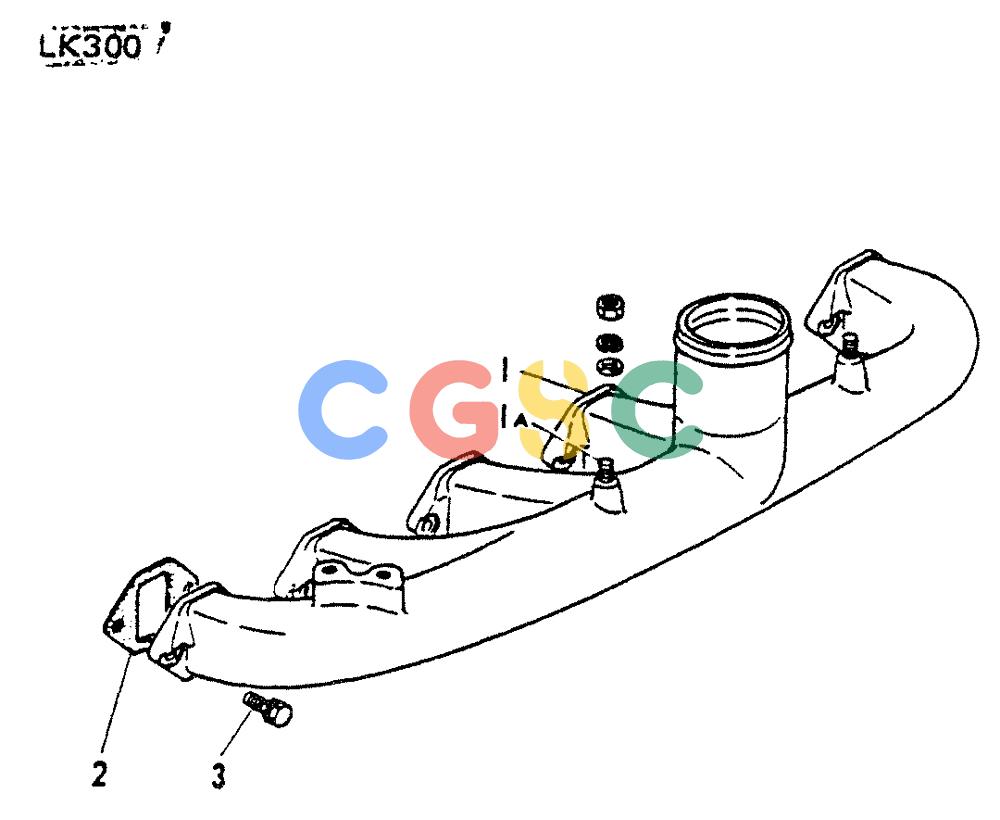

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (04-001[02]) - INLET SYSTEM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
676 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-1B. | VA3173021200 | [1] | INLET MANIFOLD ASSY (FOR M0 ONLY), Start Serial: 7901- | |
| 1-1B. | VA3173011200 | [1] | INLET MANIFOLD ASSY | |
| 1-1B. | VA3173011101 | [1] | INLET MANIFOLD ASSY (FOR M0 ONLY) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD INLET (FOR M0 ONLY) (31730-21211), Start Serial: 7901- |
| 1A. | VAMF403803 | [2] | STUD 8X16 | |
| 1B. | VAMF403805 | [4] | STUD 8X20 (FOR M0 ONLY), Start Serial: 7901- | |
| 2. | VA3133000409 | [6] | GASKET | KOBGASKET INLET MANIFOLD Superseded by part number: VAME001634 |
| 3. | VAMF243653 | [12] | BOLT W/WASHER 8X25 (FOR M0 ONLY) | |
| 3A. | VAMF243661 | [2] | BOLT, W/WASHER 8X50 (FOR M0 ONLY) | |
| 5. | VA3173080200 | [1] | SUPPORT AIR CLEANER (FOR M0 ONLY), Start Serial: 7901- | |
| 6. | VA3173012500 | [1] | STAY L.H. (FOR M0 ONLY), Serial Range: --7812 | |
| 7. | VA3173012600 | [1] | STAY R.H. (FOR M0 ONLY), Serial Range: --7812 | |
| 8. | VAMF244855 | [4] | BOLT | KOBBOLT W/WASHER 8X30 (FOR M0 ONLY), Start Serial: 7901- |
| . . | VAMF100080 | [2] | BOLT 10X14 (FOR M0 ONLY) | |
| . . | VAMF430006 | [2] | NUT | KOBNUT 10 (FOR M0 ONLY), Serial Range: --7812 Superseded by part number: VAF230510000 |
| . . | VAMF450406 | [2] | WASHER | KOBWASHER, SPRING 10 (FOR M0 ONLY), Serial Range: --7812 |
| 9. | VA3171215100 | [4] | SPACER 2=10 (FOR M0 ONLY), Start Serial: 7901- | |
| 15. | VAME021976 | [1] | GASKET | KOBGASKET (FOR M0 ONLY) |
| 16. | V3173080100 | [1] | COUPLER, INLET (FOR M0 ONLY), Start Serial: 7901- | |
| . . | VA3173013200 | [1] | SPACER | |
| 17. | VAMF430005 | [4] | NUT | KOBNUT 8 (FOR M0 ONLY), Start Serial: 7901- Superseded by part number: VAF230008000 |
| . . | VAMF240055 | [1] | BOLT, W/WASHER 8X25 | |
| . . | VAMF450405 | [4] | WASHER | KOBWASHER, SPNNA 8 (FOR M0 ONLY), Start Serial: 7901- Superseded by part number: 132502A1 |
| 22. | VAME027128 | [1] | AIR CLEANER | KOBAIR CLEANER ASSY (FOR M0 ONLY), Start Serial: 8010~ |
| 22. | VA3113011601 | [1] | AIR CLEANER ASSY 7901, Start Serial: ~ | |
| 22. | VA3083005041 | [1] | AIR CLEANER ASSY | |
