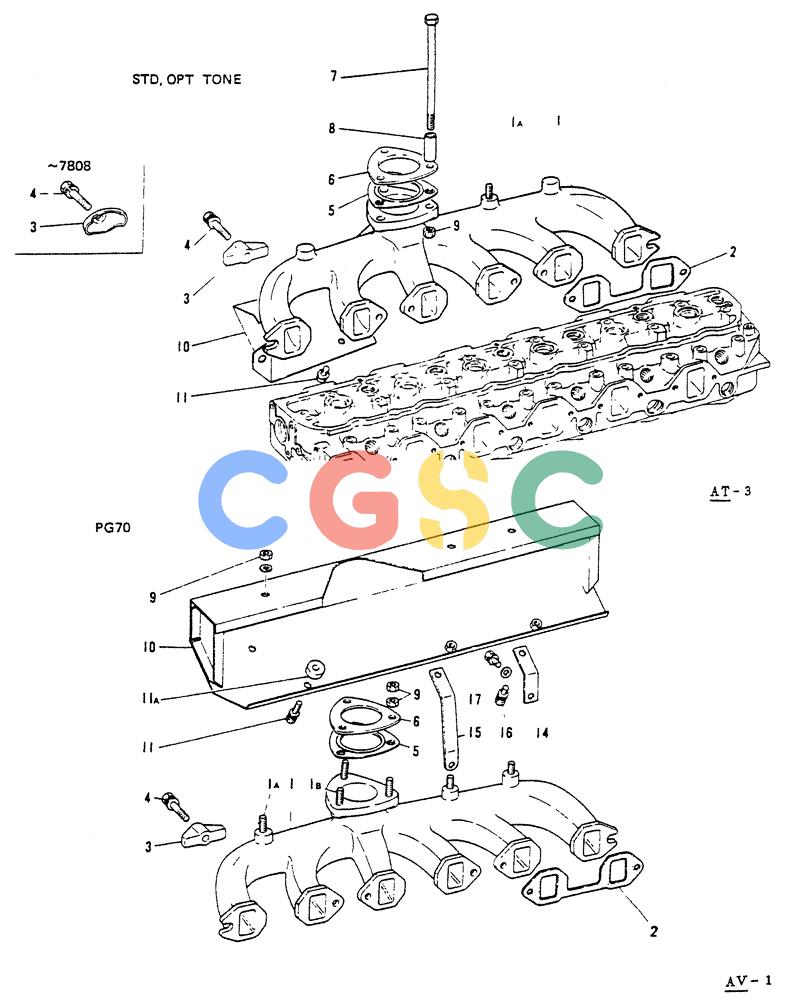

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (04-003) - EXHAUST SYSTEM P/N VAME008705 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-1B. | VAME008705 | [1] | EXHAUST MANIFOLD ASSY, (31432-17104)(FOR M0 ONLY) | |
| 1-1B. | VAME008706 | [1] | EXHAUST MANIFOLD ASSY, (31732-81100) (FOR M1 ONLY) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, EXHAUST, (ME008710) (FOR M0 ONLY) |
| 1A. | VAMF406284 | [1] | STUD 10X20 (FOR M0 ONLY) | |
| 1B. | VAMF406288 | [3] | STUD | SMSTUD 10X30 (FOR M1 ONLY) |
| 2. | VA3133200500 | [3] | GASKET | KOBGASKET Superseded by part number: VAME001418 |
| 3. | VAME029089 | [3] | BRIDGE | KOBBRIDGE, Start Serial: 7809- |
| 3. | VAME020535 | [1] | BRIDGE | KOBBRIDGE Superseded by part number: VAME029089 |
| 4. | VAMH000245 | [3] | BOLT | KOBBOLT, W/WASHER 10X58 |
| 4. | VAMF300012 | [1] | BOLT BOLT, W/WASHER 10X55 | BOLT BOLT, W/WASHER 10X55 |
| 5. | VAME023738 | [1] | GASKET | KOBGASKET (FOR M0, M1 ONLY), Start Serial: 7904- Superseded by part number: VAME032584 |
| 5. | VAME020534 | [1] | GASKET | KOBGASKET Superseded by part number: VAME032584 |
| 6. | VAMC470533 | [1] | FLANGE | KOBFLANGE (FOR M0, M1 ONLY), Start Serial: 8001- |
| 6. | VAMC430013 | [1] | FLANGE | |
| 7. | VAMH000196 | [3] | BOLT (FOR M0 ONLY) | |
| 8. | VAME023198 | [3] | SPACER (FOR M0 ONLY) | |
| 9. | VAMH004007 | [3] | NUT | KOBNUT (FOR M0 ONLY) Superseded by part number: 134868A1 |
| . . | VAMF450006 | [3] | NUT | KOBWASHER, PLAIN 10 (FOR M1 ONLY) Superseded by part number: 133247A1 |
| 10. | VA3173290000 | [1] | INSULATOR, HEAT (FOR M0 ONLY) | |
| 10. | VA3173281700 | [1] | INSULATOR, HEAT (FOR M1 ONLY) | |
| 11. | VAMH000392 | [2] | BOLT | KOBBOLT 8X12 (FOR M0 ONLY), Start Serial: 7906- |
| 11. | VAMH000128 | [1] | BOLT 3X16 | |
| . . | VAMF243653 | [2] | BOLT W/WASHER 8X25 (FOR M1 ONLY) | |
| . . | VAMF450005 | [2] | WASHER | KOBPLAIN 8 (FOR M0 ONLY), Serial Range: -~7905 |
| 11A. | VA3166881300 | [2] | SPACER (FOR M1 ONLY) | |
| 14. | VA3173281800 | [1] | STAY A (FOR M1 ONLY) | |
| 15. | VA3173281900 | [1] | STAY B (FOR M1 ONLY) | |
| 16. | VAMF243649 | [2] | BOLT | KOBBOLT W/WASHER 8X16 (FOR M1 ONLY) |
| 17. | VAMF240053 | [2] | BOLT | KOBBOLT W/WASHER 8X20 (FOR M1 ONLY) |
