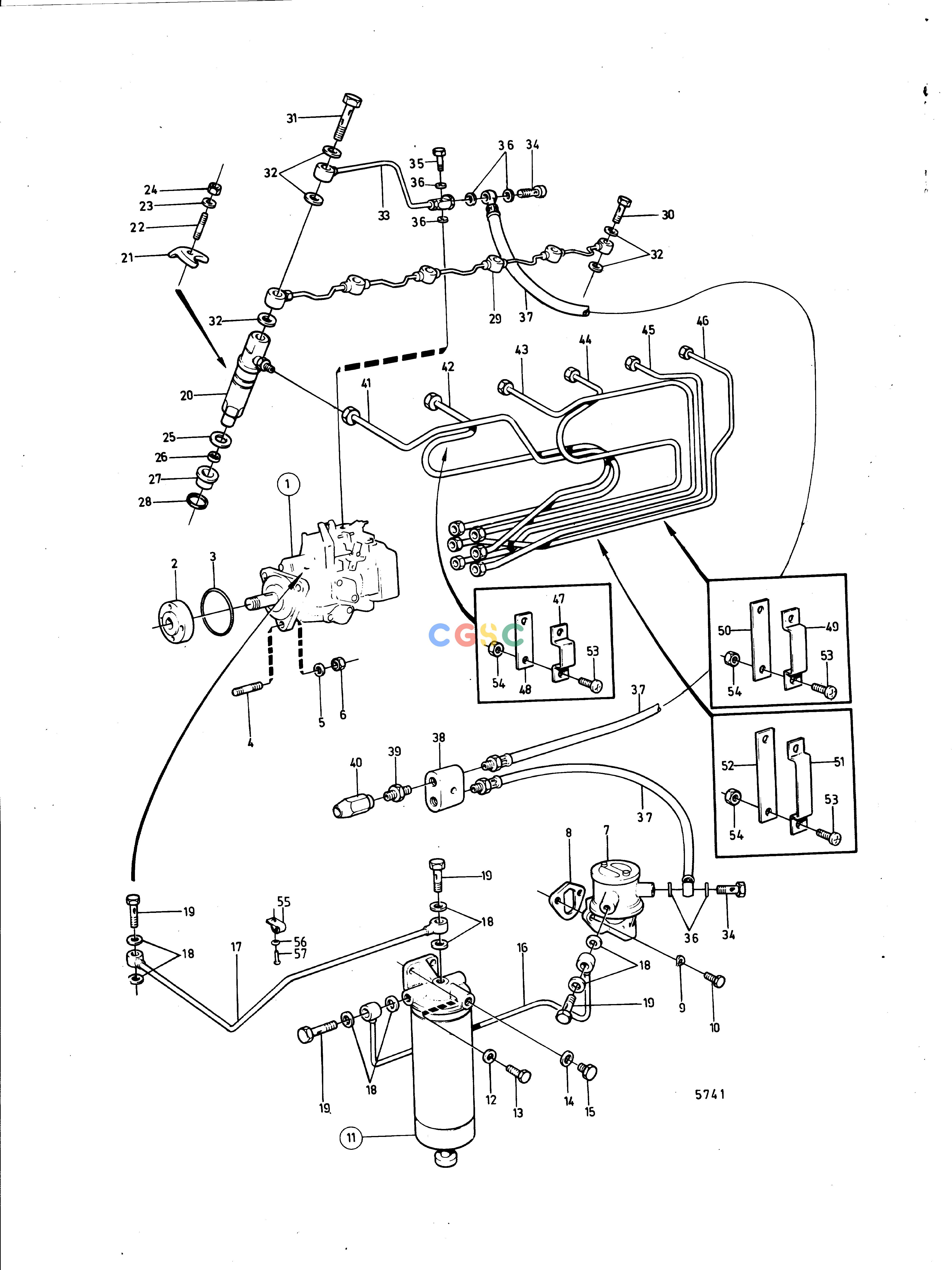

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
233 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845280
|
[1] |
Injection pump
|
For spec 867560, 867562, 867563, 867565
|
| 1. |
845281
|
[1] |
Injection pump
|
For spec 867561, 867564
|
| 2. |
1542171
|
[1] |
Hub
|
|
| 3. |
947314
|
[1] |
O-ring
|
|
| 4. |
953046
|
[3] |
Stud
|
|
| 5. |
955894
|
[3] |
Washer
|
|
| 6. |
955782
|
[3] |
Hexagon nut
|
|
| 7. |
1542170
|
[1] |
Fuel pump
|
|
| 7. |
273663
|
[1] |
Repair kit
|
|
| 8. |
463392
|
[1] |
Gasket
|
|
| 9. |
941907
|
[2] |
Spring washer
|
|
| 10. |
955295
|
[2] |
Hexagon screw
|
|
| 11. |
1542209
|
[1] |
Fuel filter
|
Repl by 838472
|
| 11. |
838472
|
[1] |
Fuel filter
|
|
| 12. |
960148
|
[2] |
Washer
|
See group 2D
|
| 13. |
955318
|
[2] |
Hexagon screw
|
See group 2D
|
| 14. |
18839
|
[2] |
Gasket
|
For 1542209
|
| 15. |
960629
|
[2] |
Plug
|
For 1542209
|
| 16. |
1542277
|
[1] |
Fuel pipe
|
|
| 17. |
1542278
|
[1] |
Fuel pipe
|
|
| 18. |
11994
|
[8] |
Gasket
|
|
| 19. |
74040
|
[4] |
Hollow screw
|
|
| 20. |
1542155
|
[6] |
Injector
|
|
| 20. |
3803239
|
[6] |
Injector
|
|
| 21. |
1542156
|
[6] |
Yoke
|
|
| 22. |
924068
|
[6] |
Stud
|
|
| 23. |
1542197
|
[6] |
Washer
|
|
| 24. |
955782
|
[6] |
Hexagon nut
|
|
| 25. |
1542159
|
[6] |
Washer
|
|
| 26. |
1542158
|
[6] |
Washer
|
|
| 27. |
1542154
|
[6] |
Heat shield
|
|
| 28. |
1542157
|
[6] |
Washer
|
|
| 29. |
1542167
|
[1] |
Leak-off pipe
|
|
| 30. |
74033
|
[5] |
Hollow screw
|
|
| 31. |
74034
|
[1] |
Hollow screw
|
|
| 32. |
957171
|
[13] |
Gasket
|
|
| 33. |
845647
|
[1] |
Return line
|
|
| 34. |
74040
|
[2] |
Hollow screw
|
|
| 35. |
844237
|
[1] |
Hollow screw
|
Included in fuel injection pump.
|
| 36. |
48588
|
[6] |
Gasket
|
|
| 37. |
845646
|
[2] |
Fuel hose
|
|
| 38. |
829146
|
[1] |
Fitting
|
|
| 39. |
954337
|
[2] |
Nipple
|
|
| 40. |
954323
|
[2] |
Fitting nut
|
|
| 41. |
1542111
|
[1] |
Delivery pipe
|
Cyl no. 1
|
| 42. |
1542112
|
[1] |
Delivery pipe
|
Cyl no. 2
|
| 43. |
1542113
|
[1] |
Delivery pipe
|
Cyl no. 3
|
| 44. |
1542114
|
[1] |
Delivery pipe
|
Cyl no. 4
|
| 45. |
1542115
|
[1] |
Delivery pipe
|
Cyl no. 5
|
| 46. |
1542116
|
[1] |
Delivery pipe
|
Cyl no. 6
|
| 47. |
1542109
|
[3] |
Clamp
|
|
| 48. |
466761
|
[3] |
Clamp
|
|
| 49. |
1542369
|
[1] |
Clamp
|
|
| 50. |
1542370
|
[1] |
Clamp
|
|
| 51. |
1542371
|
[1] |
Clamp
|
|
| 52. |
1542372
|
[1] |
Clamp
|
|
| 53. |
956092
|
[6] |
Cross recessed screw
|
|
| 54. |
955781
|
[6] |
Hexagon nut
|
|
| 55. |
942400
|
[1] |
Clamp
|
|
| 56. |
941908
|
[1] |
Spring washer
|
|
| 57. |
955314
|
[1] |
Hexagon screw
|
|
