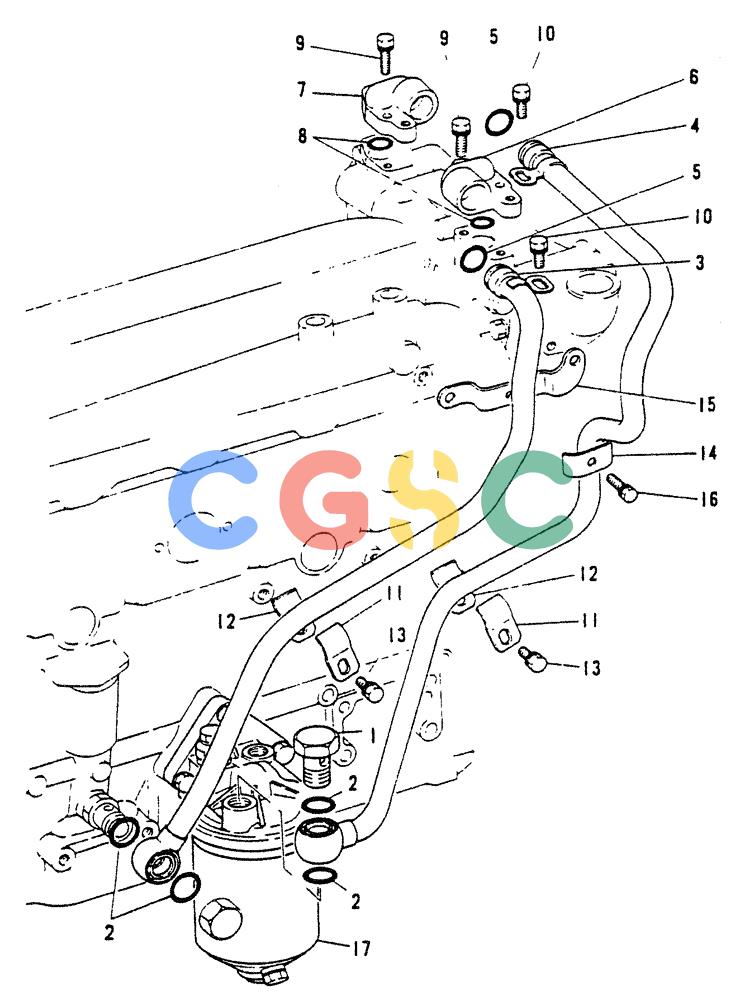

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (05-003) - OIL PIPING P/N VA3173615601 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3173615601 | [1] | BOLT | KOBBOLT, EYE (FOR M0 ONLY) |
| 2. | VA3114001800 | [4] | O-RING (FOR M0 ONLY) | |
| 3. | VA3173615100 | [1] | PIPE | KOBPIPE, OII, CRANKCASE OIL COOLER (FOR M0 ONLY) |
| 4. | VA3173615200 | [1] | PIPE | KOBPIPE, OIL, OIL COOLER-OIL FILTER (FOR M0 ONLY) |
| 5. | VA3173613700 | [2] | O-RING | KOBO-RING (FOR M0 ONLY) Superseded by part number: VAMH035017 |
| 6. | VA3173613800 | [1] | CONNECTOR, INLET (FOR M0 ONLY) | |
| 7. | VA3173613900 | [1] | CONNECTOR, OUTLET (FOR M0 ONLY) | |
| 8. | VAMH035017 | [2] | O-RING | KOBO-RING (FOR M0 ONLY) |
| 9. | VAMF243655 | [4] | BOLT | KOBBOLT W/WASHER 8X30 (FOR M0 ONLY) |
| 10. | VAMF243651 | [2] | BOLT | KOBBOLT W/WASHER 8X20 (FOR M0 ONLY) |
| 11. | VA3173614600 | [2] | STAY A (FOR M0 ONLY) | |
| 12. | VA3173614700 | [2] | STAY B (FOR M0 ONLY) | |
| 13. | VAMF243652 | [2] | BOLT W/WASHER 8X22 (FOR M0 ONLY) | |
| 14. | VA3173614800 | [1] | CLAMP (FOR M0 ONLY) | |
| 15. | VA3173615500 | [1] | STAY OIL PIPE (FOR M0 ONLY) | |
| 16. | VAMF243651 | [1] | BOLT | KOBBOLT W/WASHER 6X32 (FOR M0 ONLY) |
| 17. | NSS | [4] | NOT SOLD SEPARAT | CONOIL FILTER ASSY, (FOR M0 ONLY), SEE FIG. 05-006, 05-006 |
