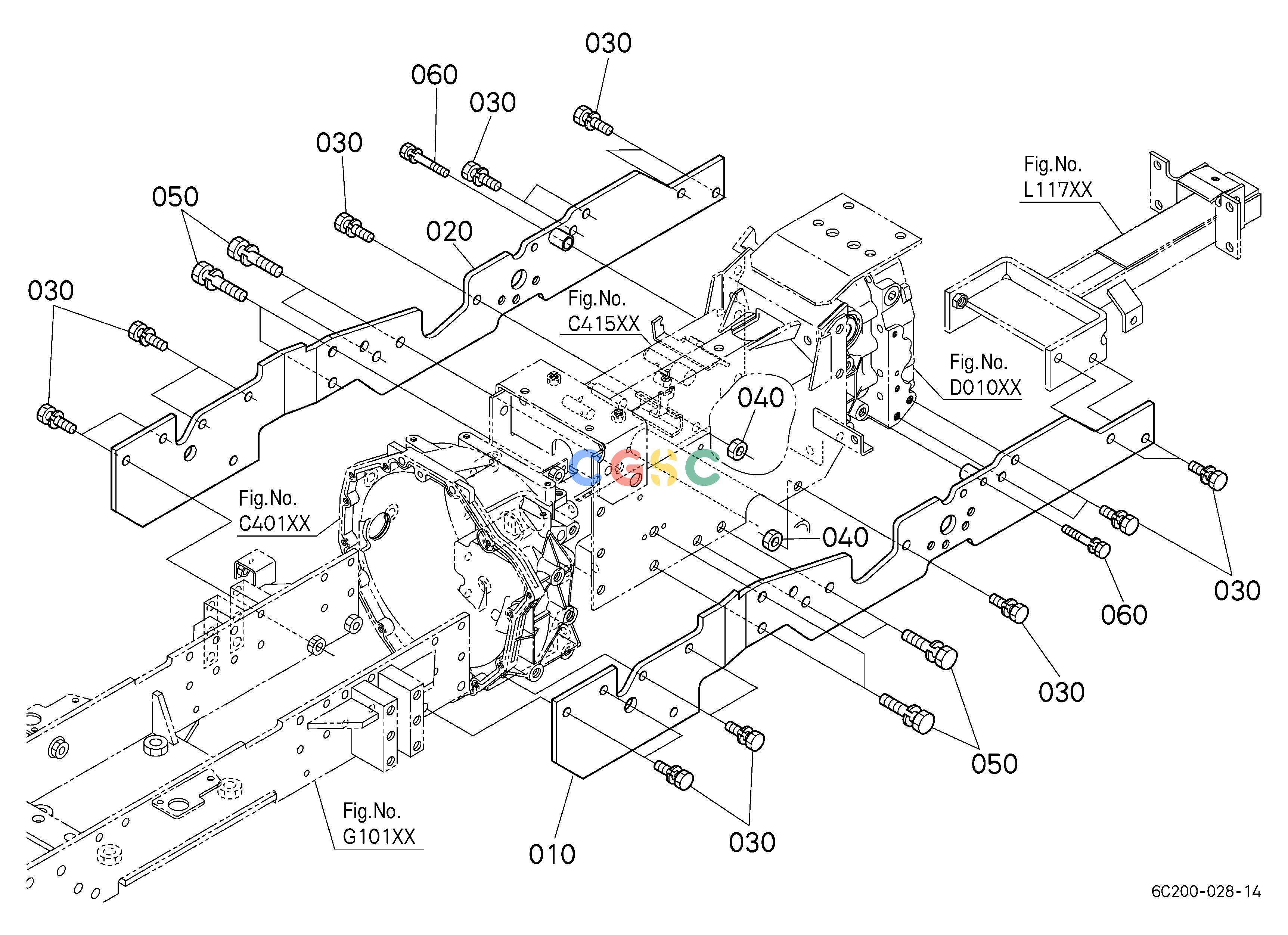

久保田零件查询C41700 SUB FRAME CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20051132
|
[1] |
SUB FRAME,L
|
17.7540(lbs); 8.070
|
| 010. |
6C20051133
|
[1] |
SUB FRAME,L
|
17.2480(lbs); 7.840
|
| 010. |
6C20051134
|
[1] |
SUB FRAME,L
|
17.2480(lbs); 7.840
|
| 010. |
6C20051135
|
[1] |
SUB FRAME,L
|
17.2480(lbs); 7.840
|
| 020. |
6C20051142
|
[1] |
SUB FRAME,R
|
17.9080(lbs); 8.140
|
| 020. |
6C20051143
|
[1] |
SUB FRAME,R
|
17.0720(lbs); 7.760
|
| 020. |
6C20051144
|
[1] |
SUB FRAME,R
|
17.0720(lbs); 7.760
|
| 020. |
6C20051145
|
[1] |
SUB FRAME,R
|
17.0720(lbs); 7.760
|
| 030. |
0112351235
|
[18] |
BOLT,SEMS
|
0.0902(lbs); 0.041
|
| 040. |
0211450120
|
[2] |
HEX.NUT
|
0.0242(lbs); 0.011
|
| 050. |
0113351450
|
[8] |
BOLT,SEMS
|
0.1738(lbs); 0.079
|
| 060. |
0112351055
|
[2] |
BOLT,SEMS
|
0.0836(lbs); 0.038
|
