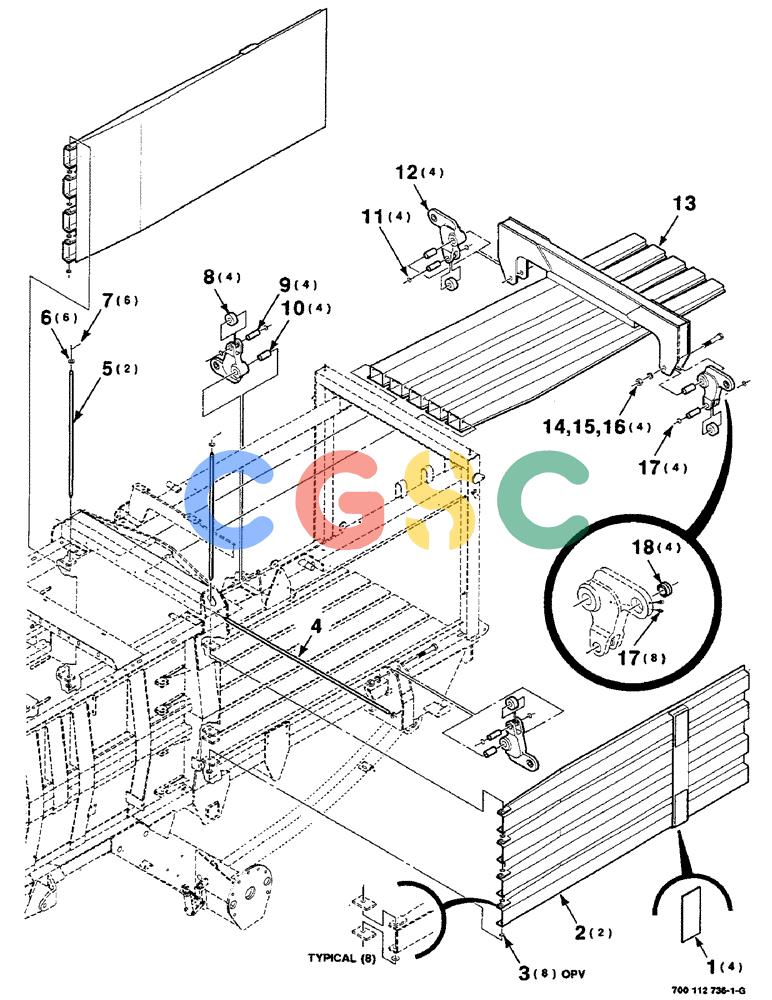

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (07-04) - BALE DENSITY DOORS AND ARMS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
753 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6529317
|
[4] |
LARGE PLATE
|
CAS
PLATE - wear
|
| 2. |
700113586
|
[2] |
DOOR
|
CAS
WA (Includes Item 1)
|
| 3. |
95-81182
|
[8] |
WASHER,0.81" ID x 1.25" OD x 0.07" Thk
|
CAS
3/4 X 14 GAUGE NRMB
|
| 4. |
6529432
|
[1] |
PIN
|
CAS
- top
|
| 5. |
700113609
|
[2] |
PIN
|
CAS
- side
|
| 6. |
705566
|
[6] |
WASHER
|
IH
3/4 HARDENED PLAIN WASHER
|
| 7. |
432-1620
|
[6] |
COTTER PIN,1/4" x 1 1/4"
|
CAS
Pin, Split (Cotter), 1/4" x 1 1/4" Superseded by part number: 87402
|
| 8. |
700113614
|
[4] |
ROLLER
|
CAS
|
| 9. |
700113615
|
[4] |
PIN
|
CAS
|
| 10. |
6529408
|
[4] |
BUSHING
|
CAS
|
| 11. |
103-16125
|
[4] |
SNAP RING,#125, Ext
|
CAS
Ring, Snap, #125, Ext Superseded by part number: 86625148
|
| 12. |
700113610
|
[4] |
ARM
|
CAS
ASSEMBLY (Includes Items 17 and 18)
|
| 13. |
700113577
|
[1] |
DOOR
|
CAS
WA - upper
|
| 14. |
413-1688
|
[4] |
BOLT,Hex, 1" - 8 x 5-1/2", Gr 5
|
CAS
1-8 X 5-1/2 C
|
| 15. |
192-171
|
[4] |
LOCK WASHER,1"
|
CAS
WASHER, LOCK, 1" Superseded by part number: 92-21100
|
| 16. |
425-1016
|
[4] |
NUT,1"-8, G5
|
CAS
Superseded by part number: 9849633
|
| 17. |
219-8
|
[12] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 18. |
D22200
|
[4] |
BEARING,25.4mm ID x 36.5mm OD x 22.23mm L
|
CAS
BUSHING Superseded by part number: 87659928
|
