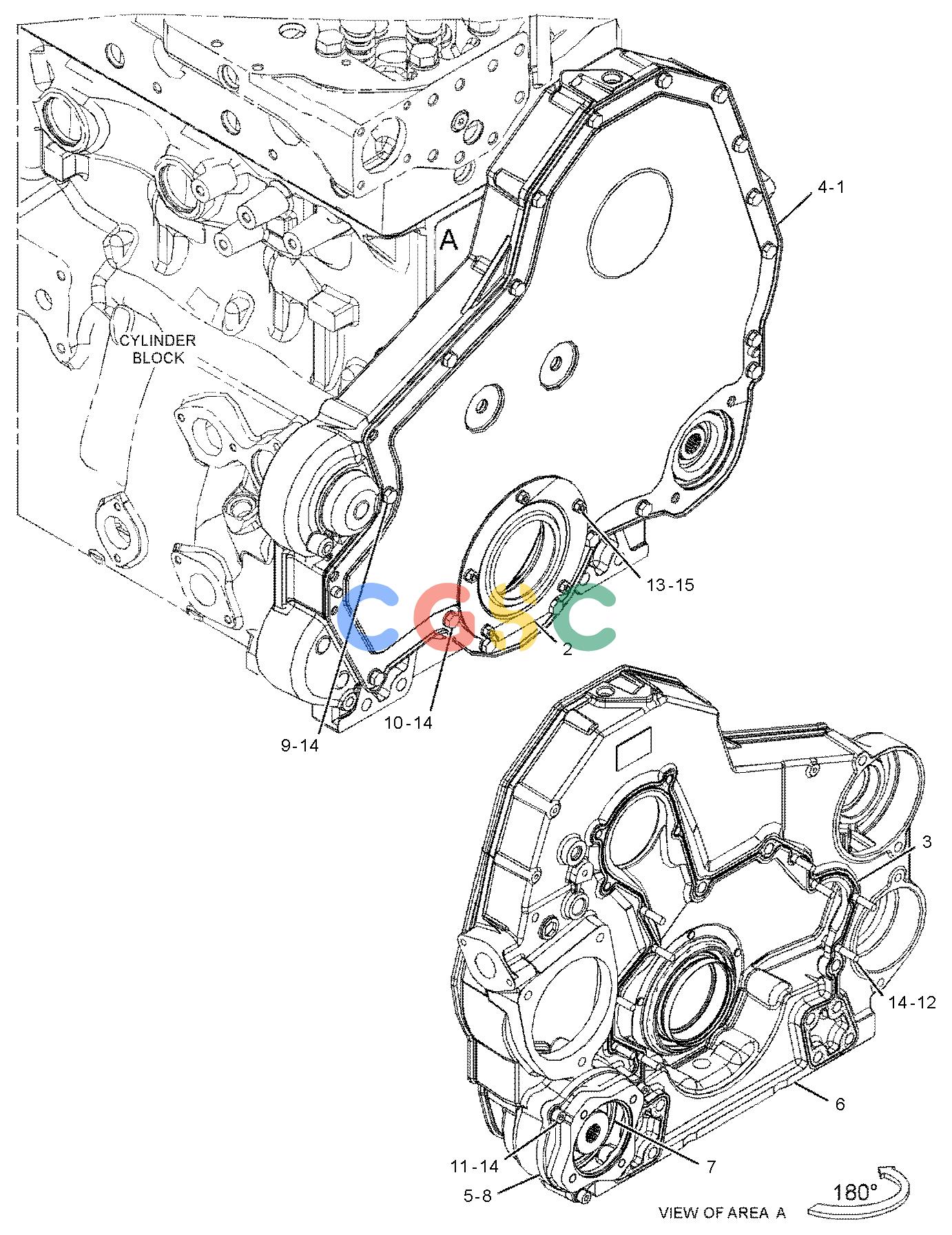

卡特零件查询（730） 361-4680: HOUSING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 223-7852 | [1] | SEAL-INTEGRAL | |
| 2. | 226-4755 | [1] | SEAL GP-CRANKSHAFT | |
| | 169-4166 | [1] | SEAL GP-CRANKSHAFT | |
| | 220-3373 | [1] | SEAL-RING | |
| 3. | 257-2015 | [1] | GASKET | |
| 4. | 278-7093 | [1] | COVER AS | |
| 5. | 251-4314 | [1] | ADAPTER | |
| 6. | 361-4681 | [1] | HOUSING AS-FRONT | |
| | 6V-3535 | [2] | DOWEL | |
| 7. | 362-3273 | [1] | GEAR AS-DRIVE | |
| | 5P-6727 | [1] | BALL BEARING | |
| | 8H-9789 | [1] | BALL BEARING | |
| | 361-5603 | [1] | GEAR-AUXILIARY DRIVE(39-TEETH) | |
| 8. | 117-8801 | [1] | SEAL-O-RING | |
| 9. | 3E-8016M | [1] | BOLT-SELF-LOCKING(M8X1.25X25-MM) | |
| 10. | 6V-2317M | [17] | BOLT(M8X1.25X30-MM) | |
| 11. | 6V-5192M | [3] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 12. | 6V-5219M | [9] | BOLT(M8X1.25X40-MM) | |
| 13. | 6V-8225M | [5] | NUT(M6X1-THD) | |
| 14. | 9M-1974 | [30] | WASHER-HARD(8.8X16X2-MM THK) | |
| 15. | 9X-8267 | [5] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
