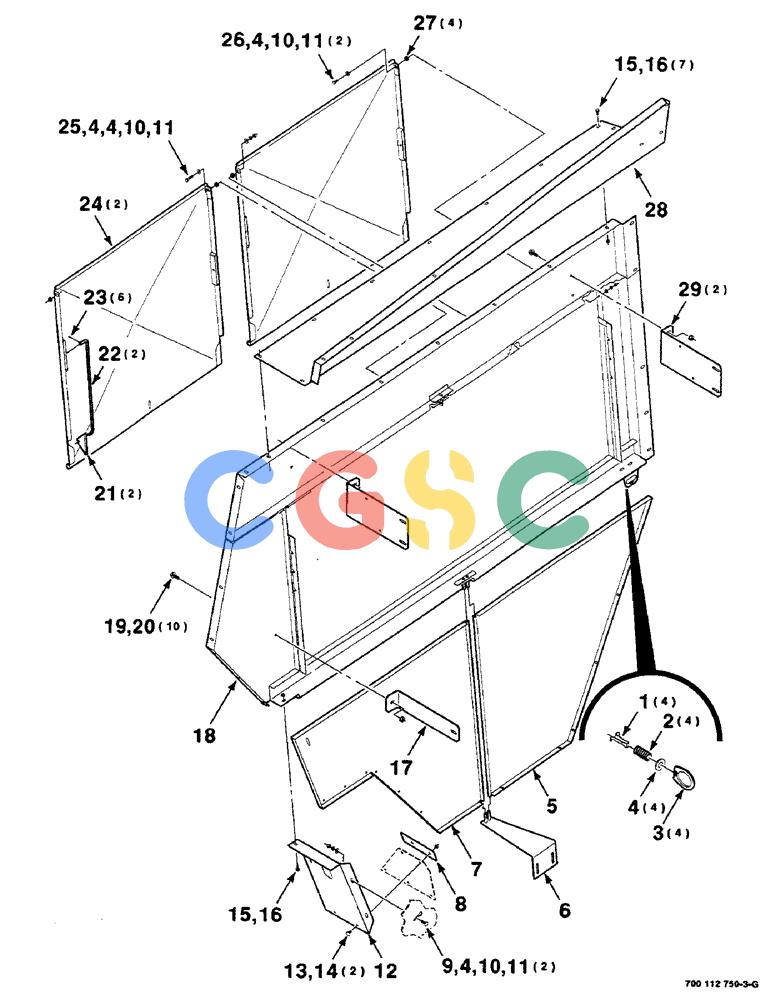

| 1. |
7894975
|
[4] |
CLIP
|
CAS
- fastener
|
| 2. |
7758212
|
[4] |
SPRING
|
CAS
- compression
|
| 3. |
7894967
|
[4] |
HANDLE
|
CAS
- fastener
|
| 4. |
496-21034
|
[10] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 5. |
700113983
|
[1] |
SHIELD
|
CAS
- right Superseded by part number: 700121704
|
| 6. |
700113997
|
[1] |
SUPPORT
|
CAS
WA
|
| 7. |
700113981
|
[1] |
SHIELD
|
CAS
- lower, right Superseded by part number: 700121702
|
| 8. |
700121497
|
[1] |
STRAP
|
CAS
|
| 9. |
111-237
|
[2] |
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
|
CAS
BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5 Superseded by part number: 33-516
|
| 10. |
492-11031
|
[5] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 11. |
425-105
|
[5] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 12. |
700113996
|
[1] |
SHIELD
|
CAS
- right Superseded by part number: 700121706
|
| 13. |
433-512
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 14. |
230-4115
|
[2] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 15. |
121-115
|
[8] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 16. |
231-5145
|
[8] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 17. |
700113990
|
[1] |
ANGLE
|
CAS
- lower
|
| 18. |
700113955
|
[1] |
FRAME
|
CAS
SHIELD WA - right (S.N. CFH0139001 thru CFH0139499) Superseded by part number: 700121696
|
| . . |
700150693
|
[1] |
SHIELD
|
HFI
WA - right (S.N. CFH0139500 and Later) Superseded by part number: 700152208
|
| 19. |
121-226
|
[10] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 20. |
231-5146
|
[10] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 21. |
700113992
|
[2] |
GUIDE
|
CAS
|
| 22. |
700113991
|
[2] |
ROD
|
CAS
- door
|
| 23. |
432-812
|
[6] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
PIN, SPLIT (COTTER), 1/8" x 3/4" Superseded by part number: 80756
|
| 24. |
700113975
|
[2] |
DOOR
|
CAS
WA Superseded by part number: 700121712
|
| 25. |
413-520
|
[1] |
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
|
CAS
5/16-18 X 1-1/4 C Superseded by part number: 87657
|
| 26. |
413-512
|
[2] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
C Hex, 5/16"-18 x 3/4", G5, Full Thd Superseded by part number: 72187196, 87872
|
| 27. |
6514772
|
[4] |
SPACER
|
CAS
|
| 28. |
700133640
|
[1] |
SHIELD
|
HFI
- right Superseded by part number: 700152205
|
| 29. |
700113989
|
[2] |
ANGLE
|
CAS
|
