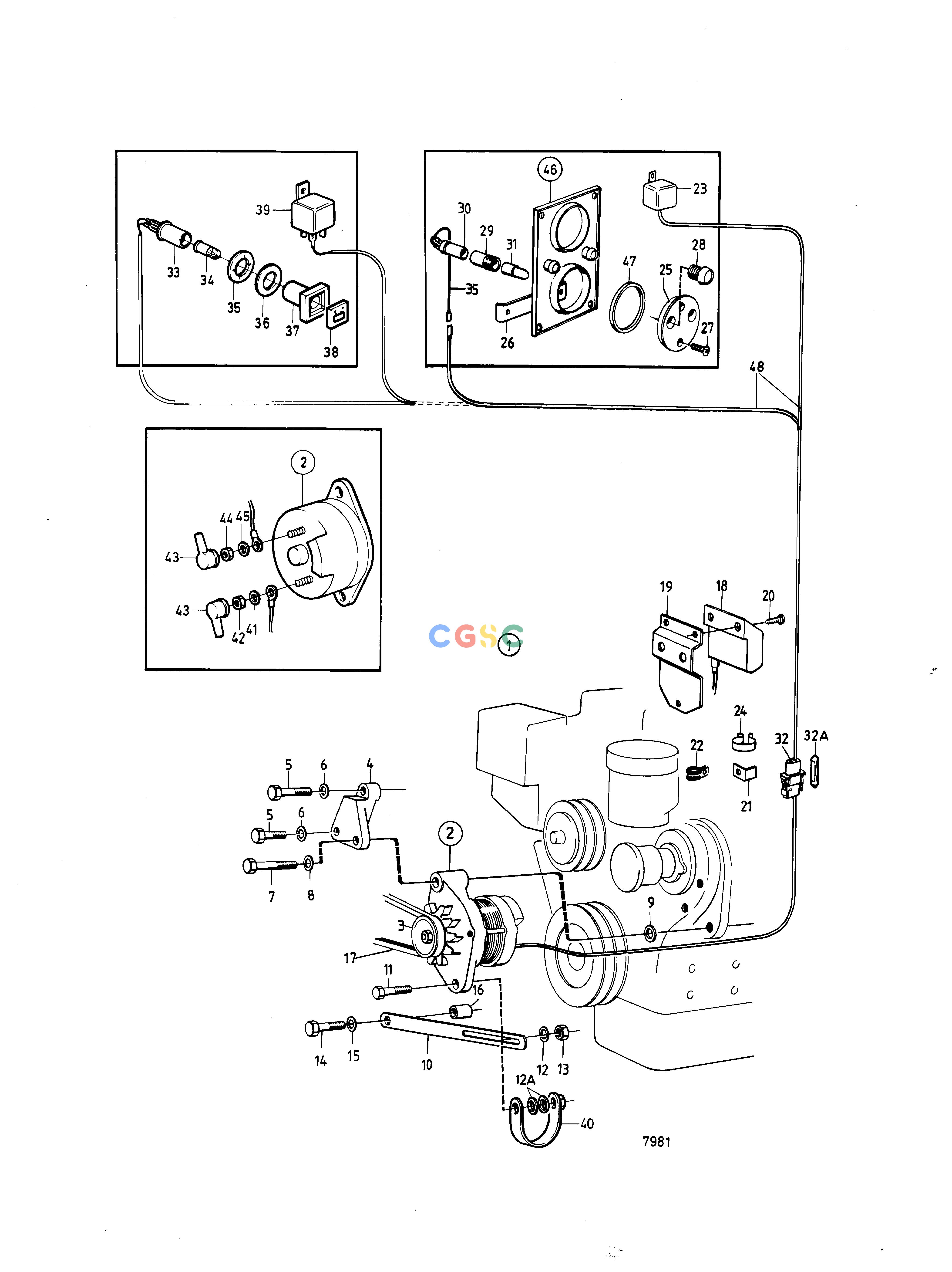

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentAlternator Kit: 843056EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843056
|
[1] |
Alternator kit
|
12V 35A., Repl by 846387
|
| 2. |
834610
|
[1] |
Alternator
|
Replaced by alternator 834965., Early type
|
| 2. |
|
|
|
|
| 2. |
841380
|
[1] |
Alternator
|
Replaced by alternator 841770., MO189757-
|
| 2. |
841770
|
[1] |
Alternator
|
|
| 3. |
834646
|
[1] |
Pulley
|
Included in alternator 841770
|
| 4. |
843057
|
[1] |
Bracket
|
|
| 5. |
940129
|
[1] |
Hexagon screw
|
L=90mm
|
| 5. |
955302
|
[1] |
Hexagon screw
|
L=60mm
|
| 6. |
941907
|
[2] |
Spring washer
|
|
| 7. |
955701
|
[1] |
Hexagon screw
|
|
| 8. |
955896
|
[1] |
Washer
|
|
| 9. |
843054
|
[1] |
Spacer washer
|
|
| 10. |
843055
|
[1] |
Tensioner
|
|
| 11. |
955298
|
[1] |
Hexagon screw
|
|
| 12. |
191172
|
[1] |
Washer
|
|
| 13. |
963106
|
[1] |
Lock nut
|
|
| 14. |
940129
|
[1] |
Hexagon screw
|
|
| 15. |
941907
|
[1] |
Spring washer
|
|
| 16. |
843075
|
[1] |
Spacer sleeve
|
|
| 17. |
958310
|
[1] |
V-belt
|
|
| 25. |
843871
|
[1] |
Cover washer
|
|
| 26. |
843872
|
[1] |
Brace
|
|
| 27. |
944540
|
[2] |
Screw
|
|
| 28. |
1140031
|
[2] |
Socket pipe
|
(827776)
|
| 29. |
819350
|
[2] |
Sleeve
|
|
| 30. |
808175
|
[1] |
Bulb socket
|
|
| 31. |
19923
|
[1] |
Bulb
|
|
| 46. |
843604
|
[1] |
Instrument panel
|
|
| 47. |
843603
|
[1] |
Intermediate ring
|
|
| 48. |
|
|
|
See group 3
|
