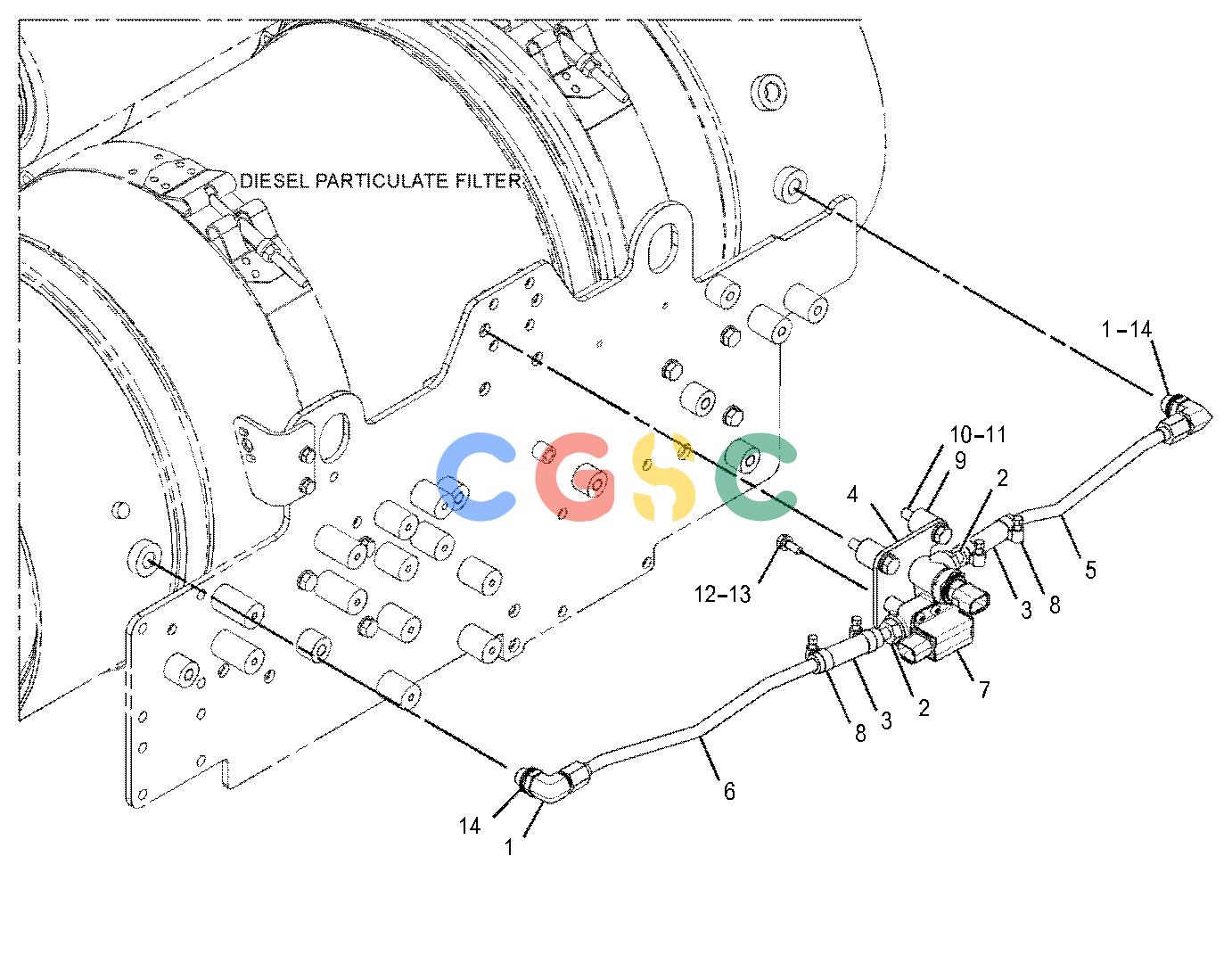

卡特零件查询（730） 415-8022: SENSOR & MTG GP-PRESSURE
广数供应链运营团队, 15 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 216-7951 | [2] | ADAPTER-ELBOW | |
| 2. | 385-5773 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5P-1046 | [1] | CONNECTOR | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 3. | 415-2415 | [2] | HOSE-AIR | |
| 4. | 415-8023 | [1] | PLATE | |
| 5. | 415-8024 | [1] | TUBE AS | |
| 6. | 415-8025 | [1] | TUBE AS | |
| 7. | 415-8044Y | [1] | SENSOR GP-PRESSURE(DPF DIFFERENTIAL) | |
| 8. | 124-6275 | [4] | CLAMP-HOSE | |
| 9. | 164-0150 | [3] | SPACER(9X20X20-MM THK) | |
| 10. | 311-8366 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 11. | 338-8453M | [3] | BOLT(M8X1.25X40-MM) | |
| 12. | 344-1200 | [2] | WASHER-HARD(6.6X12X2-MM THK) | |
| 13. | 344-1206M | [2] | BOLT(M6X1X16-MM) | |
| 14. | 7W-3556 | [2] | WASHER(14.27X20.57X1.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
