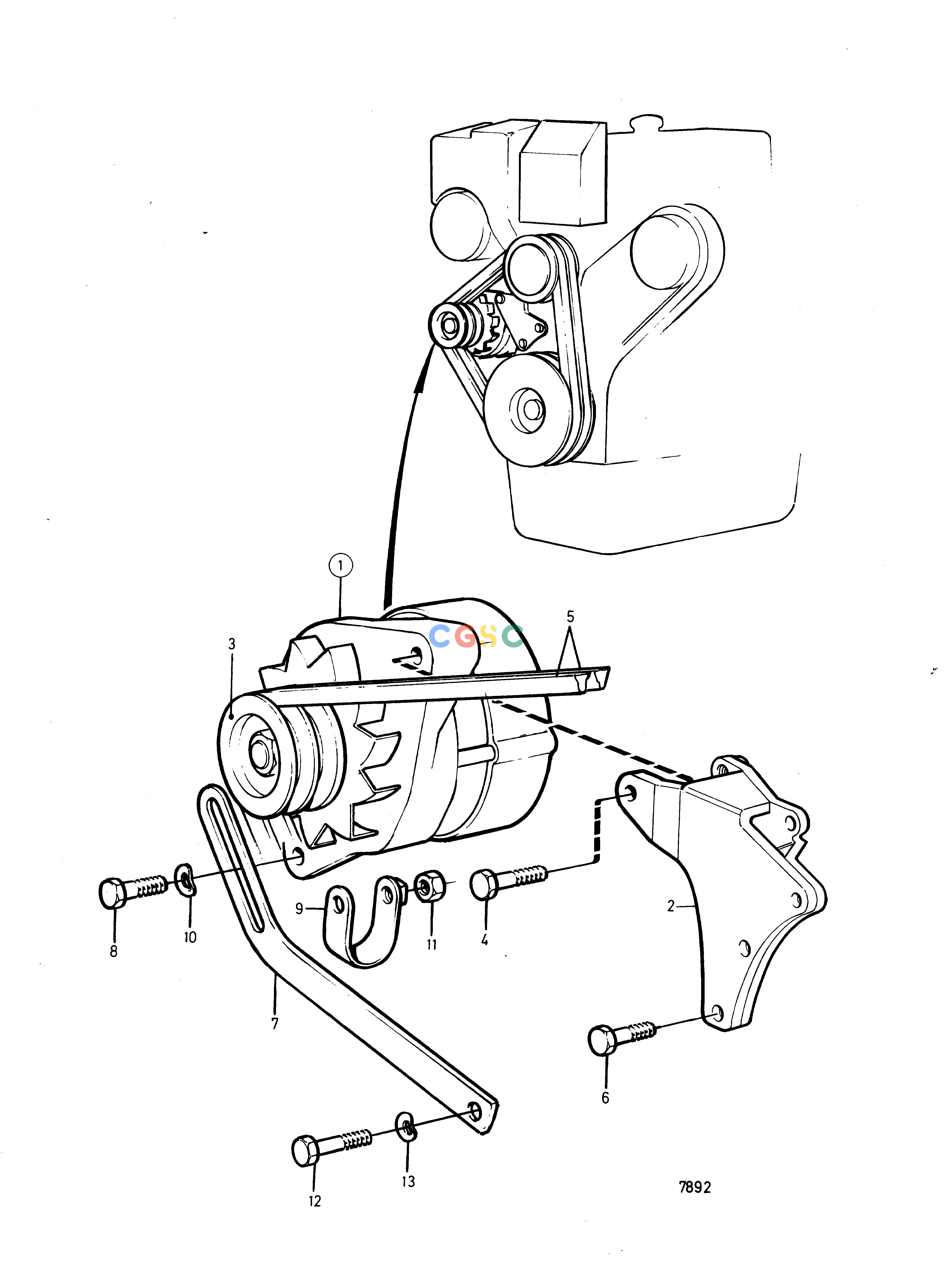

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentAlternator with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845940
|
[1] |
Alternator
|
|
| 1. |
|
|
|
|
| 1. |
849563
|
[1] |
Alternator
|
|
| 2. |
858079
|
[1] |
Bracket
|
|
| 3. |
|
|
|
See group 2A
|
| 4. |
955554
|
[1] |
Hexagon screw
|
|
| 5. |
|
|
|
See group 2B
|
| 6. |
965182
|
[2] |
Flange screw
|
L=80mm
|
| 6. |
100222
|
[1] |
Hexagon screw
|
L=85mm
|
| 6. |
965179
|
[1] |
Flange screw
|
L=50mm
|
| 7. |
845021
|
[1] |
Tensioner
|
|
| 8. |
955298
|
[1] |
Hexagon screw
|
|
| 9. |
466735
|
[1] |
Tensioning loop
|
|
| 10. |
191172
|
[1] |
Washer
|
|
| 11. |
963106
|
[1] |
Lock nut
|
|
| 12. |
|
|
|
|
| 13. |
941907
|
[1] |
Spring washer
|
|
