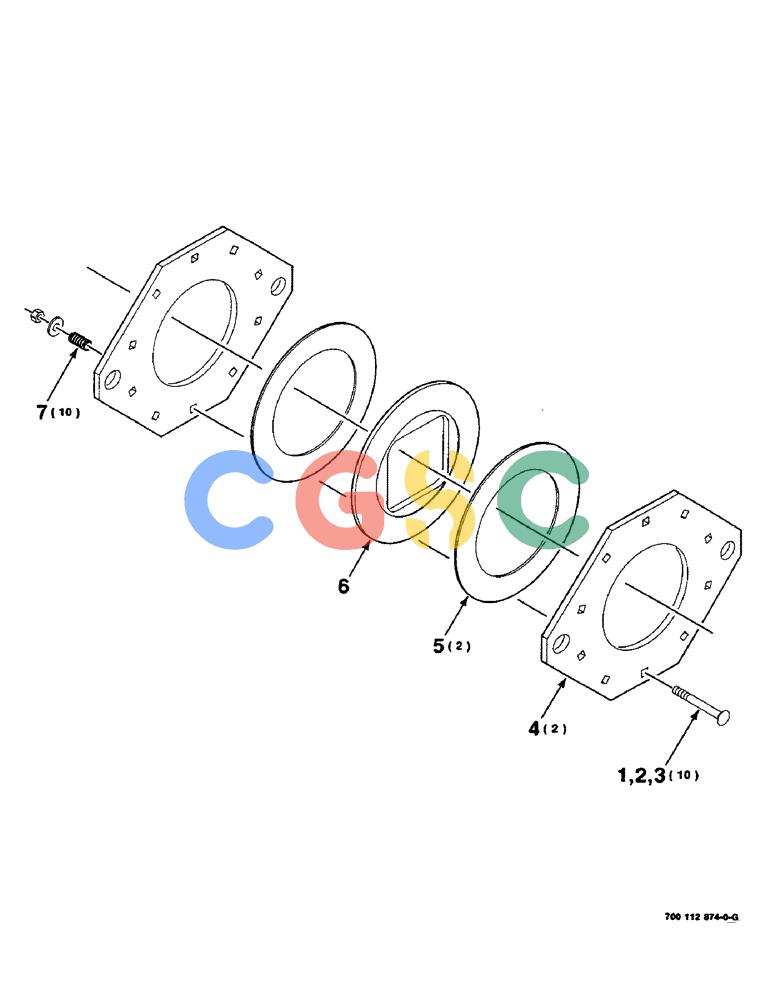

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (05-12) - BRAKE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
549 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-656
|
[10] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5
|
CAS
3/8-16 X 3-1/2 RHSNB Superseded by part number: 280348
|
| 2. |
495-21044
|
[10] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 3. |
231-1406
|
[10] |
LOCK NUT,3/8"-16, GB
|
CAS
3/8-16 LHSN
|
| 4. |
6818561
|
[2] |
PLATE
|
CAS
- press
|
| 5. |
700710946
|
[2] |
CLUTCH PLATE
|
CAS
DISC - clutch
|
| 6. |
700112875
|
[1] |
BRAKE DISC,112mm ID x 228mm OD x 10.3mm Thk
|
CAS
DISC - brake
|
| 7. |
758011
|
[10] |
SPRING
|
CAS
- compression
|
