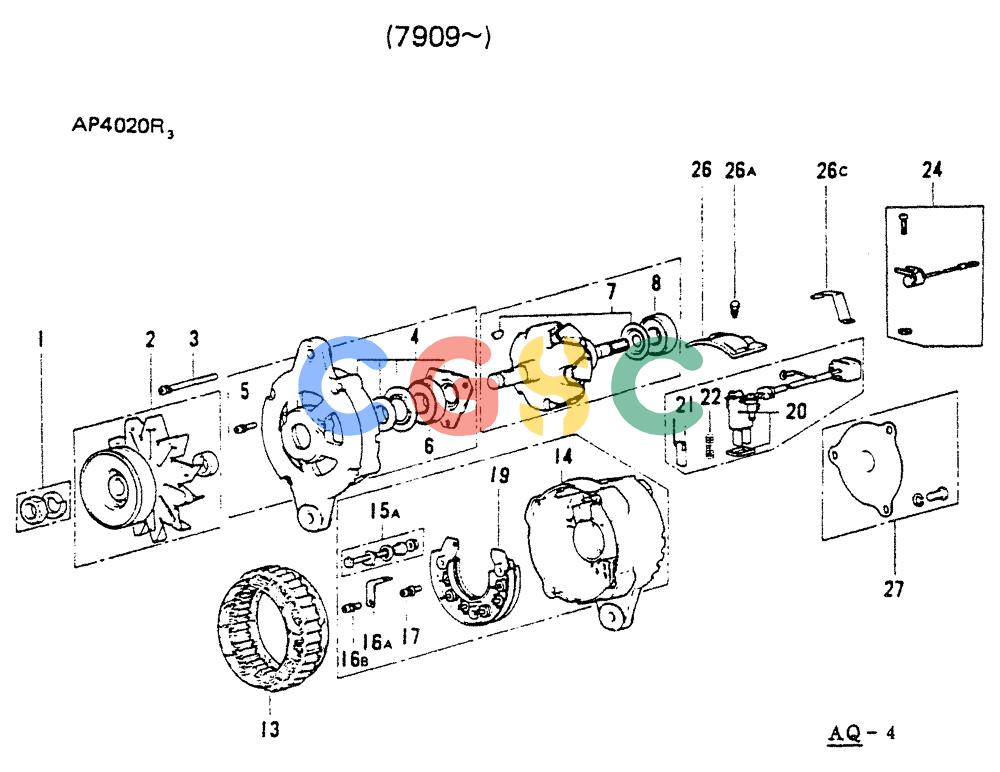

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (08-005) - GENERATOR (7909-) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-27. | VAME951852 | [1] | GENERATOR | KOBASSY (24V-20A) AP4020R3(SERVICE PARTS EXCLUSIVELY USED FOR INDUSTRIAL MACHINERY ENGINE) (FOR M0 ONLY) |
| 1. | VA529X04971 | [1] | NUT SET(M.E.C No.) (FOR M0 ONLY) | |
| 2. | VA628T28971 | [1] | PULLEY ASSY (FOR M0 ONLY) | |
| 3. | VA414X14971 | [1] | SCREW SET (FOR M0 ONLY) | |
| 4-6. | VA640T16371 | [1] | BRACKET ASSY Fr. (FOR M0 ONLY) | |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, Fr. (FOR M0 ONLY) |
| 5. | VA414X10671 | [1] | SCREW SET (FOR M0 ONLY) | |
| 6. | VAS930P30970 | [1] | BEARING (FOR M0 ONLY) | |
| 7-8. | VA880X17071 | [1] | ROTOR SET (FOR M0 ONLY) | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONROTOR (FOR M0 ONLY) |
| 8. | VS930P36070 | [1] | BEARING (FOR M0 ONLY) | |
| 13. | VA381T01771 | [1] | STATOR (FOR M0 ONLY) | |
| 14-19. | VA641T25071 | [1] | BRACKET ASSY Re. (FOR M0 ONLY) | |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, Re. (FOR M0 ONLY) |
| 15A. | VA450X08671 | [1] | TERMINAL SET (FOR M0 ONLY) | |
| 16A. | VA308D00201 | [1] | CONNECTION (FOR M0 ONLY) | |
| 16B. | VAS054S05083 | [1] | SCREW SCREW, P (FOR M0 ONLY) | SCREW SCREW, P (FOR M0 ONLY) |
| 17. | VA414X15171 | [1] | SCREW SET (FOR M0 ONLY) | |
| 19. | VA867T02571 | [1] | RECTIFIER (FOR M0 ONLY) | |
| 20-22. | VA649X90571 | [1] | BRUSH HOLDER SET (FOR M0 ONLY) | |
| 20. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH (FOR M0 ONLY) |
| 21. | A648D01971 | [2] | COMMUTATOR BRUSH | KOBBRUSH (FOR M0 ONLY) |
| 22. | VA389D01901 | [2] | SPRING, BRUSH (FOR M0 ONLY) | |
| 24. | VA315X02071 | [1] | CONDENSER SET (FOR M0 ONLY) | |
| 26. | VA212C09101 | [1] | COVER (FOR M0 ONLY) | |
| 26A. | VAS183S05104 | [2] | BOLT (FOR M0 ONLY) | |
| 26C. | VA834D05301 | [1] | RETAINER (FOR M0 ONLY) | |
| 27. | VA210X91071 | [1] | COVER SET (FOR M0 ONLY) | |
