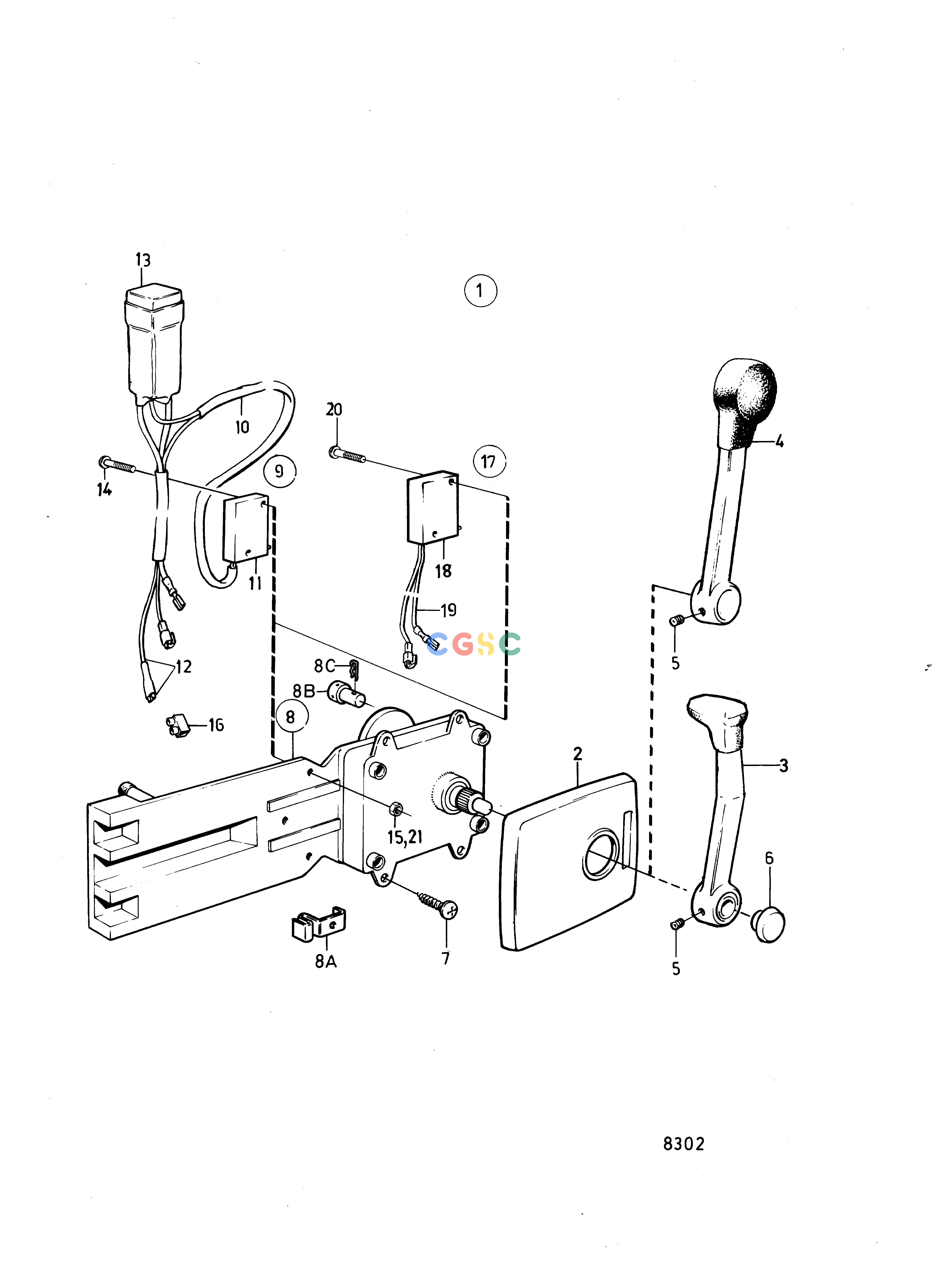

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentControl for Side Mounting: 853102EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853102
|
[1] |
Mounting kit
|
For motor boat.
|
| 2. |
839518
|
[1] |
Cover
|
|
| 3. |
|
|
|
|
| 5. |
963678
|
[1] |
Hex. socket screw
|
|
| 6. |
853004
|
[1] |
Push button
|
|
| 7. |
955142
|
[4] |
Cross recessed screw
|
|
| 8. |
851601
|
[1] |
Control
|
|
| 8A. |
853423
|
[1] |
Retainer
|
|
| 8B. |
839638
|
[2] |
Cube
|
|
| 8C. |
17253
|
[2] |
Split pin
|
|
| 9. |
839641
|
[1] |
Neutral position con
|
Main station.
|
| 10. |
839619
|
[1] |
Cable kit
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
See group 3
|
| 13. |
1501832
|
[1] |
Relay
|
|
| 14. |
946177
|
[2] |
Cross recessed screw
|
|
| 15. |
947536
|
[2] |
Hexagon nut
|
|
| 16. |
|
|
|
|
| 17. |
828414
|
[1] |
Neutral position con
|
Main station.
|
| 17. |
828378
|
[1] |
Contact
|
Second station.
|
| 18. |
850200
|
[1] |
Toggle switch
|
|
| 19. |
|
|
|
See group 3
|
| 20. |
946177
|
[2] |
Cross recessed screw
|
|
| 21. |
947536
|
[2] |
Hexagon nut
|
|
