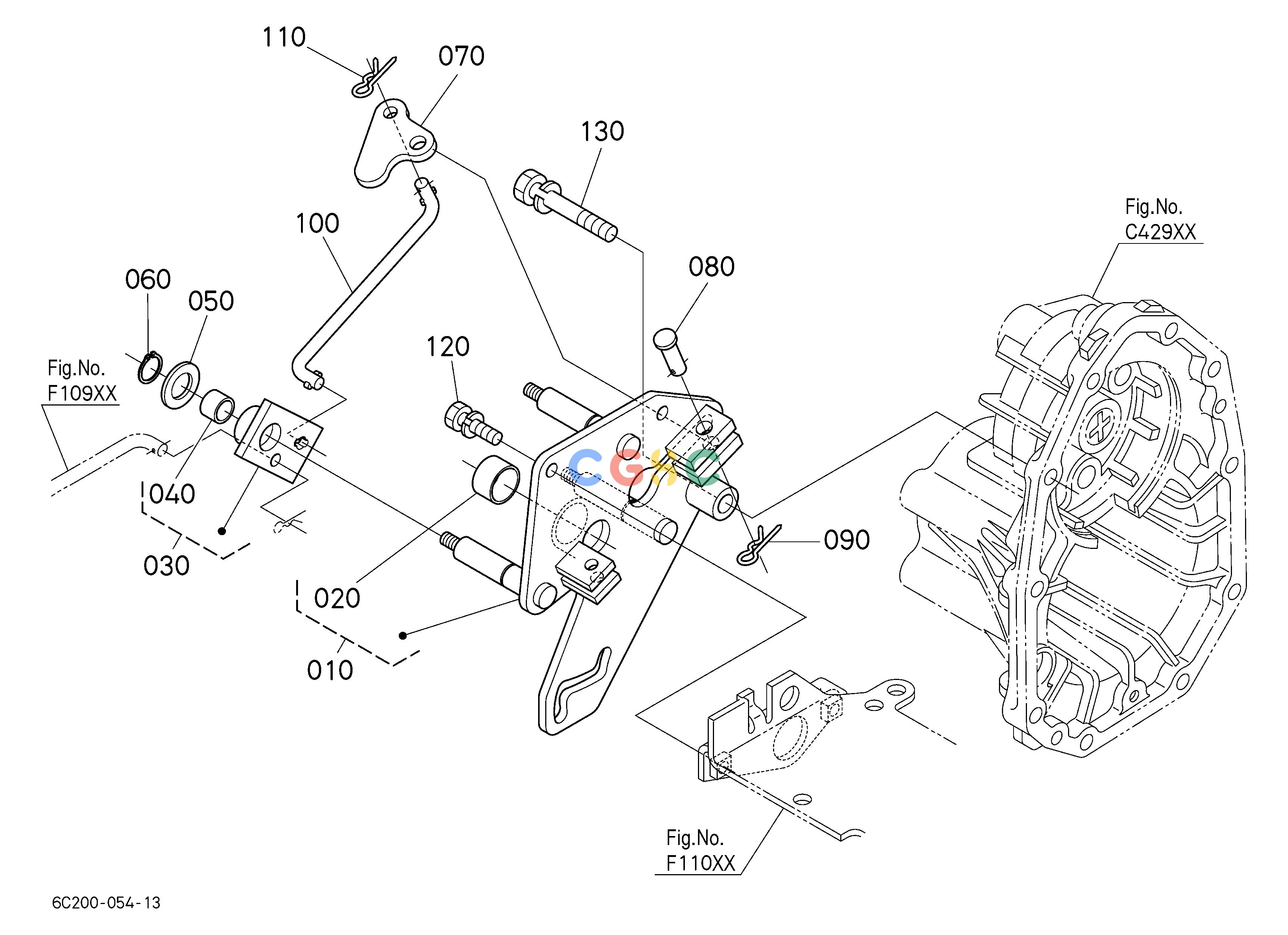

久保田零件查询F10500 CRUISE CONTROL BASE SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20019491
|
[1] |
ASSY BASE
|
0.0000(lbs); 0.000
|
| 010. |
6C20019493
|
[1] |
ASSY BASE
|
3.3440(lbs); 1.520
|
| 020. |
0851102215
|
[1] |
BUSH
|
0.0264(lbs); 0.012
|
| 030. |
6C20019440
|
[1] |
ASSY ARM,RELEASE
|
0.2420(lbs); 0.110
|
| 040. |
0851101510
|
[1] |
BUSH
|
0.0110(lbs); 0.005
|
| 050. |
0401350140
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 060. |
0461200150
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6C20019460
|
[1] |
LEVER,RELEASE
|
0.1540(lbs); 0.070
|
| 080. |
0512251030
|
[1] |
PIN,JOINT
|
0.0440(lbs); 0.020
|
| 090. |
0552551000
|
[1] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 100. |
6C20019470
|
[1] |
ROD,CRUISE RELEASE
|
0.1540(lbs); 0.070
|
| 110. |
0552550800
|
[1] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 120. |
0112350820
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 130. |
0112351065
|
[1] |
BOLT,SEMS
|
0.0880(lbs); 0.040
|
