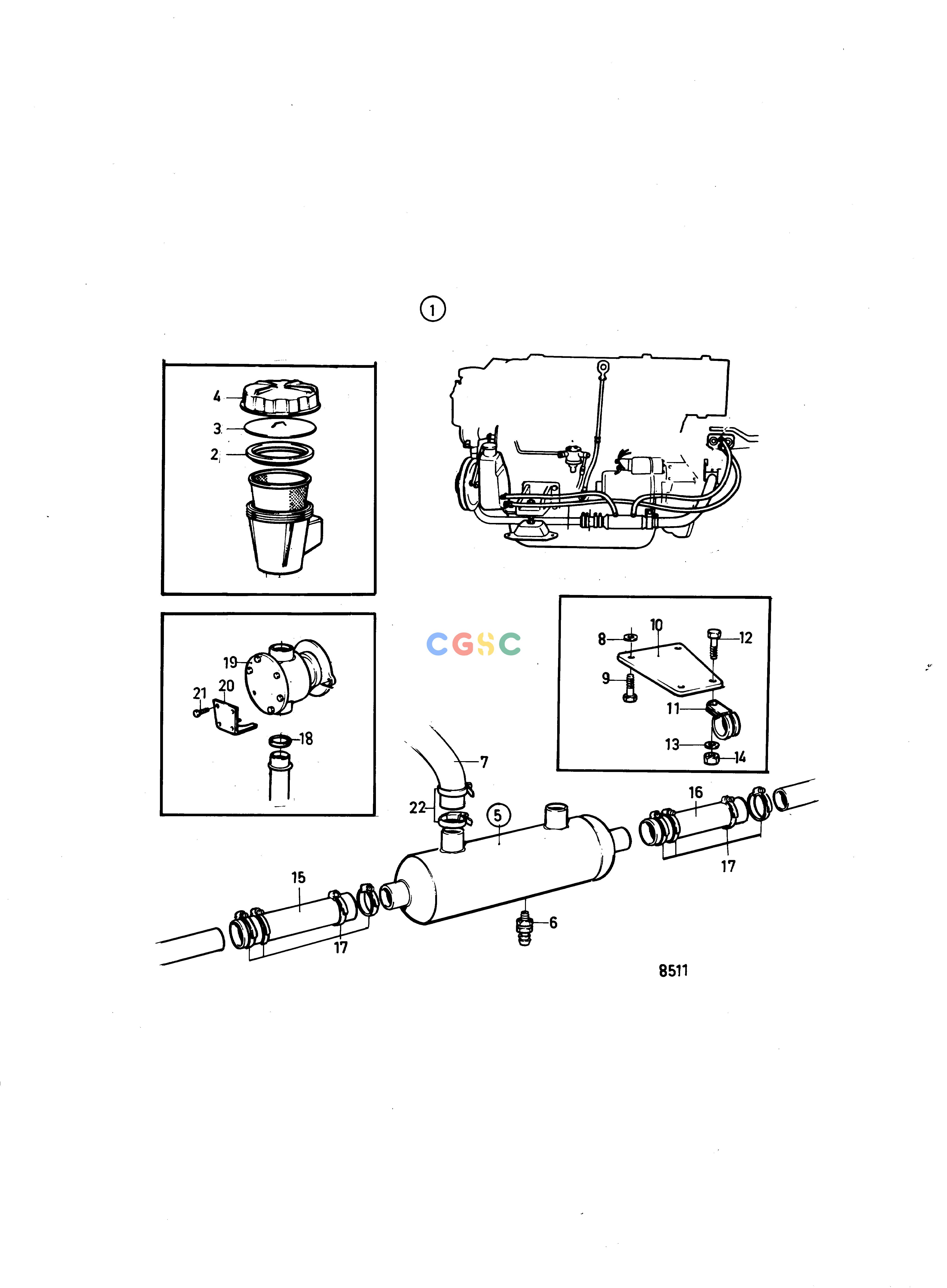

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentConversion Kit Oil CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858547
|
[1] |
Conversion kit
|
For AQAD40 together with drive unit 280
|
| 2. |
838977
|
[1] |
Seal
|
|
| 3. |
22396396
|
[1] |
Pressure plate
|
|
| 4. |
845317
|
[1] |
Cover
|
|
| 5. |
858541
|
[1] |
Oil cooler
|
|
| 6. |
949918
|
[1] |
Shut-off cock
|
|
| 7. |
838311
|
[1] |
Return hose
|
L=1000mm
|
| 8. |
807183
|
[2] |
Spacer sleeve
|
|
| 9. |
945444
|
[2] |
Flange screw
|
|
| 10. |
858542
|
[1] |
Bracket
|
|
| 11. |
952639
|
[2] |
Clamp
|
|
| 12. |
955275
|
[2] |
Hexagon screw
|
|
| 13. |
955892
|
[2] |
Washer
|
|
| 14. |
955781
|
[2] |
Hexagon nut
|
|
| 15. |
949315
|
[1] |
Rubber hose
|
L=110mm
|
| 16. |
949315
|
[1] |
Rubber hose
|
L=90mm
|
| 17. |
994561
|
[8] |
Hose clamp
|
|
| 18. |
845354
|
[1] |
Sealing ring
|
|
| 19. |
|
|
|
See group 2B
|
| 20. |
|
|
|
See group 2B
|
| 21. |
|
|
|
See group 2B
|
| 22. |
|
|
|
|
