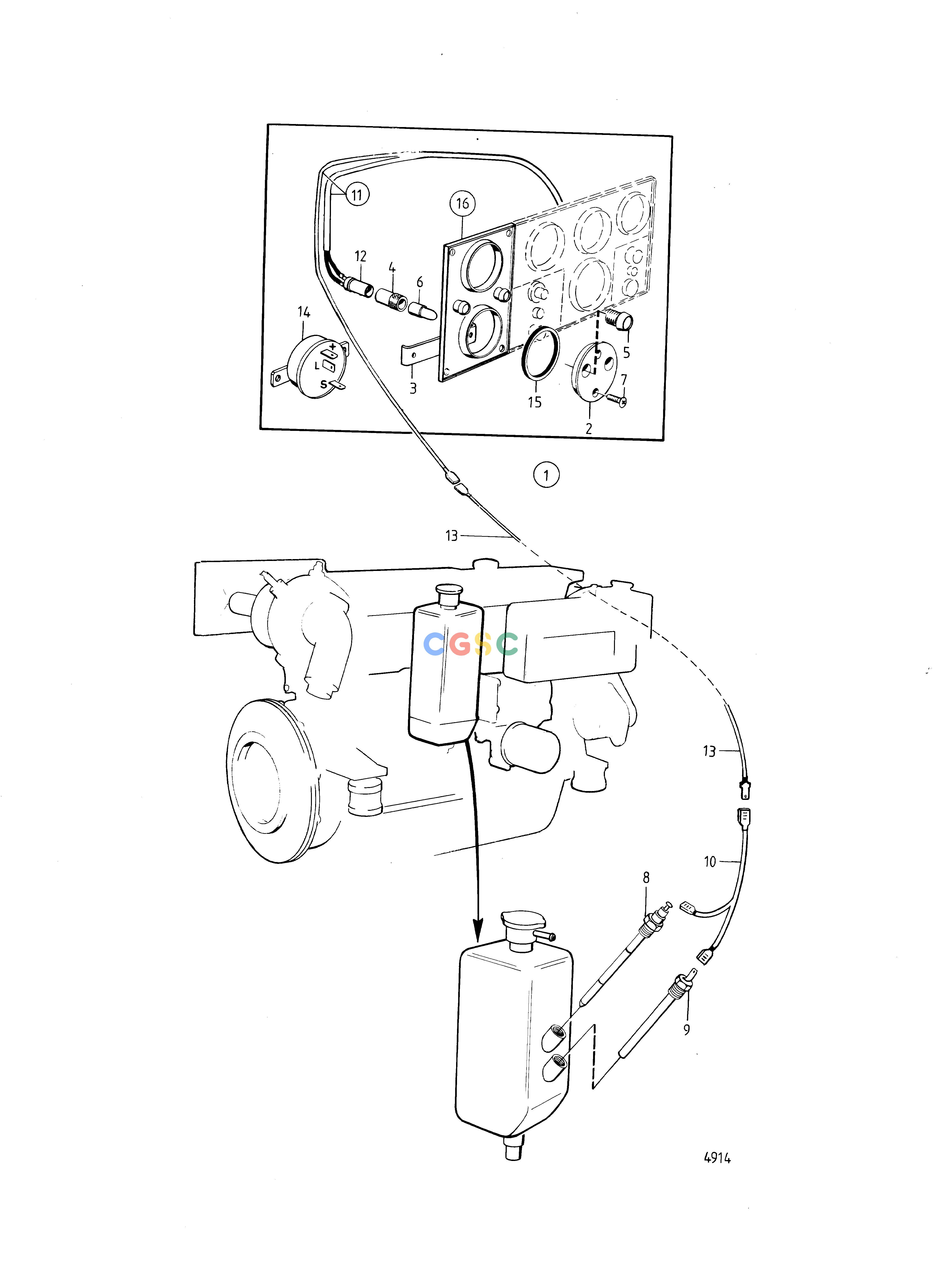

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentCooling Water Level AlarmEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
169 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
843866
|
[1] |
Level guard
|
12V
|
| 2. |
843871
|
[1] |
Cover washer
|
|
| 3. |
843872
|
[1] |
Brace
|
|
| 4. |
819350
|
[2] |
Sleeve
|
|
| 5. |
827766
|
[2] |
Lens
|
|
| 6. |
19923
|
[1] |
Bulb
|
|
| 7. |
944540
|
[2] |
Screw
|
|
| 8. |
352390
|
[1] |
Level indicator
|
|
| 9. |
843884
|
[1] |
Electrode
|
Used when late production of expansion tank is mounted
|
| 10. |
843855
|
[1] |
Cable block
|
|
| 11. |
843854
|
[1] |
Cable block
|
|
| 12. |
808175
|
[1] |
Bulb socket
|
|
| 13. |
|
|
|
|
| 14. |
1501202
|
[1] |
Relay
|
|
| 15. |
843603
|
[1] |
Intermediate ring
|
|
| 16. |
843604
|
[1] |
Instrument panel
|
|
