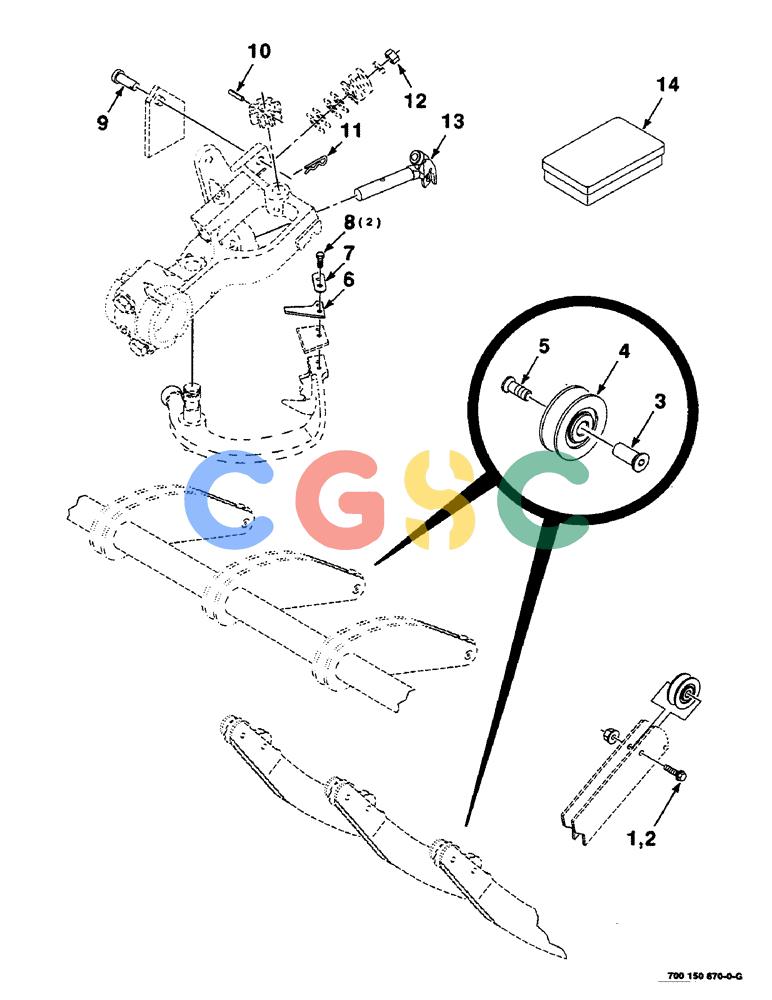

凯斯零件查询(8590) - CASE IH LARGE (4 X 4) RECTANGULAR BALER (NORTH AMERICA) (1/98-12/00) (06-34) - KNOTTER, BOX OF SERVICE PARTS, 700150670 BOX OF SERVICE PARTS COMPLETE, S.N. CFH0139500 AND LATER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700150670
|
[1] |
KIT
|
HFI
BOX OF SERVICE PARTS COMPLETE Superseded by part number: 86637658, 700734489, 700707474, 86509310, S120261, 700718710, 700737442, 6613624, 435-7614, 1703354, 163-14, 9838826, 164-102, 866566
|
| 1. |
163-14
|
[1] |
SCREW,Hex Wshr Hd, 1/4" - 20 x 1"
|
CAS
1/4-20 X 1 HWHMS
|
| 2. |
1703354
|
[1] |
NUT
|
IH
1/4-20 HFTLN GR/G
|
| 3. |
866566
|
[1] |
FASTENER,#10 - 32 x 9/16"
|
CAS
#10-32 FASTENER - special
|
| 4. |
700707700
|
[1] |
BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm
|
CAS
BEARING Superseded by part number: 700737442
|
| 5. |
164-102
|
[1] |
HEX SOC SCREW,FLAT, #10 - 32 x 1/2"
|
CAS
#10-32 X 1/2 HSFCHCS
|
| 6. |
700718710
|
[1] |
KNIFE
|
CAS
- twine
|
| 7. |
6613624
|
[1] |
WASHER, LOCK
|
CAS
TAB - locking
|
| 8. |
163-47
|
[2] |
SCREW,Hex, #10 - 32 x 1/2", Gr 5
|
CAS
Superseded by part number: 86637658
|
| 9. |
063586
|
[1] |
CLEVIS PIN
|
IH
3/8 X 1-1/8 CLEVIS PIN Superseded by part number: 9838826
|
| 10. |
435-7614
|
[1] |
GROOVED PIN,3/16" x 7/8", Type G
|
CAS
Pin, Grooved, 3/16" x 7/8", Type G
|
| 11. |
S120261
|
[1] |
PIN
|
CAS
.149 HAIRPIN COTTER
|
| 12. |
425-116
|
[1] |
NUT,3/8" - 24, Gr 5
|
CAS
Superseded by part number: 86509310, 50066
|
| 13. |
700700968
|
[1] |
KNOTTER
|
CAS
BILL AND HOOK ASSEMBLY Superseded by part number: 700734489
|
| 14. |
700707474
|
[1] |
BOX
|
CAS
- plastic
|
