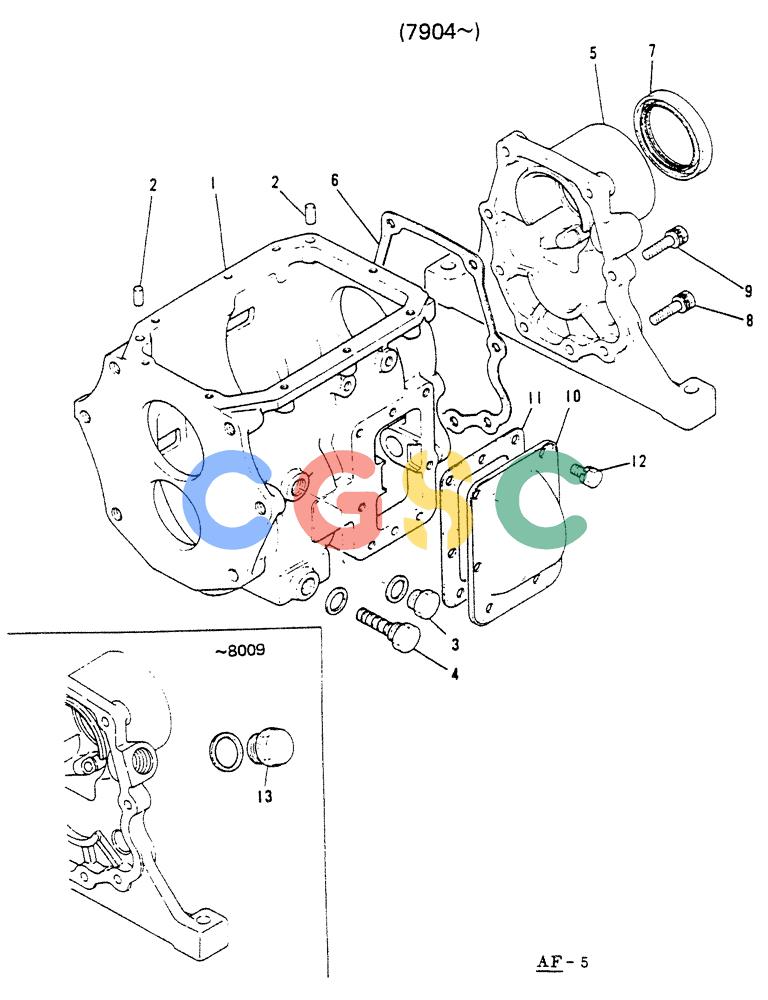

神钢零件查询(65R5P) - MITSUBISHI DIESEL ENGINE - LK300A WHEEL LOADER (1/06-12/06) (14-008) - TRANSMISSION CASE (7904-) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME600551 | [1] | CASE, TRANSMISSION, Start Serial: 8004 | |
| 1. | VAME600550 | [1] | CASE, TRANSMISSION, Start Serial: 8003 | |
| 1. | VA4401450400 | [1] | CASE, TRANSMISSION | |
| 2. | VAMF472405 | [2] | DOWEL | KOBPIN. DOWEL 10X12 (FOR M0 ONLY) Superseded by part number: 132323A1 |
| 3. | VAMF665007 | [1] | SCREW | KOBPLUG, SCREW 20 (FOR M0 ONLY) |
| 3. | VAMH035022 | [1] | GASKET (FOR M0 ONLY) | |
| 4. | VAME624710 | [1] | PLUG, MAGNET (FOR M0 ONLY), Start Serial: 8012 | |
| 4. | VAME623698 | [1] | PLUG, MAGNET, Start Serial: 7909 | |
| 4. | VAME621700 | [1] | PLUG, MAGNET | |
| 4. | VAMH035022 | [1] | GASKET | |
| 5. | VAME600063 | [1] | COVER, REAR FF:SERVICE PART EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINES (FOR M0 ONLY), Start Serial: 8010 | |
| 5. | VA4401493300 | [1] | COVER, REAR FF:SERVICE PART EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINES | |
| 6. | VA4401459101 | [1] | GASKET, REAR CASE FF:SERVICE PART EXCLUSIVELY FOR INDUSTRIAL MACHINERY ENGINES (FOR M0 ONLY) | |
| 7. | VAMF502530 | [1] | OILSEAL (FOR M0 ONLY) | |
| 8. | VAMF303369 | [4] | BOLT | KOBBOLT W/WASHER 10X4 (FOR M0 ONLY) |
| 9. | VAMH000505 | [4] | BOLT (FOR M0 ONLY) | |
| 10. | VAME600338 | [1] | COVER, P T.O. (FOR M0 ONLY), Start Serial: 8008 | |
| 10. | VAME600183 | [1] | COVER, P T.O., Start Serial: 8001 | |
| 10. | VA4401454200 | [1] | COVER, P T.O. | |
| 11. | VA4401459900 | [1] | GASKET, P T.O. COVER (FOR M0 ONLY) | |
| 12. | VAMF300841 | [6] | SCREW | KOBBOLT, W/WASHER 10X20 (FOR M0 ONLY), Start Serial: 8008 Superseded by part number: 132461A1 |
| 13. | VA3007608802 | [1] | PLUG PLUG, Serial Range: -8009 | PLUG PLUG, Serial Range: -8009 |
| 13. | VAMF660041 | [1] | GASKET 27 (FOR M0 ONLY), Serial Range: -8009 | |
